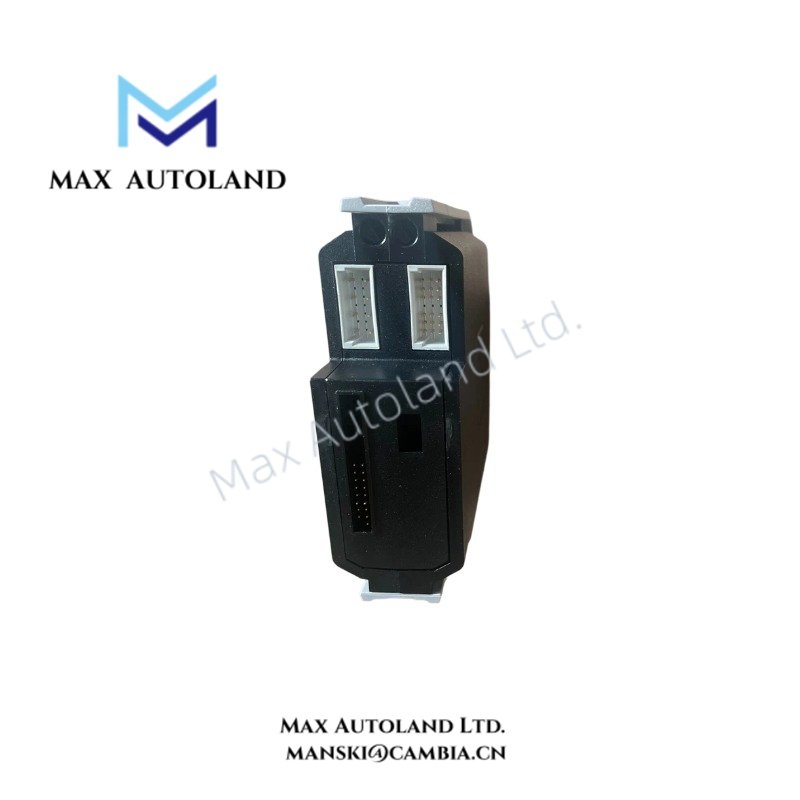

Overview

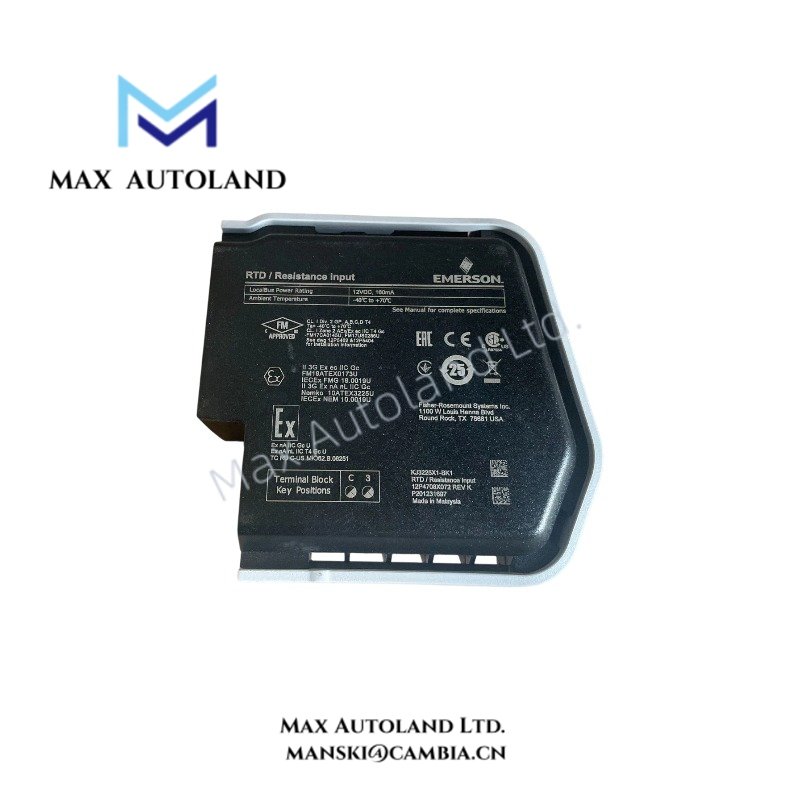

Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3225X1-BK1 |
| Alternative Model | SE4003S6B1 |
| Brand | Emerson DeltaV |
| Product Type | 8-Channel RTD and Resistance Input Module |
| Origin | USA |
| Weight | Not specified |
| Dimensions | Not specified |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power 12 VDC at 160 mA |
| Product Series | DeltaV S-Series Traditional I/O |
| Input Channels | 8 channels |
| Input Type | RTD and resistance signals |
| Mounting Compatibility | DeltaV S-Series horizontal carriers |
| Controller Compatibility | DeltaV SQ and SX controllers |
| Relative Humidity | 5% to 95% non-condensing |
| Storage Temperature | -40 deg C to +85 deg C |
| Airborne Contaminant Protection | ISA-S71.04-1985 Class G3 conformal coating |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Hazardous Area Certification | ATEX and Zone 2 compliant |

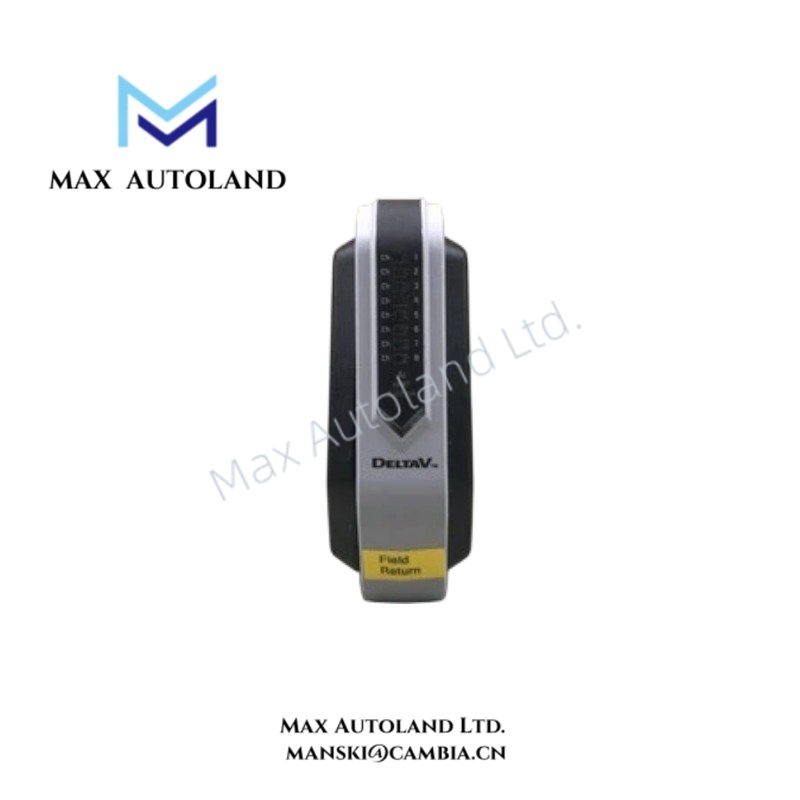

Process Instrument Signal Handling and Isolation
The Emerson DeltaV KJ3225X1-BK1 processes resistance-based field measurements through dedicated RTD input channels. The module supports temperature measurement loops where sensor resistance varies with process temperature. Furthermore, the DeltaV I/O architecture applies channel-to-channel isolation methods to reduce electrical interference between field circuits.
The module operates within the DeltaV S-Series Traditional I/O framework and transfers processed input values through the local bus communication path. Additionally, the design supports cold junction compensation (CJC) related measurement architectures when integrated with compatible temperature input configurations.
Frequently Asked Questions
Q: How many field input channels are available on the KJ3225X1-BK1 module?
A: The KJ3225X1-BK1 provides 8 input channels for RTD and resistance measurement signals.
Q: Can the module be replaced without removing field wiring?
A: The module supports keyed terminal block installation, allowing card replacement without disconnecting field wiring from the terminal block. Field power must be removed before module insertion or removal.
Q: What type of carrier system is required for installation?
A: The KJ3225X1-BK1 is installed on Emerson DeltaV S-Series horizontal carriers and communicates through the DeltaV local bus.
Field Installation Guidelines
- Install the module on the specified DeltaV S-Series horizontal carrier before connecting field wiring.
- Verify terminal block keying before inserting the I/O card to prevent incorrect hardware matching.
- Route RTD and resistance signal cables separately from high-voltage power wiring to reduce electrical noise coupling.
- Apply proper shield grounding practices according to the plant instrumentation grounding standard.
- Confirm field power isolation before removing or installing the module.
- Check terminal connections and sensor wiring polarity before commissioning input measurements.
- Verify controller recognition and local bus communication status after installation.
