Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

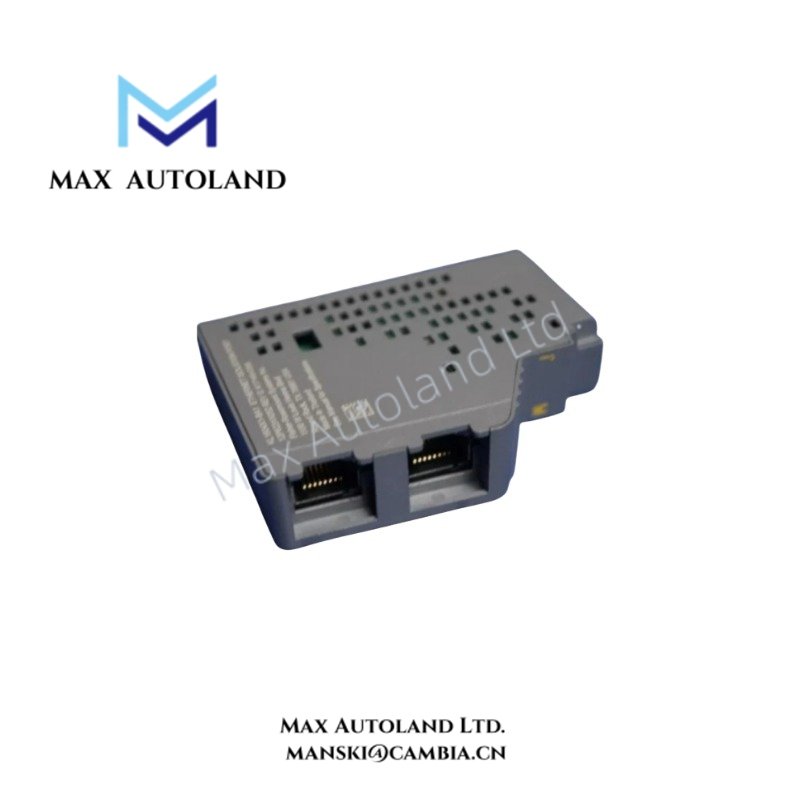

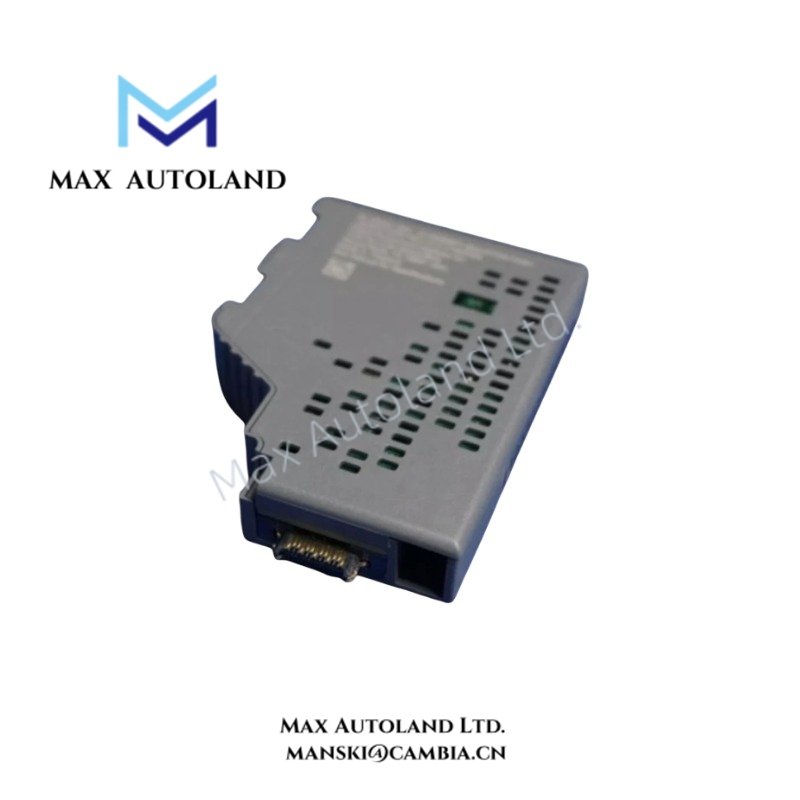

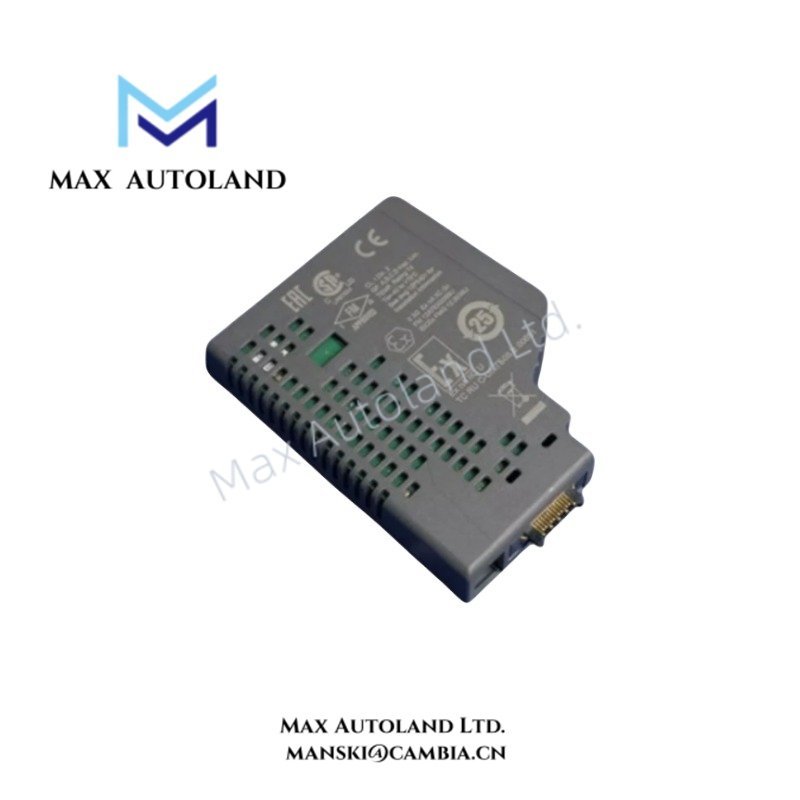

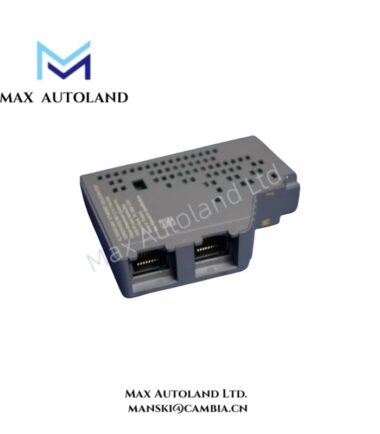

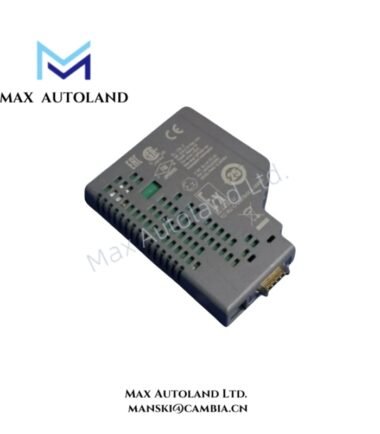

| Model | KL1604X1-BA1 |
| Brand | Emerson |
| Product Series | DeltaV Distributed Control System |
| Device Type | Safety Isolation Port (Copper) |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temperature | -40 deg C to +85 deg C |
| Power Consumption | Not specified in available documentation |
| Isolation Voltage | 2500 V RMS nominal |
| Data Transfer Rate | Up to 100 Mbps |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Certifications | CE, ATEX, IECEx, CSA dependent on configuration |
Emerson DeltaV Isolation and Process Network Characteristics
The KL1604X1-BA1 provides copper-based electrical isolation for DeltaV communication interfaces. It separates signal reference paths and reduces the influence of ground potential differences, transient disturbances, and common-mode electrical noise.
For Emerson DeltaV installations, the isolation function supports channel-to-channel isolation practices used in process control networks. The module maintains physical separation between connected segments while preserving Ethernet communication performance.
The device is applied with DeltaV hardware architectures where controlled signal routing and network protection are required. Additionally, installation practices should maintain proper shielding and grounding methods to prevent unwanted coupling between field wiring and communication circuits.
Frequently Asked Questions
Q: Does the KL1604X1-BA1 provide optical Ethernet conversion?
A: No. The KL1604X1-BA1 is specified as a copper Safety Isolation Port. It provides electrical isolation for copper communication paths.
Q: Can the module eliminate all electrical interference in a DeltaV network?
A: No. The module reduces electrical coupling effects related to grounding differences and transient conditions. Proper cable routing, shielding, and grounding remain required.
Q: Is hot-swap operation supported for the KL1604X1-BA1?
A: Available documentation does not specify hot-swap limitations. Installation should follow the DeltaV hardware maintenance procedures for the applicable carrier and system configuration.
Field Installation Guidelines
- Install the KL1604X1-BA1 according to Emerson DeltaV system hardware installation procedures.
- Verify that the mounting carrier and power interface match the approved DeltaV configuration.
- Route copper communication cables separately from high-voltage power wiring and variable-frequency drive cables.
- Connect cable shields according to the site grounding standard to reduce electromagnetic interference.
- Avoid creating additional ground loops through redundant shield connections.
- Confirm connector seating and mechanical retention before system startup.
- Validate network communication after installation through DeltaV diagnostic tools.
