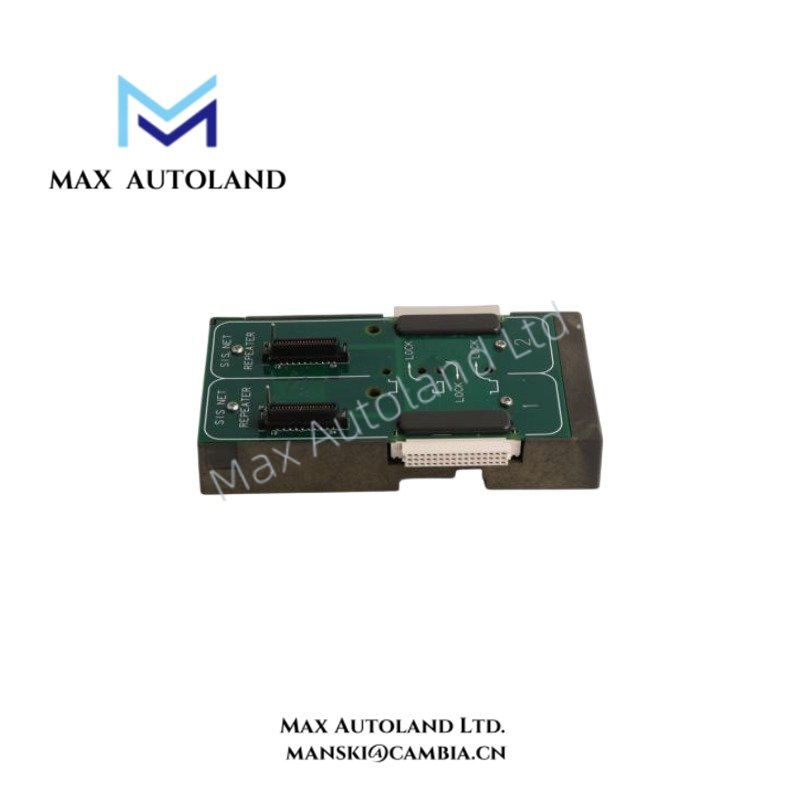

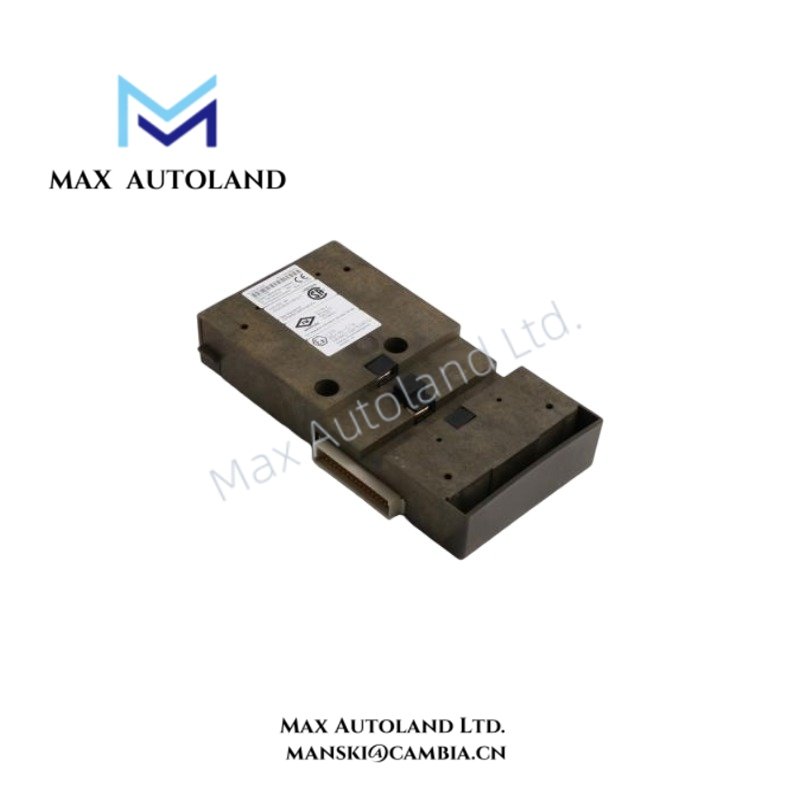

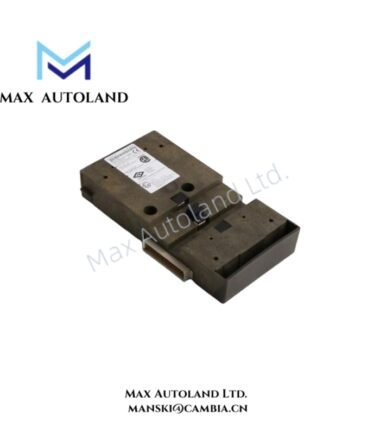

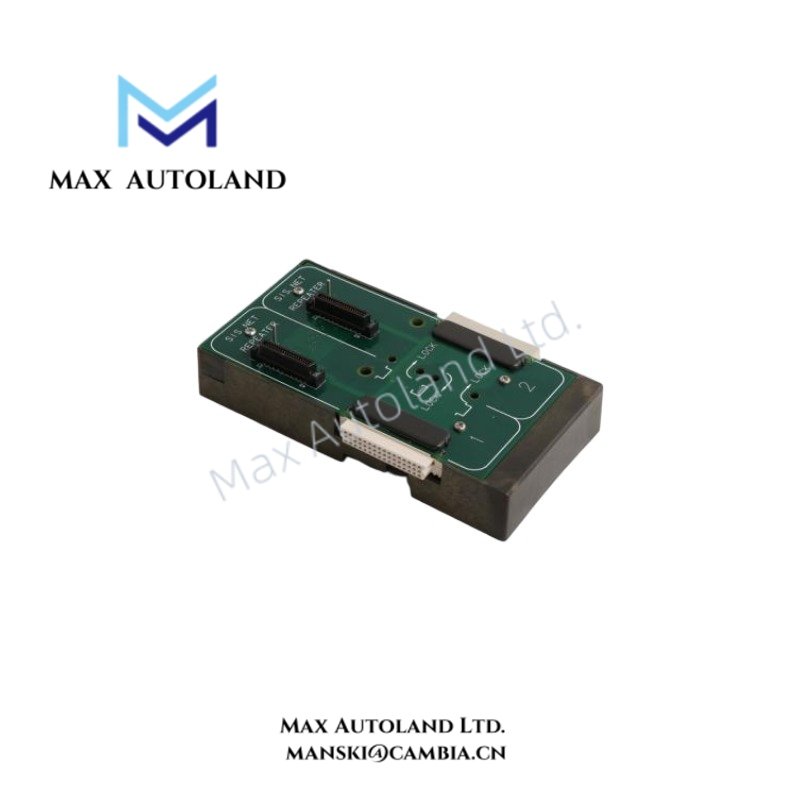

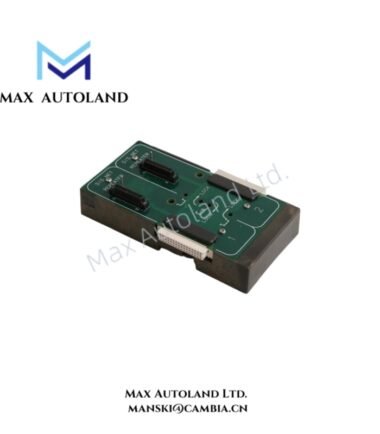

KJ2221X1-EA1 Emerson SISNet Repeater Carrier

Hardware Specifications

SISNet Communication and Safety System Integration

The Emerson KJ2221X1-EA1 provides carrier functionality for SISNet repeater modules installed in DeltaV SIS environments. It supports local bus power distribution and mechanical integration of SIS communication components.

Furthermore, the carrier maintains the physical infrastructure required for SISNet repeater operation, including power connection, module mounting, and communication pathway support. The unit is designed for hazardous area installation under specified Ex ec protection requirements.

The module does not perform process signal measurement or control execution. Instead, it provides the hardware interface required for SIS communication equipment deployment.

Frequently Asked Questions

Q: Can the KJ2221X1-EA1 be removed while system power is active?
A: No. The unit must not be removed or inserted with energized system power unless the installation area is confirmed as non-hazardous. Power must be de-energized before disconnecting carriers or LocalBus Extender cables.

Q: Does the KJ2221X1-EA1 require calibration or field adjustment?
A: No. The carrier contains no user serviceable parts and does not require calibration. Disassembly is not permitted during normal maintenance activities.

Q: What environmental conditions are supported by this carrier?
A: The unit operates within -40 deg C to +70 deg C ambient temperature and supports 5 to 95% relative humidity without condensation.

Field Installation Guidelines

Install the KJ2221X1-EA1 according to Emerson DeltaV hazardous area installation procedures. Refer to document 12P2046 “DeltaV Scalable Process System Zone 2 Installation Instructions” and the DeltaV M-Series Hardware Installation and Reference manual.

Verify that the product label matches the required certification markings before installation. Maintain proper separation between hazardous area wiring and non-hazardous circuits according to site electrical standards.

Before connecting or disconnecting LocalBus Extender cables, remove system power and confirm the work area classification. Install the carrier with correct mechanical alignment to ensure proper module seating and backplane connection.

Route communication and power wiring to minimize electrical interference. Follow approved grounding and shielding practices for industrial control system installations.
