Overview

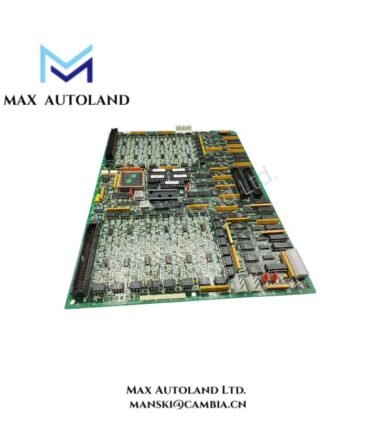

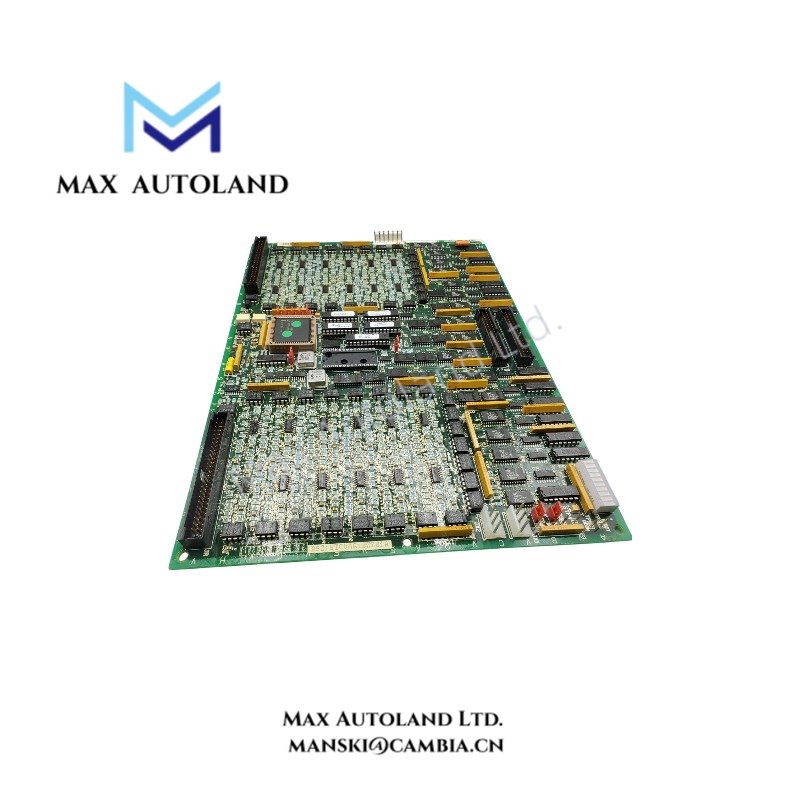

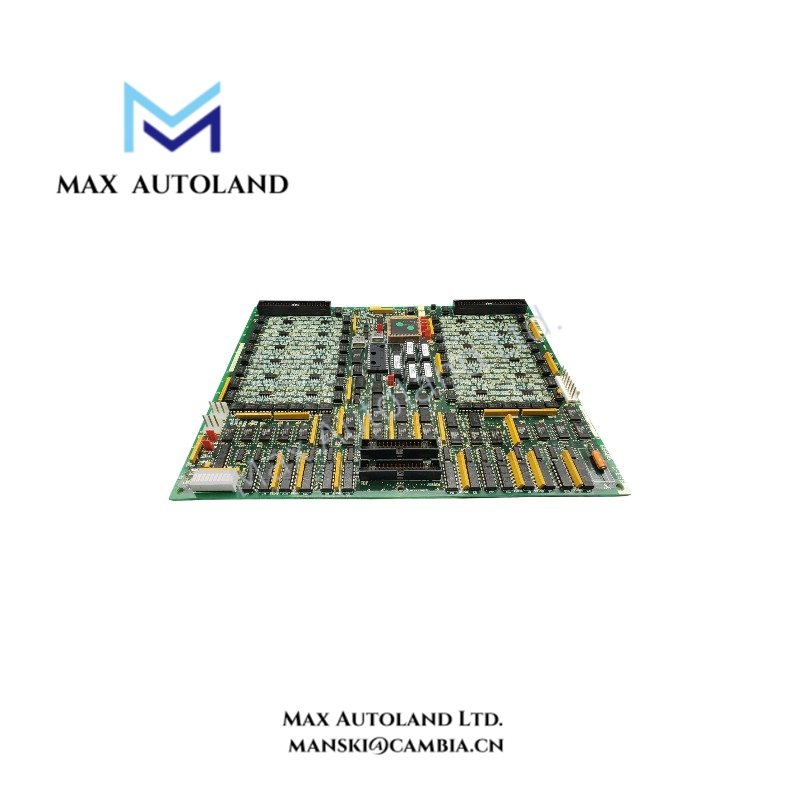

The GE DS200TCDAH1BHJE, based on the DS200TCDAH1B model designation, is identified in the supplied description as a Digital I/O Board for the GE Speedtronic Mark V turbine control system. It handles discrete signal interfaces between control hardware and external circuits. The exact channel configuration, processor type, connector assignment, and electrical ratings require confirmation against the board label or manufacturer documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCDAH1BHJE |
| Base Model | DS200TCDAH1B |
| Brand | General Electric (GE) |
| Series | Speedtronic Mark V |
| Board Type | Digital I/O Board |
| Origin | USA |
| Signal Function | Digital input/output signal handling |
| Digital Output Channels | 64 channels claimed in the supplied description |
| Processor | Intel 80196 claimed in the supplied description |
| Memory | PROM modules claimed in the supplied description |
| Connectors | Multiple connectors claimed; exact types and pin assignments require verification |
| Backplane Interface | Mark V rack interface |
Backplane Communication and Digital Signal Interfaces
The DS200TCDAH1BHJE is described as a discrete signal interface board within the GE Mark V control architecture. Its installation and operation depend on the correct rack position, connector mapping, and compatibility with the associated control hardware.
For board replacement, technicians should verify the complete part number and revision suffix. They should also compare connector locations, terminal assignments, and board configuration with the existing hardware. Do not assume that all DS200TCDAH1B variants share identical electrical characteristics or firmware compatibility.
Frequently Asked Questions
Q: Can the DS200TCDAH1BHJE be replaced directly with another DS200TCDAH1B variant?
A: Not without compatibility verification. Confirm the complete part number, revision, connector layout, board configuration, and application requirements before installing a substitute.
Q: What power supply does the board require?
A: The supplied description mentions internal rack power rails and +5 VDC logic power. However, it does not establish the complete power requirements or current consumption. Check the applicable GE Mark V documentation before connecting the board.
Q: Does the DS200TCDAH1BHJE support hot swapping?
A: Hot-swap capability is not established by the supplied information. Follow the system-specific GE maintenance procedure and isolate power as required before removing or installing the board.
Field Installation Guidelines
- Verify identification: Check the board label for the complete DS200TCDAH1BHJE part number and revision.
- Isolate the equipment: Follow the approved turbine control system shutdown and electrical isolation procedure before removing the board.
- Inspect connectors: Check connector contacts, mating headers, and board edges for contamination, corrosion, or mechanical damage.
- Confirm wiring: Match all signal connections to the applicable Mark V drawings. Do not rely solely on connector appearance or family-level part numbers.
- Control ESD: Use an approved electrostatic discharge wrist strap and grounded work surface when handling the circuit board.
- Check grounding and shielding: Maintain the cabinet grounding arrangement and follow the system wiring drawings for signal cable shield termination.
- Verify operation: After installation, perform the approved diagnostic checks and confirm discrete input and output states before returning the equipment to service.
