Overview

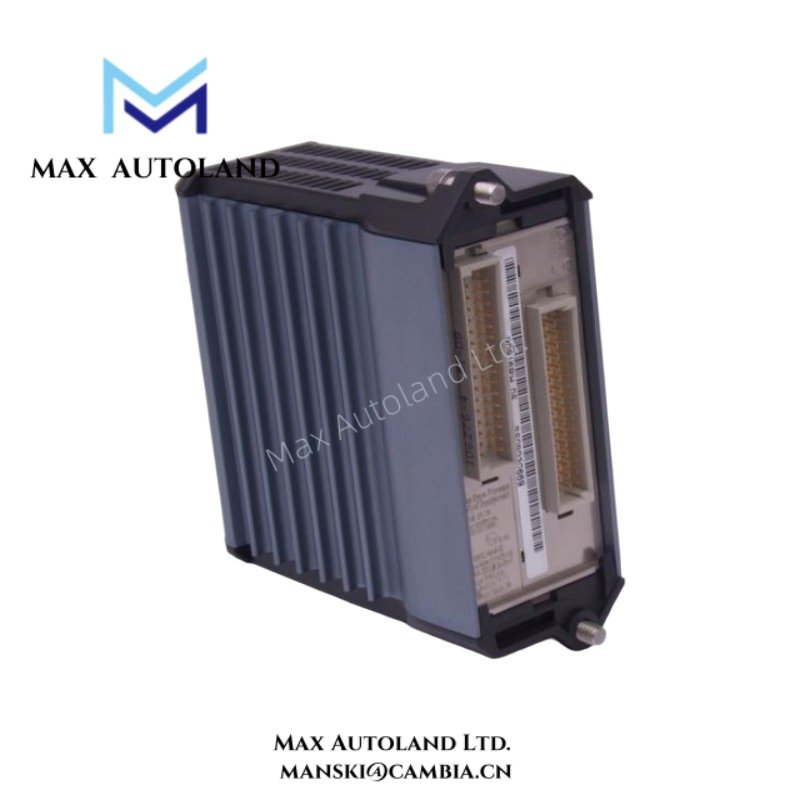

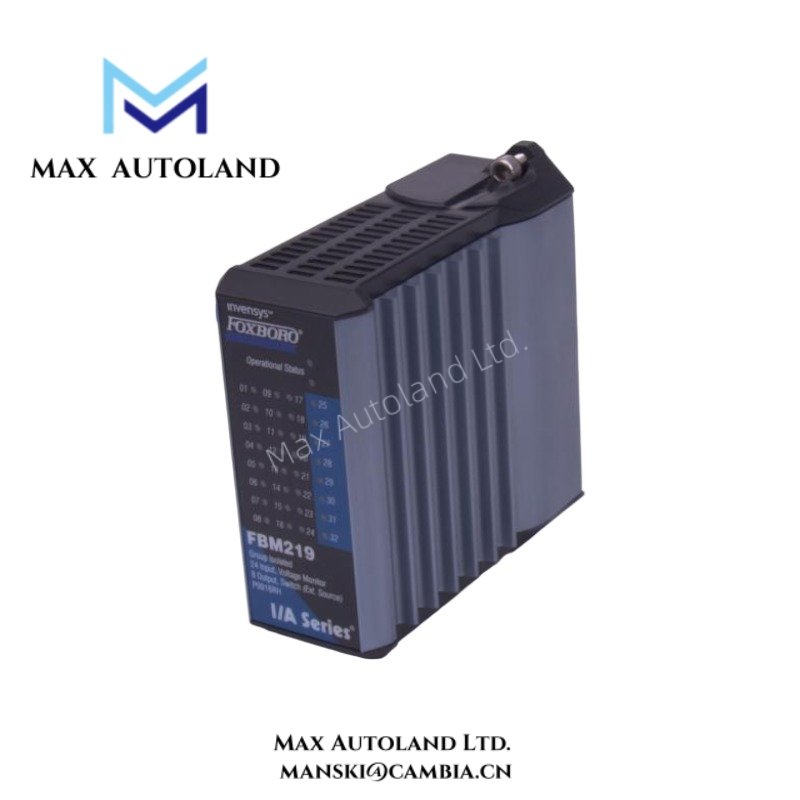

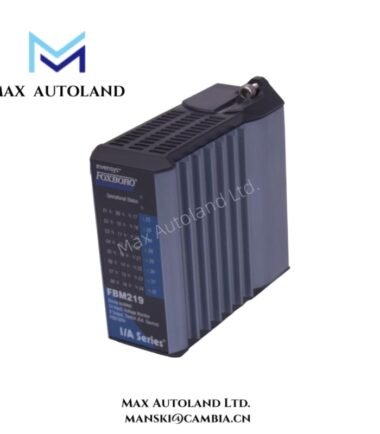

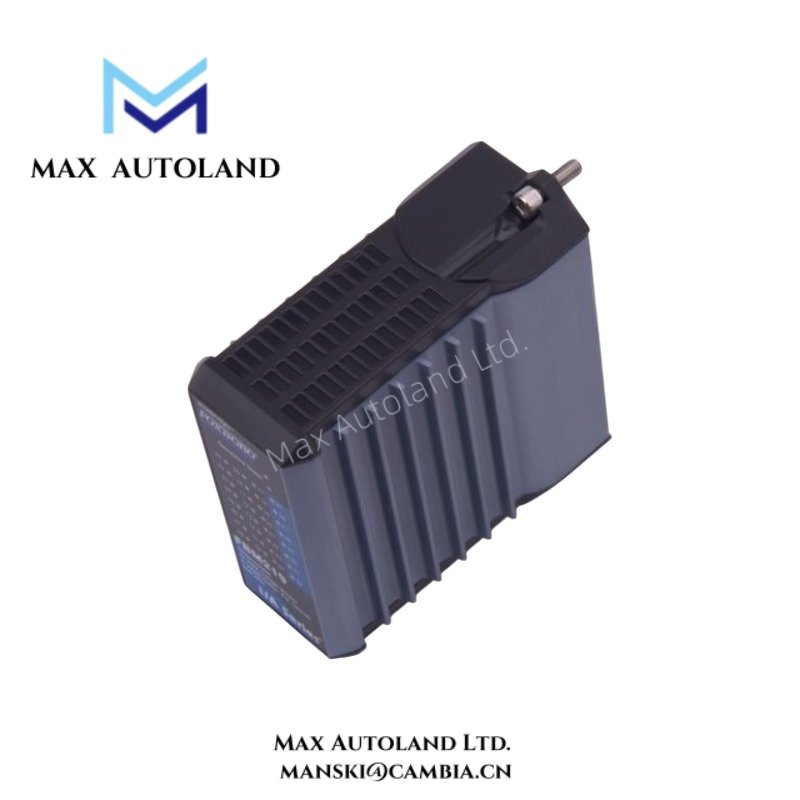

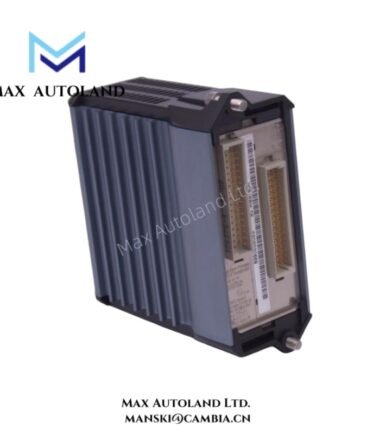

The FBM219 discrete I/O interface module delivers reliable signal switching for Foxboro I/A Series control systems.
It manages discrete input and output signals efficiently while maintaining stable operation in industrial automation environments.
Moreover, FBM219 integrates with modular baseplates, which allows flexible installation and system expansion options.
Its compact and rugged structure improves cabinet utilization while supporting long-term industrial performance requirements.
Specification
| Parameter | Specification |
|---|---|
| Model | FBM219 |
| Manufacturer | Foxboro (Schneider Electric) |
| Series | I/A Series 200 |
| Module Type | Discrete I/O Interface Module |
| Mounting (Module) | Baseplate or 100 Series conversion structure |
| Mounting (Baseplate) | DIN rail (horizontal/vertical) or 19-inch rack |
| Mounting (TA) | DIN rail (32 mm and 35 mm supported) |
| Weight (Module) | Approx. 284 g (10 oz) |
| Weight (TA Compression) | 420 g / 480 g / 908 g depending on size |
| Dimensions (Height) | 102 mm (4 in), 114 mm (4.5 in with lugs) |
| Dimensions (Width) | 45 mm (1.75 in) |
| Dimensions (Depth) | 104 mm (4.11 in) |
| Module Part Number | P0916RH |
| Cable Length | Up to 30 m (98 ft) |
| Cable Material | Polyurethane or LSZH |
| Cable Type (Baseplate to TA) | Type 4 or Type 4H |
| Cable Type (TA Expansion) | Type 6 |
| Connector Type | 37-pin D-sub (baseplate), 25-pin D-sub (TA) |
| TA Material | Polypropylene (PVC), compression |
| Wiring Type | Compression or ring lug |
| Wiring Size (Compression) | 0.2 to 4 mm² / 24 to 12 AWG |
| Wiring Size (Ferrules) | 0.2 to 2.5 mm² with or without collar |
| Wiring Size (Ring Lug) | 0.5 to 4 mm² / 22 to 12 AWG |
| Relay Type | SPST Normally Open |
| Relay Switching Current | 5 A up to 120 VAC |
| Relay Electrical Life | 100,000 operations (rated load), 5,000,000 operations (no load) |
FAQ
Q1: What type of signals does FBM219 handle?
The FBM219 handles discrete input and output signals for industrial automation control systems.
Q2: What relay capacity does FBM219 provide?
The FBM219 supports relay switching up to 5 A at 120 VAC for various load applications.
Q3: What cable types are compatible with FBM219?
The FBM219 supports Type 4, Type 4H, and Type 6 cables for flexible system configuration.
Q4: What is the delivery and stock status?
This product is brand new and original, and we have stock available for immediate shipment.
Q5: How fast can shipping be arranged?
We usually ship within 3 days to 2 weeks, depending on order size and logistics such as DHL.
Q6: What happens if there is a quality issue?
We support returns within 30 days if any quality issue appears after delivery.
