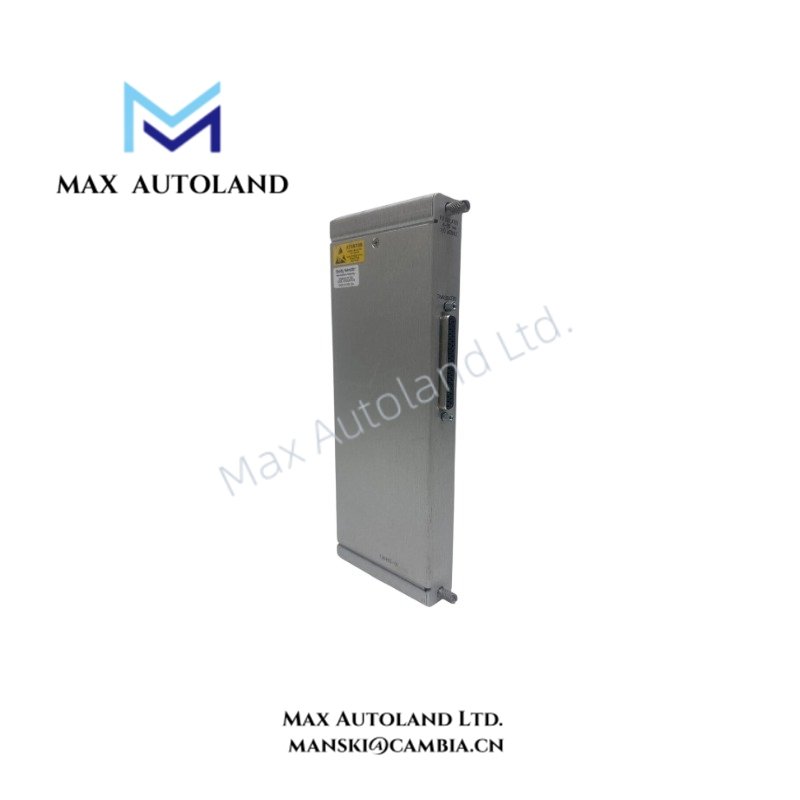

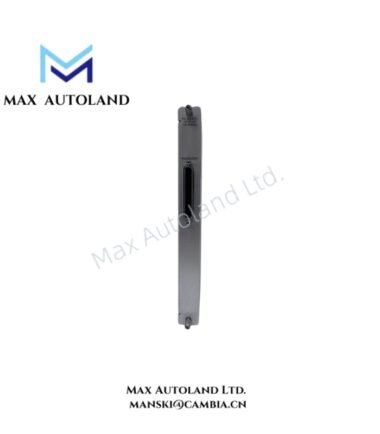

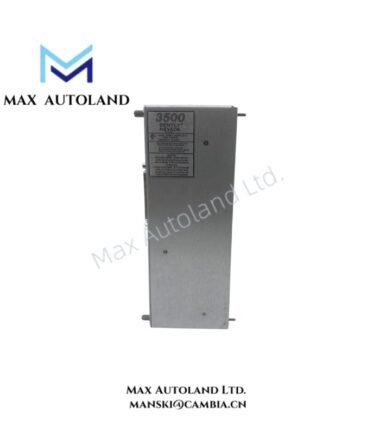

Bently Nevada 136483-01 Isolated Current Input Module

Hardware Specifications

Isolated Current Signal Interface

The 136483-01 uses an isolated current-input arrangement for 4-20 mA DC field signals. The 500 V isolation rating separates the input interface from the associated monitoring circuitry according to the specified I/O construction.

The external termination configuration must be matched with the corresponding field-wiring components. Internal termination versions are not interchangeable solely because they use the same 4-20 mA signal range.

Frequently Asked Questions

Q: What field signal does the 136483-01 accept?
A: It accepts a 4-20 mA DC current signal through an isolated input interface.

Q: Is the 136483-01 intended for internal or external field termination?
A: This version uses external field terminations. The termination arrangement must match the installed I/O hardware.

Q: What monitor is specified for the 136483-01?
A: The supplied data identifies the Bently Nevada 3500/62 Process Variable Monitor as the compatible monitor.

Field Installation Guidelines

• Install the module in the specified full-height rear slot of the compatible rack assembly.
• Verify that the installed monitor and I/O configuration are compatible with the 136483-01.
• Use the appropriate external termination components for this I/O version.
• Confirm field polarity and 4-20 mA loop wiring before energizing the circuit.
• Keep current-signal wiring separated from high-voltage and high-current conductors where practical.
• Route shielded signal cables according to the site grounding standard and avoid creating unintended ground loops.
• Verify the complete signal path from the field transmitter through the external termination to the process-variable monitor.
• Do not substitute an internal-termination or voltage-input version without checking the complete rack and field-wiring configuration.
