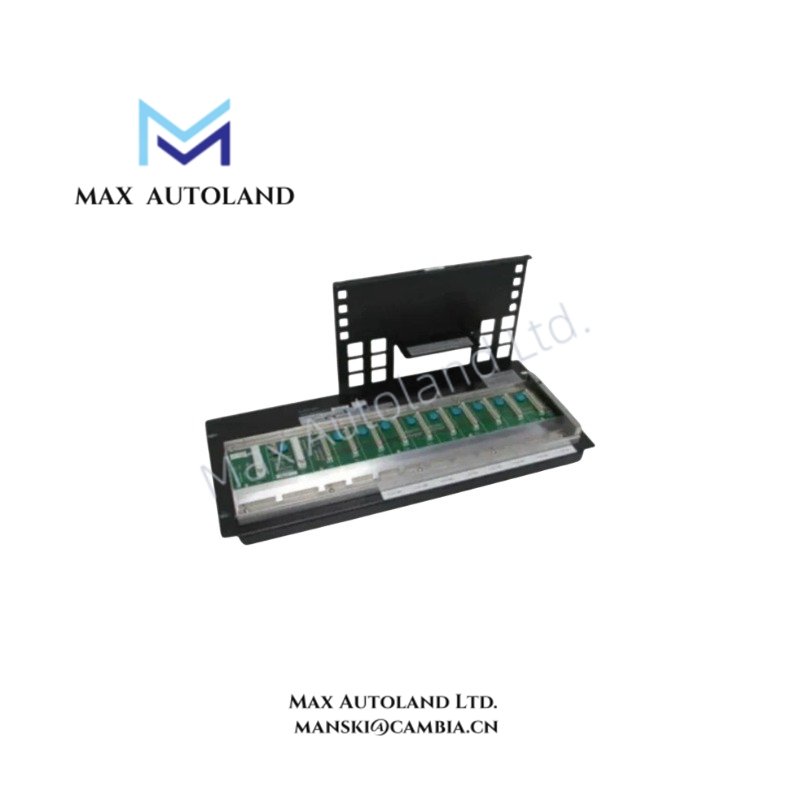

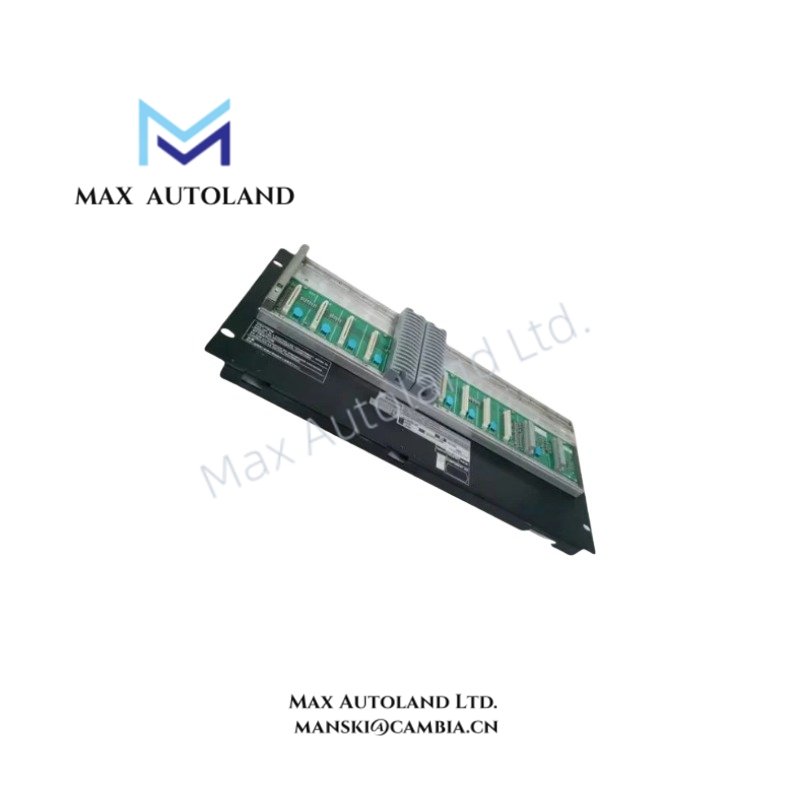

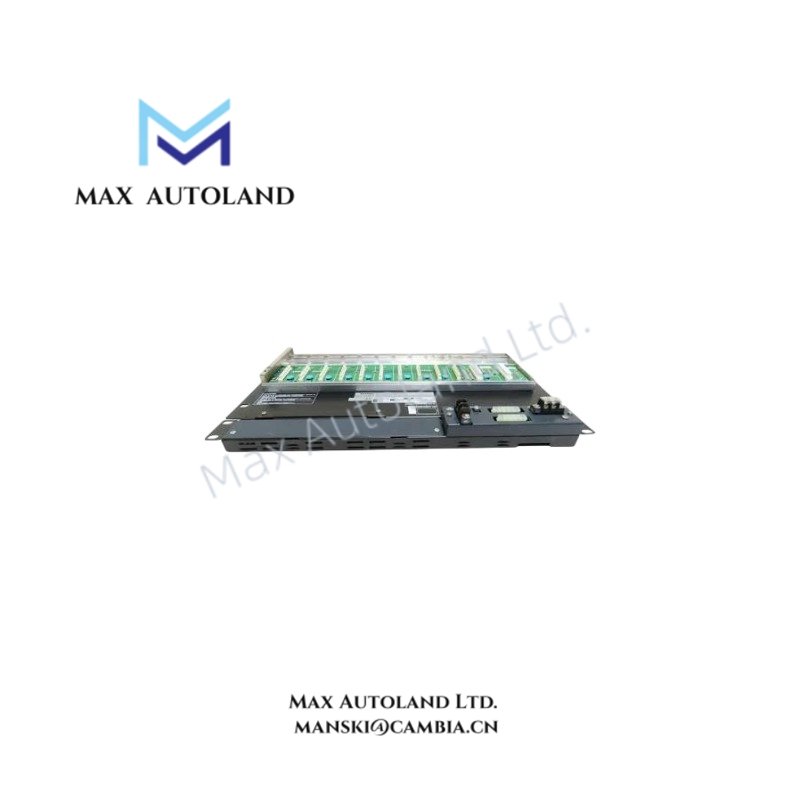

AFV10D-S41201 Yokogawa Duplexed Field Control Unit

Suffix Breakdown & Model Matrix

• AFV10D: Duplexed Field Control Unit for Vnet/IP and FIO, 19-inch rack mountable
• S: Standard type configuration
• 4: Dual-redundant Vnet/IP communication + dual-redundant power supply
• 1: 100–120 VAC power supply option
• 2: 220–240 VAC power supply option (alternative region variant)
• 0: Basic configuration class
• 1: LFS1500 control function enabled for Field Control Station operation

Hardware Specifications

Channel-to-Channel Isolation and Fieldbus Execution Profile

Within Yokogawa Vnet/IP control topology, the AFV10D-S41201 implements segregated execution paths between redundant CP451 processor modules and ESB bus coupler interfaces (EC401). Dual-slot EC401 configuration (Slot 7 and 8) enforces physical separation of communication lanes, reducing cross-channel electrical interference during node synchronization cycles. Field I/O execution is coordinated under deterministic scan scheduling, maintaining stable 4-20 mA loop acquisition integrity and supporting HART-compatible device communication across distributed field segments.

Frequently Asked Questions

Q: Can CP451 processor modules be hot-swapped in redundant configuration?
A: CP451 modules operate in paired redundancy mode. Module replacement requires controlled shutdown or maintenance bypass depending on system configuration state.

Q: What is the maximum backplane load for ESB bus node expansion?
A: The system supports up to 14 nodes total, with ESB node limitation of 9 units depending on LFS1500 capacity allocation and license expansion.

Q: Does EC401 require specific slot placement rules?
A: Yes. Slot 7 and Slot 8 placement is mandatory in redundant configuration to maintain dual-channel bus separation.

Field Installation Guidelines

Install the AFV10D-S41201 in a standard 19-inch industrial rack with forced-air ventilation clearance according to system enclosure requirements. Ensure redundant power feeds are isolated prior to termination. ESB bus coupler modules (EC401) must be installed strictly in Slot 7 and Slot 8; deviation from slot assignment may interrupt Vnet/IP synchronization cycles.

Shielded twisted pair cabling must be grounded at a single-point earth reference to prevent ground loop formation across Vnet/IP communication layers. Maintain minimum bend radius compliance for fieldbus cables and separate power wiring from communication lanes to reduce electromagnetic coupling.
