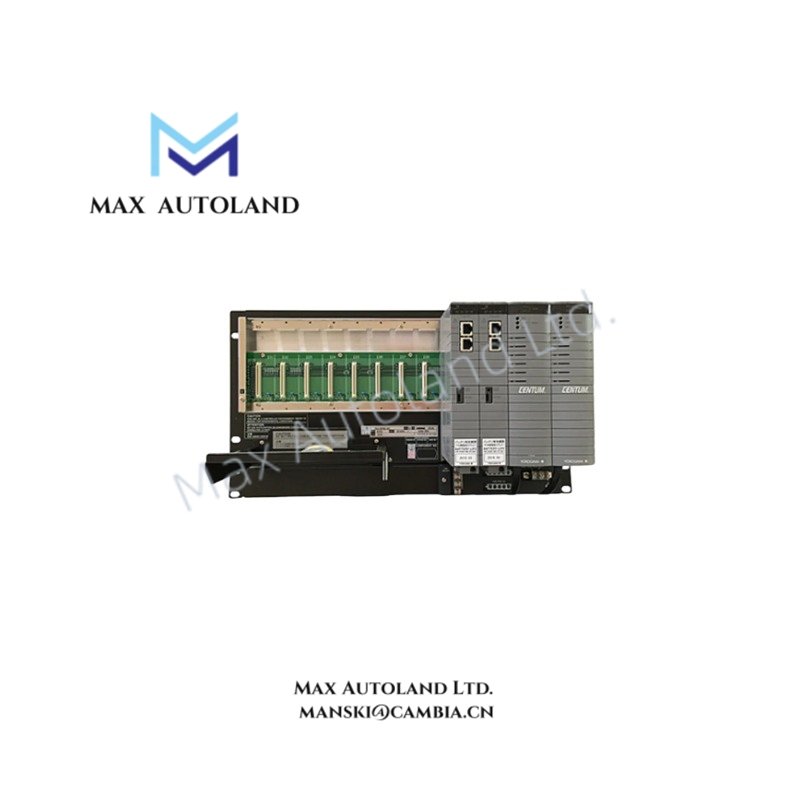

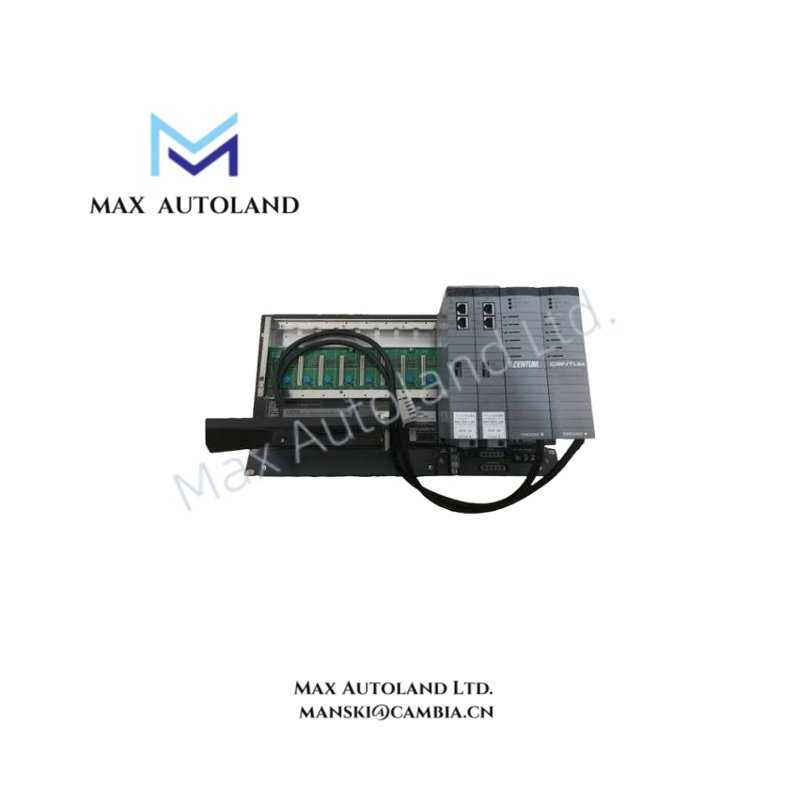

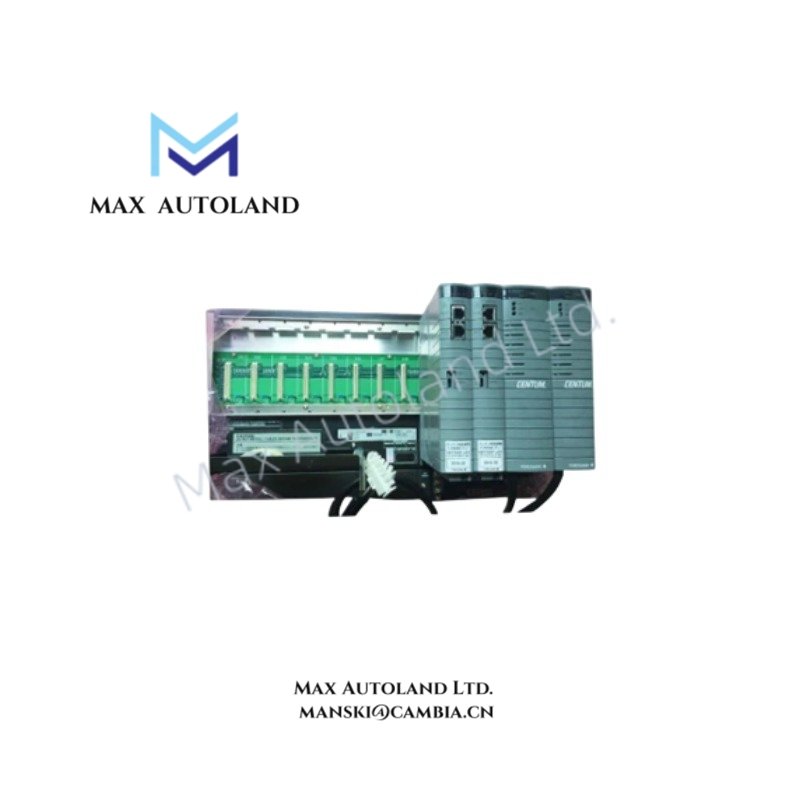

Yokogawa AFV30S-S41151 CENTUM VP Field Control Unit

Suffix Breakdown & Model Matrix

Hardware Specifications

Process Control Integration and Fieldbus Connectivity

The field control unit establishes deterministic communication parameters across the distributed architecture, enabling direct processing of 4-20 mA HART loop protocol variables and digital fieldbus networks. Analog and digital input signals undergo field-side scanning before conversion into system data variables, maintaining strict subsystem synchronicity over the dual-redundant Vnet/IP infrastructure. This interface topology isolates execution logic from electrical disturbances via physical separation and channel-to-channel isolation parameters within the external input/output nodes.

Frequently Asked Questions

Q: What are the installation requirements for the ESB Bus Coupler Module (EC401) in a dual-redundant processor configuration?

A: For dual-redundant processor module execution, the EC401 modules must be populated in both slot 7 and slot 8. If a single configuration is utilized instead, the EC401 is placed exclusively in slot 7 while slot 8 remains unpopulated.

Q: How does the node limitation change based on the control function license?

A: The base LFS1500 control function accommodates up to 3 nodes. Expansion up to the maximum physical capacity of 14 nodes requires the integration of the LFS1550 Application Capacity Expansion Package along with a Node Unit Expansion License (Option code: /NDEL) for each additional unit.

Field Installation Guidelines

• Mechanical Mounting: Secure the chassis into a standard 19-inch rack framework utilizing 8x M5 mounting screws. Ensure the supplied isolation bushes are positioned correctly to electrically isolate the housing from the rack frame.
• Wiring Terminations: Power supply lines, system grounding points, and error contact outputs require M4 screw terminal connections. Torque all connections to standard structural specifications to prevent thermal deviations.
• Network Cable Management: Use Unshielded Twisted Pair (UTP) cables rated CAT5e or superior to establish links between the processor modules and the designated Layer 2 network switches. Ensure dual-redundant paths are routed through separated channels to prevent concurrent mechanical damage.
