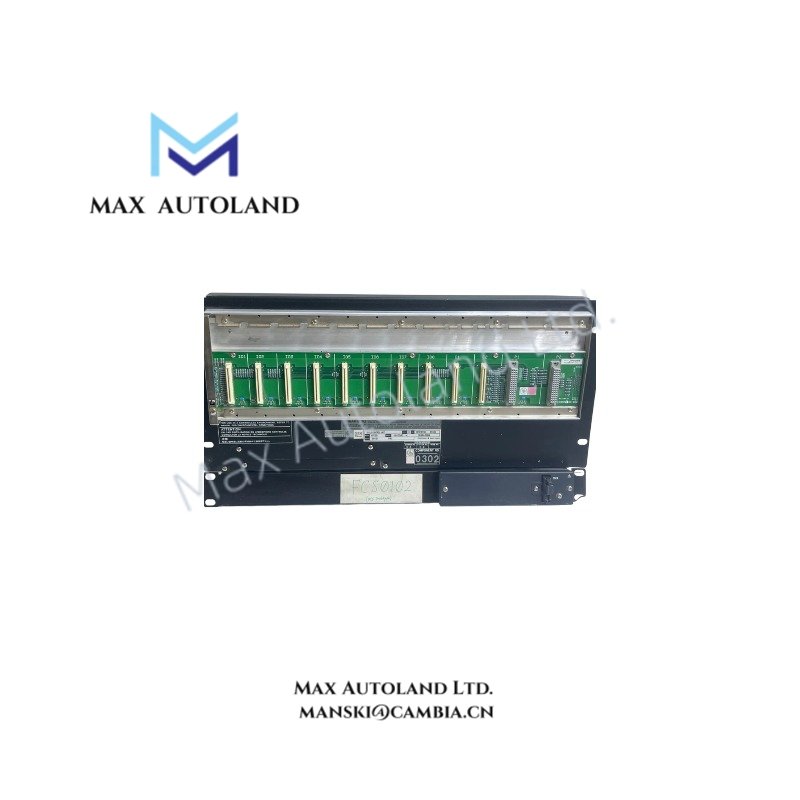

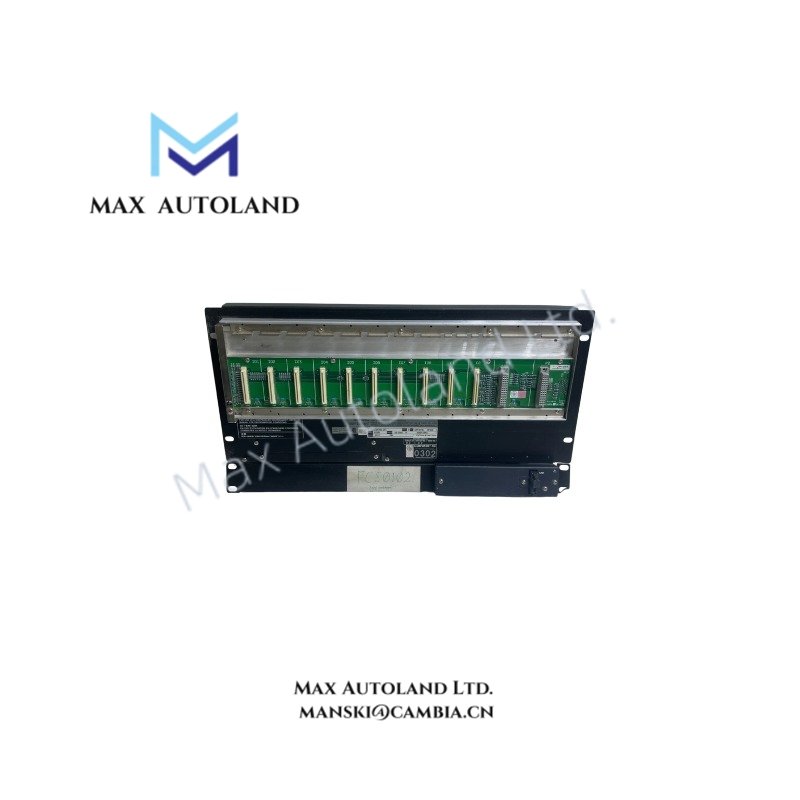

Overview
Suffix Breakdown & Model Matrix
The supplied documentation identifies the following model configuration elements.
| Item | Description |
|---|---|
| Base Model | AFV30D |
| Product Type | Duplexed Field Control Unit |
| Mounting | 19-inch rack mount |
| Controller Platform | CENTUM VP |
| Network | Vnet/IP with FIO |
| Processor Option | CP471 or CP461 (two identical modules required for redundancy) |
| Power Supply Options | 100-120 VAC, 220-240 VAC, or 24 VDC |
| Power Configuration | Dual-redundant |
| HKU Option | /HKU available |
| Marine Option | /MRN available |
| Explosion Protection Documentation | /ATDOC option |

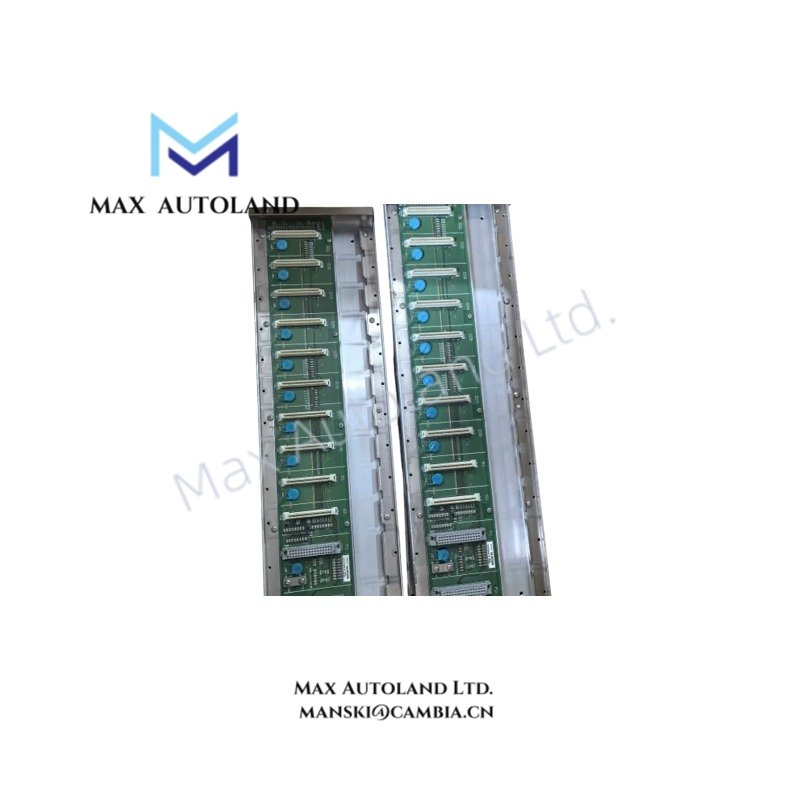

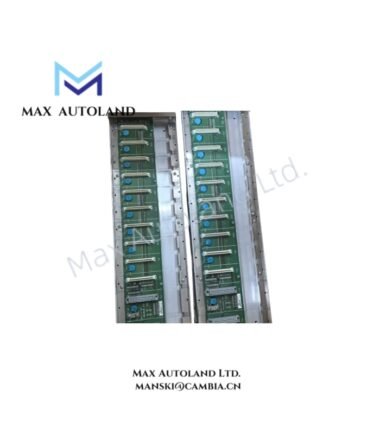

Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AFV30D-A41152 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | Approx. 8.0 kg (AFV30D) |
| Product Type | Duplexed Field Control Unit |
| Mounting | 19-inch rack |
| Communication Interface | Dual-redundant Vnet/IP |
| HKU Interface | Optional |
| Maximum Node Units | 13 ESB Bus or Optical ESB Bus Node Units |
| Processor Modules | 2 x CP471 or 2 x CP461 in dual-redundant configuration |
| Power Supply Modules | 2 x PW481, PW482, or PW484 |
| I/O Modules | Up to 8 |
| Memory Backup | Battery-backed main memory |
| Backup Duration | Maximum 72 hours |
| Battery Recharge Time | Minimum 48 hours |
| Supported Input Power | 100-120 VAC, 220-240 VAC, or 24 VDC |
Channel-to-Channel Isolation and Process Signal Integration
Within the CENTUM VP platform, field instrumentation commonly interfaces through isolated I/O channels to reduce electrical interference between independent process loops. The AFV30D communicates with remote FIO hardware over dual-redundant Vnet/IP while supporting distributed field control architecture. When integrated with analog instrumentation, signal isolation assists in maintaining independent measurement paths for standard industrial process signals, including 4-20 mA instrumentation loops where applicable to the connected I/O modules.
Frequently Asked Questions
Q: Can processor redundancy be created by installing different processor module types?
A: No. The dual-redundant configuration requires two processor modules with the same model code, either two CP471 modules or two CP461 modules.
Q: How many ESB Bus Node Units can be connected to one AFV30D?
A: A maximum of 13 ESB Bus Node Units (ANB10) and Optical ESB Bus Node Units (ANB11) combined can be connected to one FCU.
Q: What happens if external power is lost?
A: The internal battery backs up the main memory for up to 72 hours. A minimum recharge period of 48 hours is specified to restore battery capacity.
Field Installation Guidelines
- Install the unit in a compatible 19-inch control cabinet using the specified rack mounting hardware.
- Use two identical processor modules when configuring controller redundancy.
- Install dual power supply modules to maintain the intended redundant architecture.
- Route communication cables separately from high-voltage power wiring to minimize electromagnetic coupling.
- Terminate cable shields according to the control cabinet grounding practice specified for the installation.
- Verify the configured input voltage matches the installed power supply module before energizing the controller.
- When the HKU interface option is installed, confirm proper connection to the HK bus before system commissioning.
