Overview

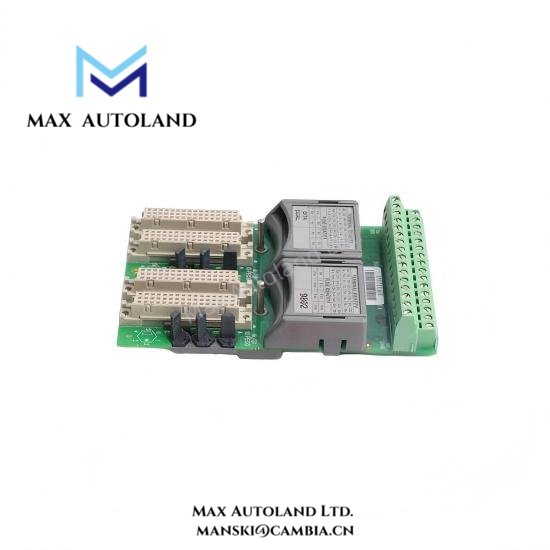

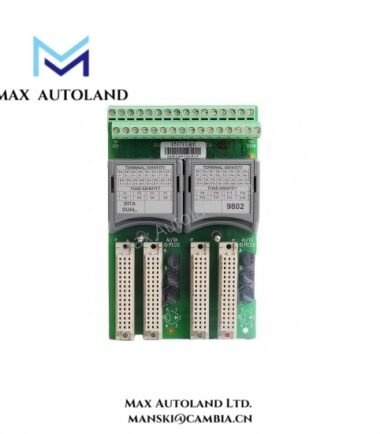

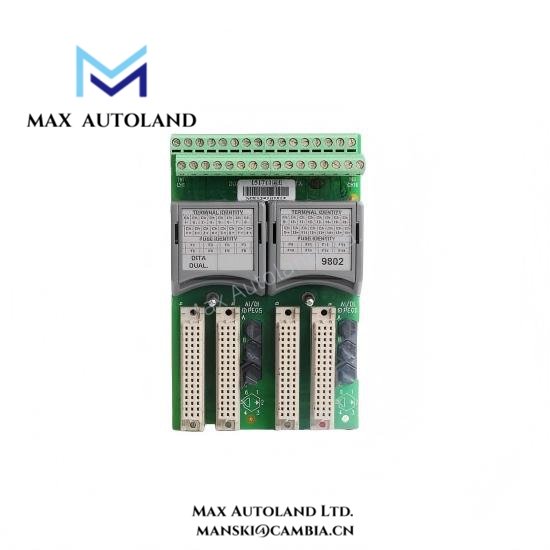

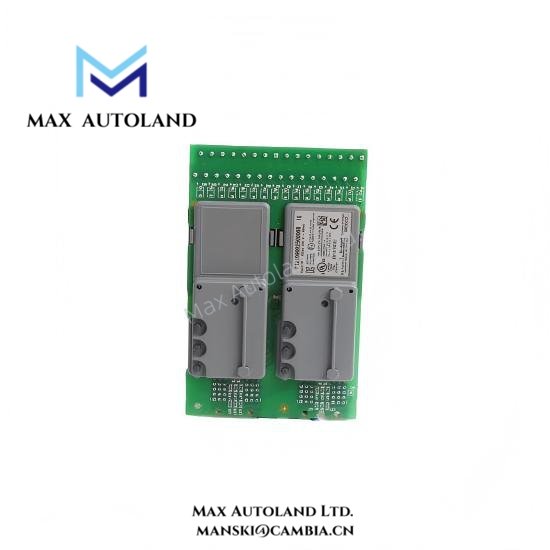

The 9802 Triconex Digital Input Module provides reliable signal acquisition for industrial safety and control systems. It collects discrete signals from field devices such as switches, relays, and proximity sensors. Additionally, the module converts these signals into stable digital data for ICS Triplex controller processing.
Furthermore, the 9802 integrates directly with Triconex and ICS Triplex safety platforms through a high-density backplane connector. The module supports high-speed signal scanning and maintains stable performance during continuous industrial operation. Durable components and industrial-grade circuit design allow the module to operate reliably under vibration, temperature variation, and electrical noise.
Specification
| Parameter | Specification |
|---|---|
| Model | 9802 |
| Manufacturer | Triconex / ICS Triplex |
| Product Type | Digital Input Module |
| Input Channels | 32 isolated digital input channels |
| Input Voltage Range | 18–32 VDC typical industrial input |
| Input Current | 5–8 mA per channel typical |
| Signal Type | Dry contact or voltage input |
| Response Time | <5 ms signal detection |
| Isolation | 1500–2500 V galvanic isolation between field inputs and logic circuits |
| Interface Connection | High-density backplane connector for ICS Triplex racks |
| Internal Components | Opto-isolators, signal conditioning circuits, protection resistors, filtering capacitors |
| Energy Storage | Integrated decoupling capacitors stabilize transient power conditions |
| Power Supply | Backplane supplied power from controller chassis |
| Power Consumption | Approx. 3–4 W typical |
| Dimensions | Approx. 235 mm × 160 mm × 35 mm |
| Weight | Approx. 1.2 kg |
| Operating Temperature | -20°C to 70°C industrial operating range |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Mounting | Rack-mounted module for ICS Triplex control systems |
FAQ
Q1: Is the 9802 digital input module new and original?
Yes. Every 9802 module we supply is brand new and original factory equipment.
Q2: Do you have the 9802 module in stock?
Yes. Our warehouse currently stocks the 9802 module for immediate order processing.
Q3: How long does shipping usually take?
We ship orders within 3 days to 2 weeks depending on order size and preparation requirements.
Q4: Which logistics companies handle delivery?
We usually arrange international shipping through DHL, FedEx, UPS, and other reliable global logistics providers.
Q5: What input signal types does the 9802 module support?
The 9802 module accepts standard industrial digital signals including dry contact inputs and 24 VDC logic signals.
Q6: What happens if the module arrives with a quality issue?
If any quality issue occurs, we support product returns or replacement within 30 days after delivery.
