Overview

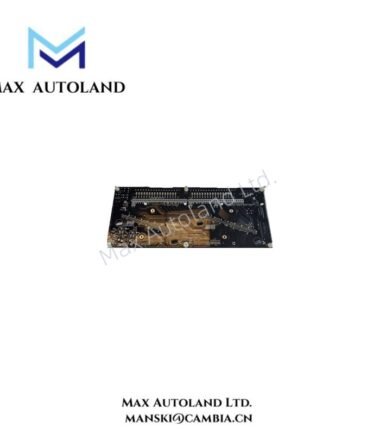

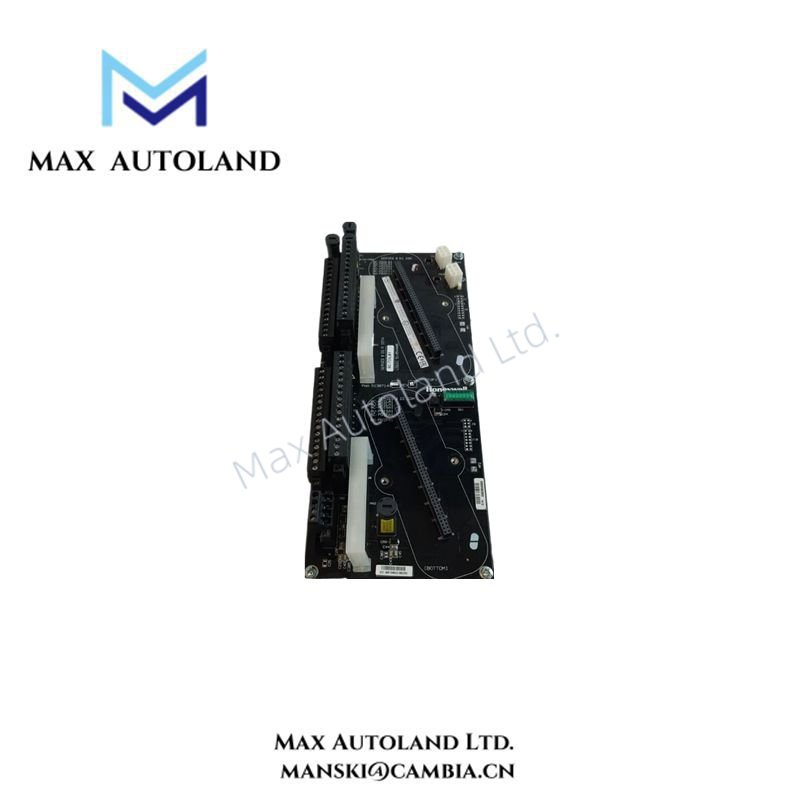

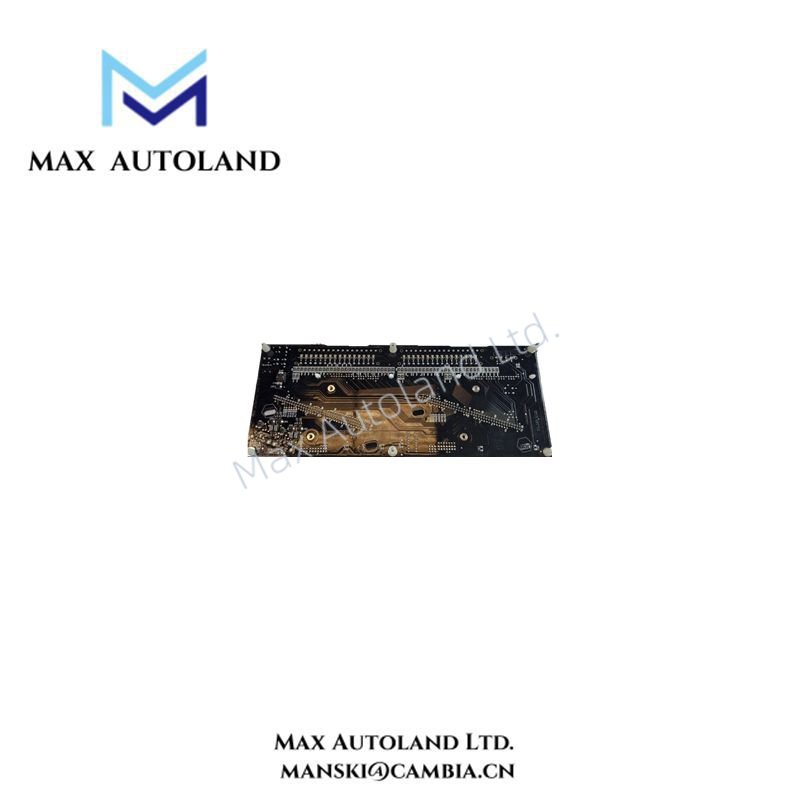

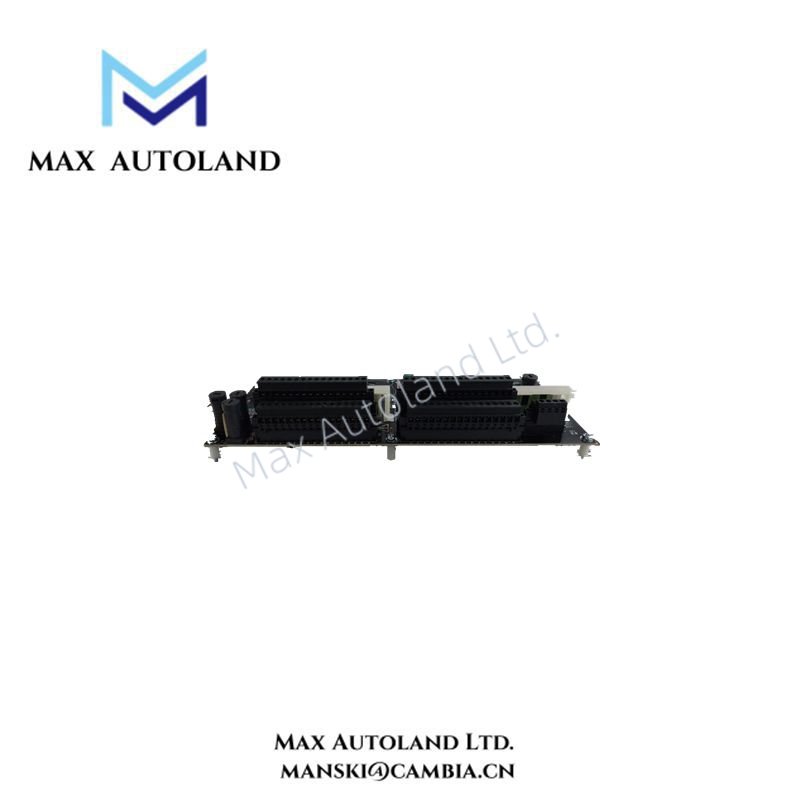

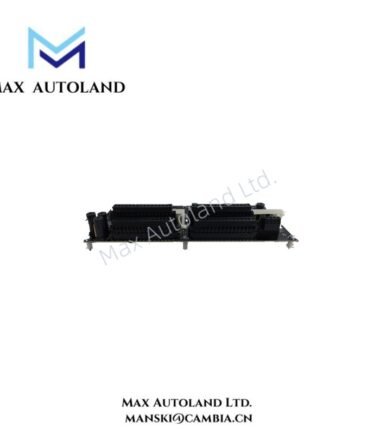

The Honeywell 8C-TDILB1 51307143-175 is a 24V digital input module designed for the Honeywell C300 Controller, part of the Series 8 I/O family. This module efficiently converts discrete field signals from sensors and switches into digital data for process control systems, ensuring reliable performance in industrial automation applications.
Additionally, the Digital Input Pulse Accumulation feature accepts 24V DC signals as discrete inputs. Notably, the first 16 channels can be configured either as standard digital inputs or for pulse accumulation. This flexibility allows each channel to support both pulse counting and frequency measurement, providing versatile monitoring and data acquisition across the system.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 8C-TDILB1 51307143-175 |
| Manufacturer | Honeywell |
| Input Voltage | 24V DC (nominal) |
| Number of Channels | 32 discrete inputs |
| Input Impedance | ≥ 10 kΩ |
| Isolation | 1000V AC RMS (optical via IOM) |
| Diagnostics | Onboard status and fault monitoring |
| Mounting | 12-inch IOTA base |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Humidity | 0–95% RH, non-condensing |
| Vibration Resistance | 5g RMS, 10–500 Hz |
| Dimensions (L×W×H) | 304 × 40 × 20 mm |
| Weight | Approximately 0.35 kg |
Manual/Datasheet PDF
Honeywell Series 8 Controller and IO Specification
