Overview

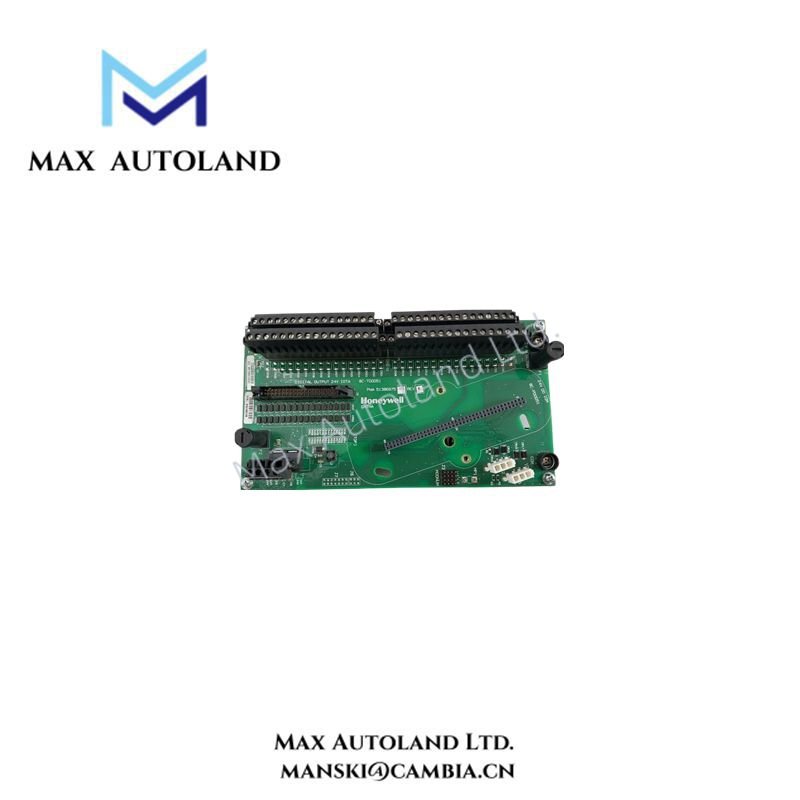

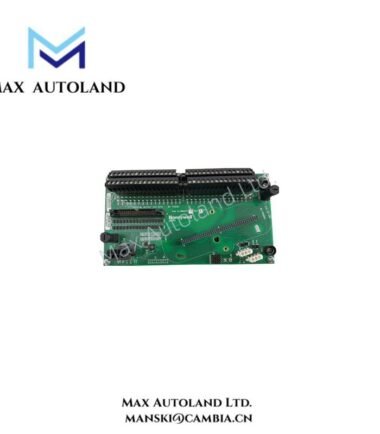

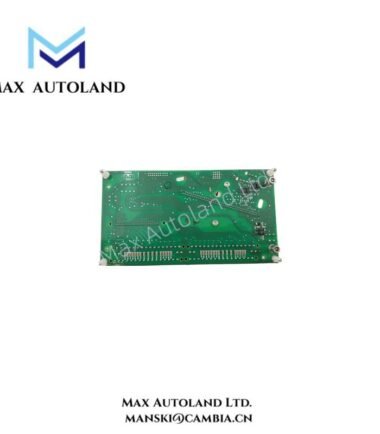

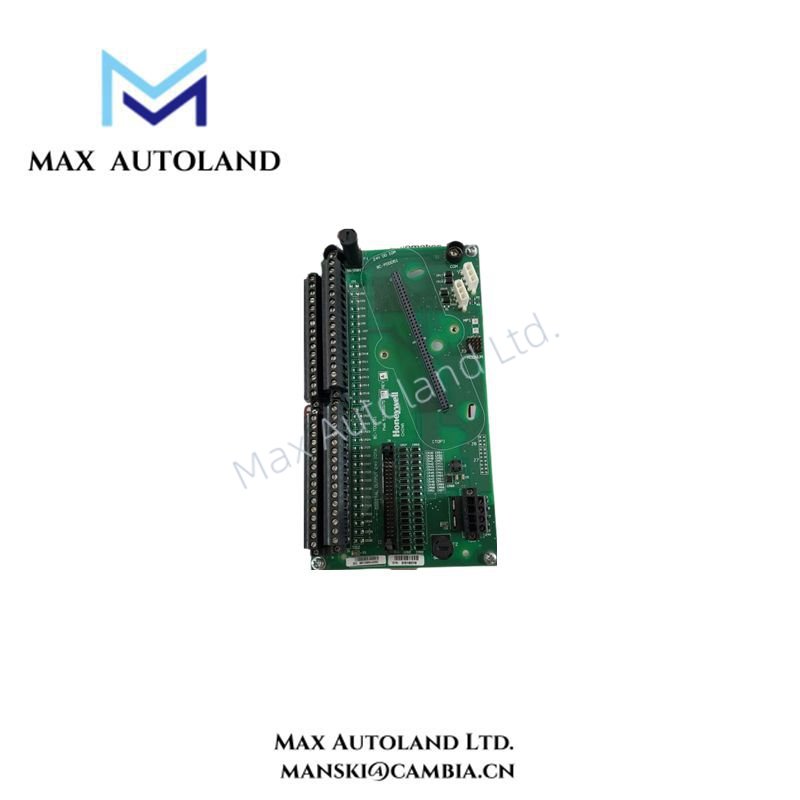

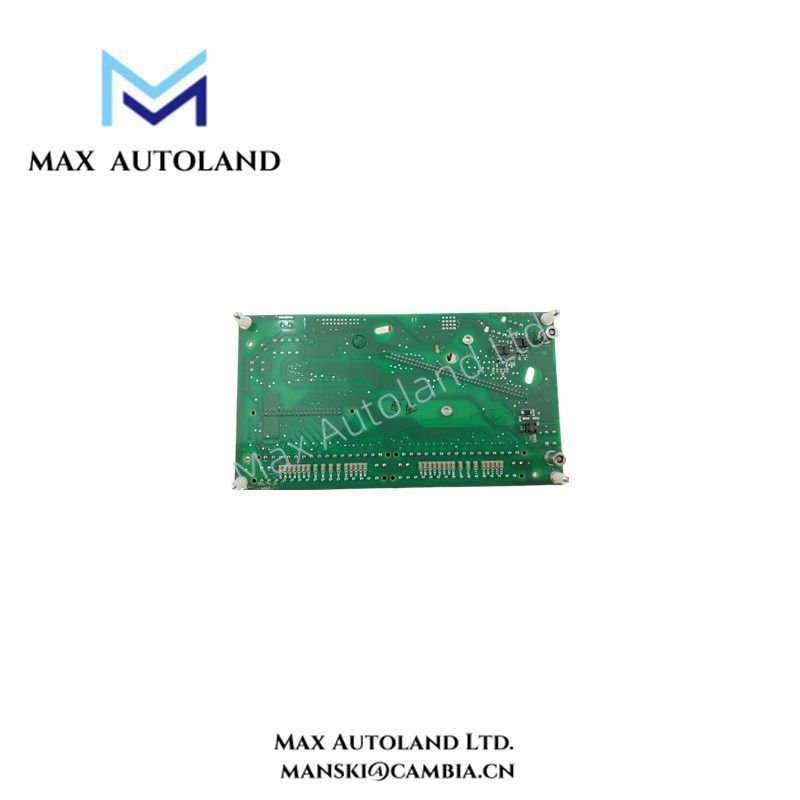

The Honeywell 8C-TDOD51 51306975-175 is a 24V digital output module designed for the Honeywell C300 Controller, part of the Series 8 I/O family. This module efficiently converts digital control signals from the controller into reliable on/off outputs for industrial automation applications, ensuring seamless integration and operation within process control systems.
Specification
| Parameter | Specification |
|---|
| Model Number | 8C-TDOD51 51306975-175 |
| Manufacturer | Honeywell |
| Input Voltage | 24V DC (nominal) |
| Number of Outputs | 8 discrete outputs |
| Output Type | Dry contact relay |
| Output Voltage Range | 24V DC |
| Output Current | 2A per output |
| Accuracy | ±0.1% of full scale |
| Resolution | 12 bits |
| Programmable Functions | Debounce time, filtering, current limiting |
| Diagnostics | LED status indicators |
| Mounting | 12-inch IOTA base |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Humidity | 0–95% RH, non-condensing |
| Vibration Resistance | 5g RMS, 10–500 Hz |
| Dimensions (L×W×H) | 12 cm × 7 cm × 5 cm |
| Weight | Approximately 0.7 kg |
