Overview

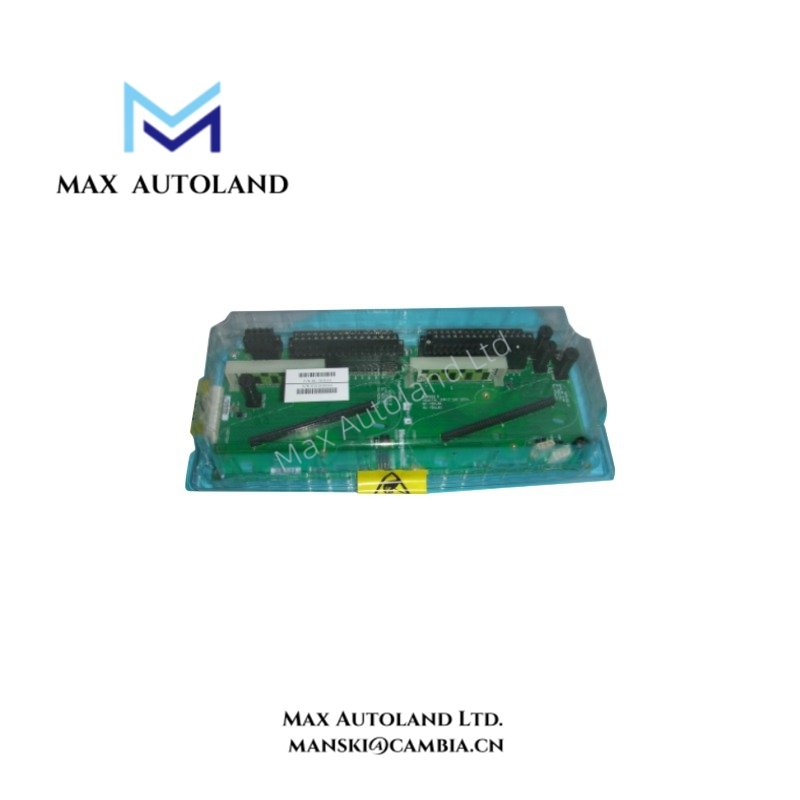

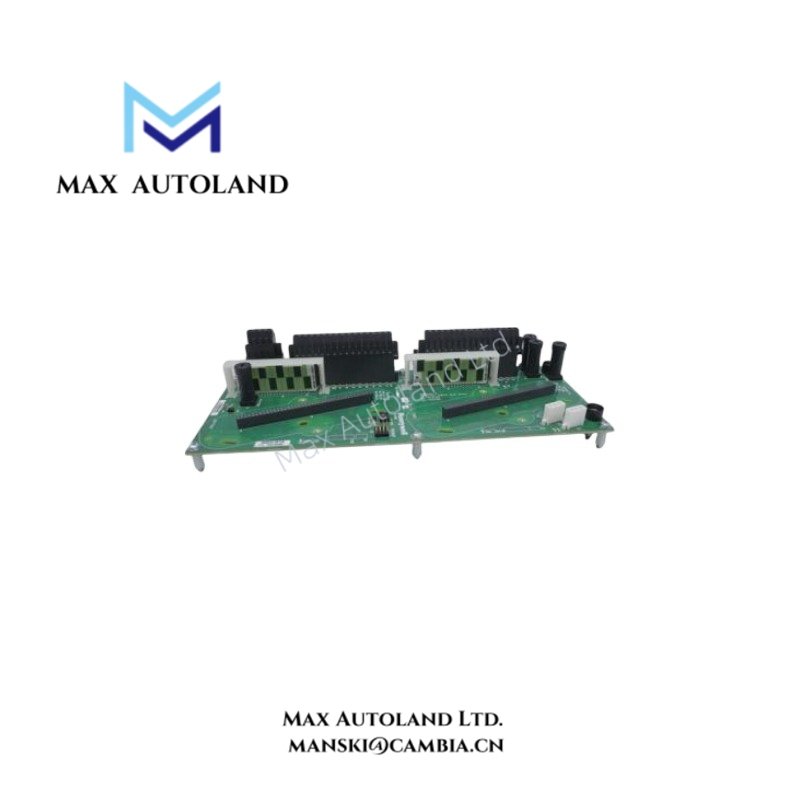

The Honeywell 8C-TDIL61 51306967-175 is a 32-channel digital input module for receiving discrete field signals in an industrial control system. It provides optical galvanic isolation, onboard excitation power, and selectable internal or external field power. The module also supports optional redundancy and internal diagnostics for data integrity, while its input indication distinguishes direct and reverse signal states.
Key Features
- 32 digital input channels for discrete field signals.
- Optical galvanic isolation within the I/O module.
- Onboard excitation power for field devices.
- Selectable internal or external field power.
- Optional redundancy, depending on the system configuration.
- Internal diagnostics for data integrity.
- Non-incendive field power support.
- No open-wire detection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-TDIL61 51306967-175 |
| Brand | Honeywell |
| Product Type | Digital Input Module |
| Input Channels | 32 |
| DI Power Voltage Range | 18 to 30 VDC |
| ON Sense Voltage | 13 VDC minimum |
| ON Sense Current | 3 mA minimum |
| Galvanic Isolation | 1000 VAC RMS |
| Isolation Technique | Optical, within the I/O module |
| Field Power | Internal or external selection |
| Onboard Excitation Power | Supported |
| Open-Wire Detection | Not supported |
| Redundancy | Optional |
| Internal Diagnostics | Extensive diagnostics for data integrity |
| Input Indication | Direct / reverse |
| Field Power Capability | Non-incendive field power |
| Manufacturer | Honeywell |
| Country of Origin | USA |
| Estimated Shipping Size | 22 x 12 x 6.5 cm |
| Weight | 0.4 kg |
| HS Code | 8537101190 |
Input Signals and Isolation
The 8C-TDIL61 receives discrete input signals from field devices. The specified ON sense thresholds provide a reference for checking whether an input signal meets the module’s stated voltage or current requirements. During configuration and troubleshooting, verify the field device output against these thresholds and the applicable wiring requirements.
Optical galvanic isolation provides electrical separation between the field input circuitry and the relevant internal I/O circuitry. The specified isolation rating is 1000 VAC RMS. This rating describes the isolation capability and should not be interpreted as the permitted continuous operating voltage at the input terminals.
Field Power and Diagnostics
The module supports onboard excitation power and allows a selection between internal and external field power. The appropriate arrangement depends on the connected field devices and the system wiring configuration. Confirm the required supply arrangement before replacing an installed module.
The module provides extensive internal diagnostics for data integrity, but it does not support open-wire detection. Therefore, an open field circuit should not be assumed to generate a dedicated open-wire diagnostic. Optional redundancy may be available when supported by the associated control system configuration.
Frequently Asked Questions
Q: How many digital input channels does the 8C-TDIL61 provide?
A: The module provides 32 digital input channels. Its specified DI power voltage range is 18 to 30 VDC.
Q: Does the 8C-TDIL61 support open-wire detection?
A: No. The module specification explicitly states that open-wire detection is not supported, even though internal diagnostics are available for data integrity.
Q: Can the module use internal or external field power?
A: Yes. The module supports both arrangements through field power selection. Confirm the required configuration against the connected field devices and the applicable system documentation.
