Overview

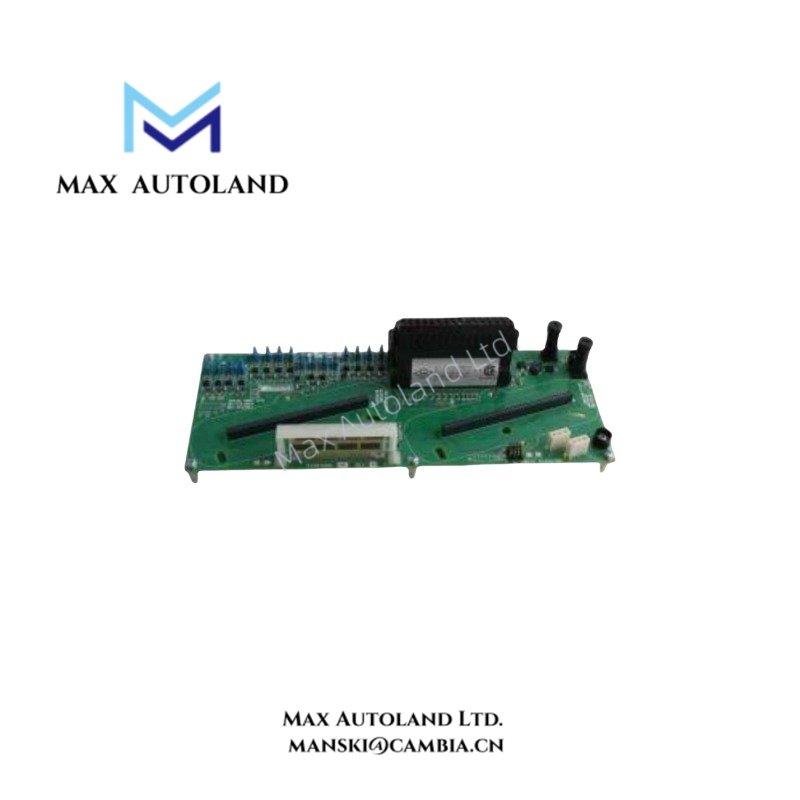

The Honeywell 8C-TDOD61 51306973-175 is a digital output module that provides 32 output channels for controlling external loads in an industrial control system. It supports load voltages up to 30 VDC and load currents up to 0.1 A per channel. The module also provides galvanic isolation rated at 1000 VAC RMS for System3, with specified off-state leakage and switching times for output circuit evaluation.
Key Features
- 32 digital output channels
- Maximum load voltage of 30 VDC
- Maximum load current of 0.1 A per channel
- Galvanic isolation rated at 1000 VAC RMS for System3
- Maximum off-state leakage current of 100 uA
- Maximum turn-on and turn-off time of 10 ms
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-TDOD61 51306973-175 |
| Brand | Honeywell |
| Product Type | Digital Output Module |
| Output Channels | 32 |
| Maximum Load Voltage | 30 VDC |
| Load Current | 0.1 A per channel |
| Galvanic Isolation | 1000 VAC RMS for System3 |
| Off-State Voltage | 24 V |
| Maximum Off-State Leakage Current | 100 uA |
| Maximum Turn-On Time | 10 ms |
| Maximum Turn-Off Time | 10 ms |
| Tariff Code | 8537101190 |
| Country of Origin | USA |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Dimensions | 12 x 14.5 x 6.5 cm |
| Weight | 0.24 kg |
Output Characteristics
The 8C-TDOD61 provides 32 digital output channels for switching external loads. The maximum rated load current is 0.1 A per channel, while the maximum load voltage is 30 VDC. When selecting connected devices, check their voltage and current requirements against these limits.
The specified maximum turn-on and turn-off times are both 10 ms. These values help engineers assess the module’s response when switching output signals, particularly where the timing of external devices matters.
Isolation and Off-State Behavior
Galvanic isolation is specified at 1000 VAC RMS for System3. The off-state voltage is listed as 24 V, and the maximum off-state leakage current is 100 uA. These parameters are relevant when checking the electrical interface between the module and connected field devices.
The listed off-state voltage should not be treated as a universal switching threshold. Confirm the output circuit requirements and field wiring conditions before selecting the module for a specific application.
Frequently Asked Questions
Q: How many output channels does the Honeywell 8C-TDOD61 provide?
A: The module provides 32 digital output channels. Each channel has a specified maximum load current of 0.1 A.
Q: What is the maximum load voltage for the 8C-TDOD61?
A: The maximum specified load voltage is 30 VDC. Check the connected load’s voltage and current requirements before installation.
Q: What are the switching times of this module?
A: The maximum turn-on time is 10 ms, and the maximum turn-off time is also 10 ms. These are the specified maximum values, not guaranteed values for every external circuit condition.
