Overview

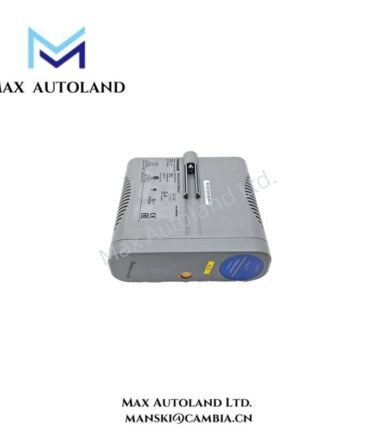

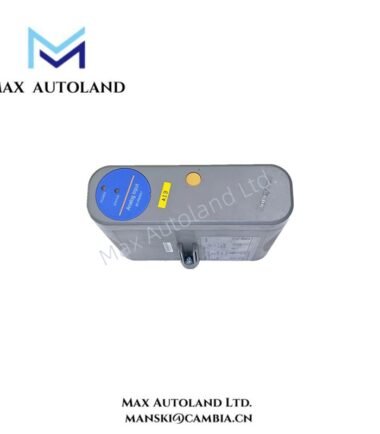

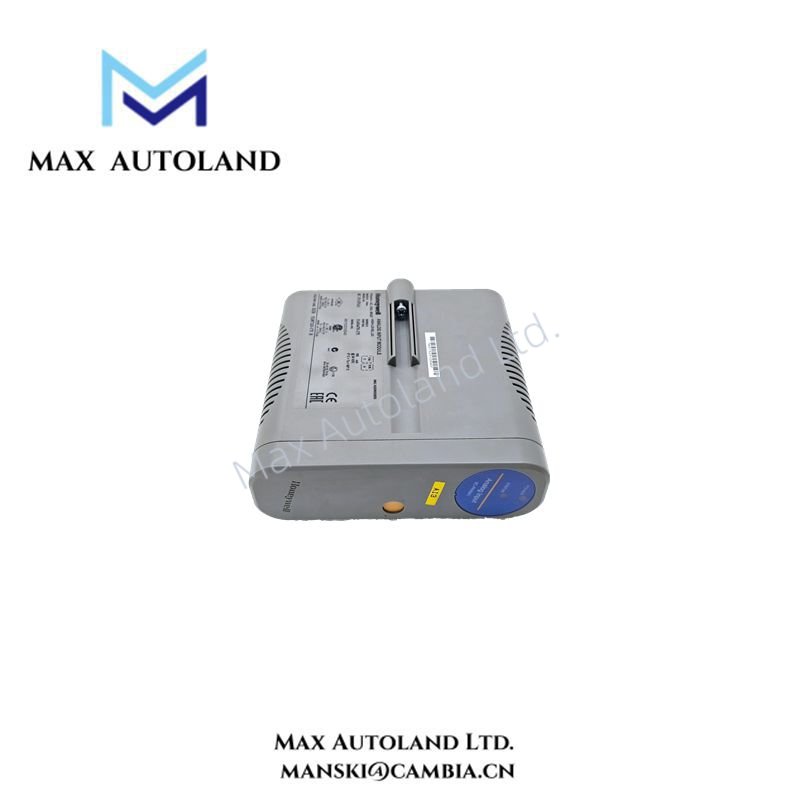

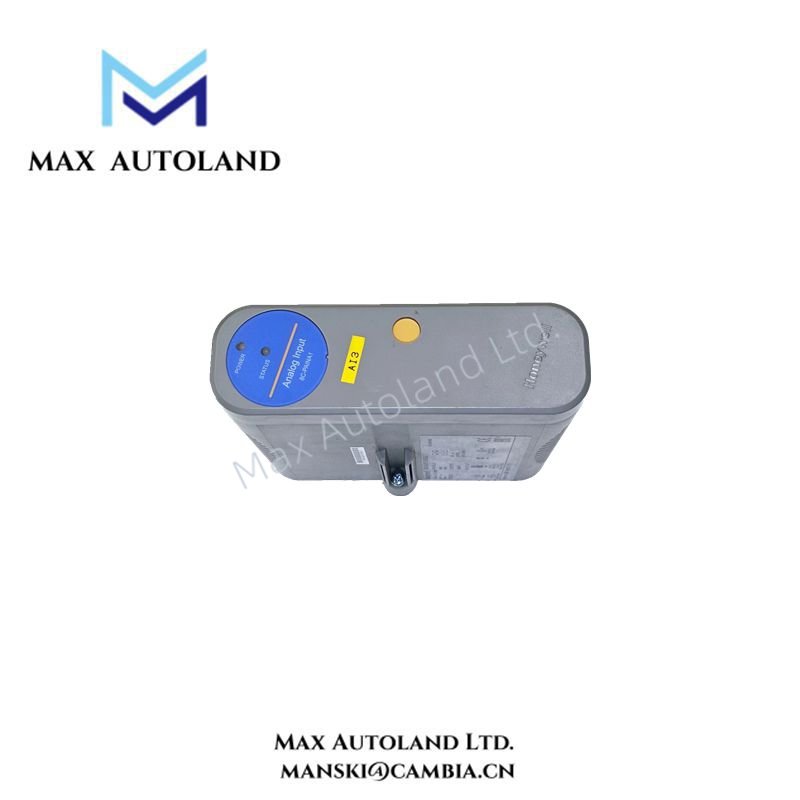

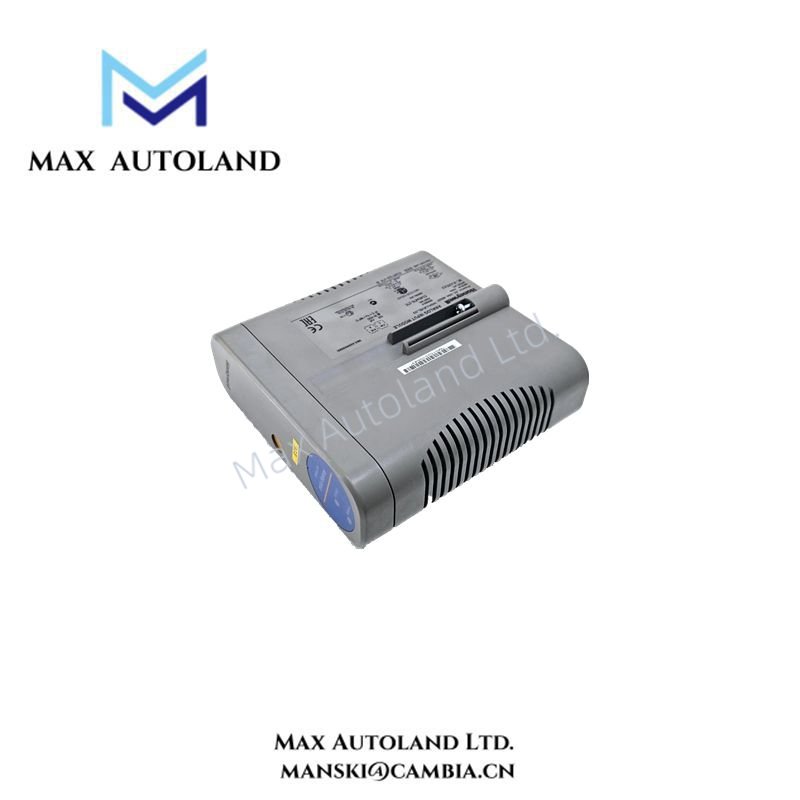

The Honeywell 8C‑PAINA1 51454470‑175 is a high-performance analog input module designed for the Experion C300 Series 8 system. It offers 16 single-ended input channels with 16-bit resolution, supporting 4–20 mA current inputs through a 250 Ω resistor. This module ensures accurate signal acquisition and is ideal for applications requiring precise analog measurements.
The Analog Input Module accepts high level current inputs from transmitters and sensing devices.
Specification
| Parameter | Specification | ||
| Input/Output Module | 8C-PAINA1-Analog Input without HART(16),Coated | ||
| IOTA Modules | 8C-TAIXA1 | Non Redundant,Coated | 6″ |
| 8C-TAIXB1 | Redundant,Coated | 12″ | |
| Input Type | Current (2-wire or self-powered transmitters) | ||
| Input Channels | 16 Channels (Single Ended type) | ||
| A/D Converter Resolution | 16 bits | ||
| Input Range | 4-20mA (through 250Ω) | ||
| Voltage Rating | 24 VDC | ||
| Module Current Rating | 105mA | ||
| Common Mode Rejection Ratio,dc to 60 Hz(500Ω source imbalance) | 70 dB | ||
| Normal Mode Rejection Ratio,at 60 Hz | 19 dB | ||
| Normal Mode Filter Response | Single-pole RC,-3dB @6.5Hz | ||
| Maximum Nomal Mode Input | ±30 Volts | ||
| Crosstalk,dc to 60 Hz(channel-to-channel) | -60 dB | ||
| Maximum Input voltage (any input referenced to common,no damage) | ±30 Volts | ||
| Input Scan Rate | 50 ms | ||
| Hardware Accuracy(@CMV=0V) | ±0.075%of full-scale(23.5°±2℃) ±0.15%of full-scale(0 to 60℃) | ||
| Galvanic Isolation (any input terminal voltage referenced to common)² | 1000VAC RMS or±1000 VDC | ||
