Overview

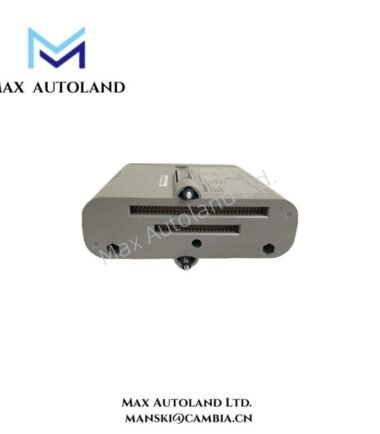

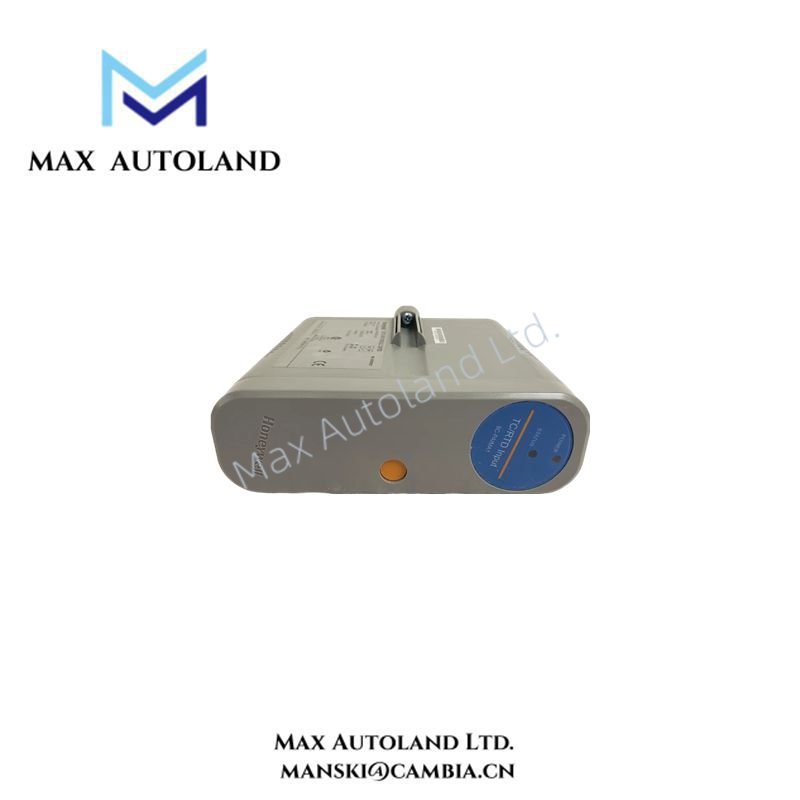

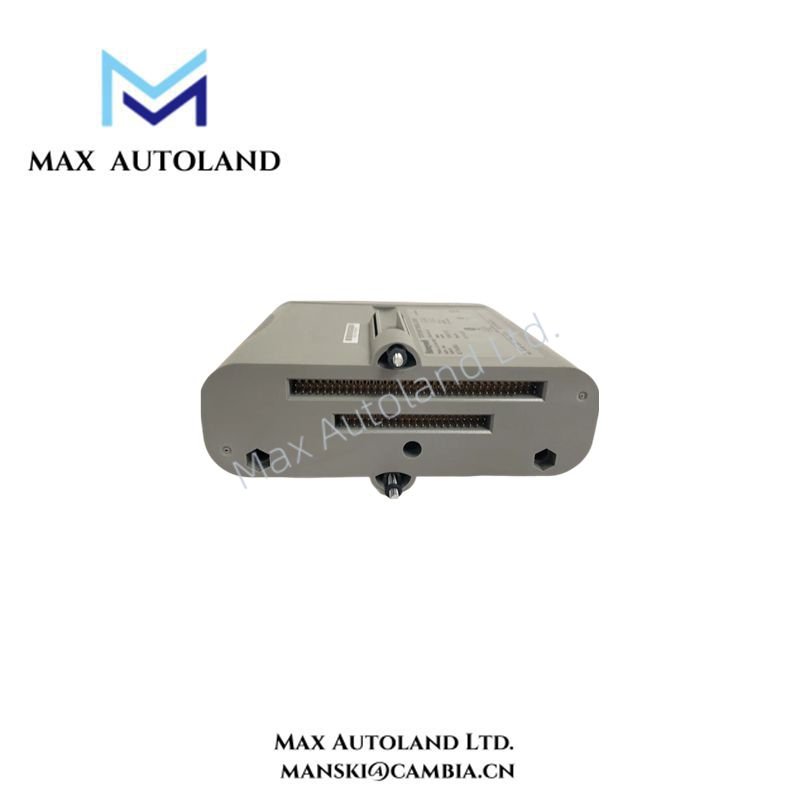

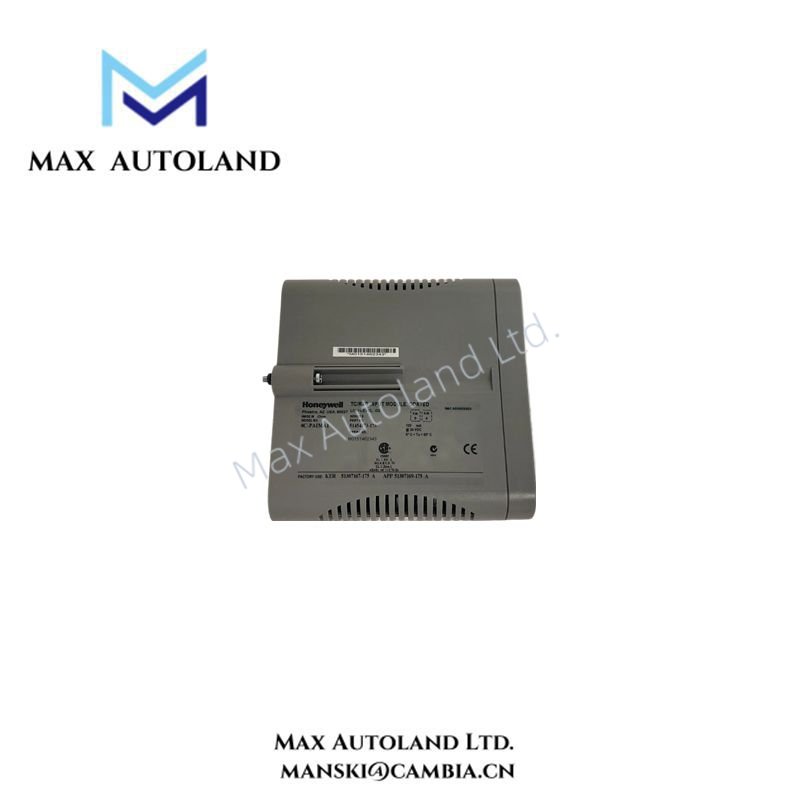

The Honeywell 8C-PAIM01 is a coated Low-Level Analog Multiplexer (LLMUX) Module designed specifically for the Experion C300 Series. It provides up to 64 temperature input channels, handling both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs). Therefore, engineers can achieve precise temperature measurements in demanding industrial environments.
Moreover, the LLMUX I/O module actively supports up to 64 channels of temperature inputs. Low-level inputs connect through the Honeywell PMIO LLMUX FTA, and each FTA manages 16 channels. The module accommodates two types of LLMUX FTAs. One type offers 16 RTD inputs, while the other provides 16 TC or millivolt (mV) inputs. By combining these FTAs, users can flexibly configure the system to include any required mix of TC, mV, or RTD points. This flexibility allows seamless adaptation to various process control applications.
Specification
| Attribute | Specification |
|---|---|
| Model Number | 8C-PAIM01 |
| Manufacturer | Honeywell |
| Series | Experion Series C |
| Module Type | Low-Level Analog Multiplexer (LLMUX), Coated |
| Input Channels | Up to 64 |
| Input Types | Configurable per channel: RTD or TC |
| Signal Range | -20 to +100 millivolts (for thermocouples only) |
| Input Impedance | 1 megohm at DC (for thermocouples only) |
| CMV | ±250 VDC or VAC RMS |
| CMRR | Minimum 120 dB |
| Crosstalk | 80 dB (120 dB at 50 and 60 Hz) |
| Cold Junction Compensation | Supports remote cold junction compensation capability |
| OTD Protection | Configurable Open Thermocouple Detection protection |
| Scanning Rate | 1-second PV scanning |
| Mounting | DIN rail or panel mount |
