Overview

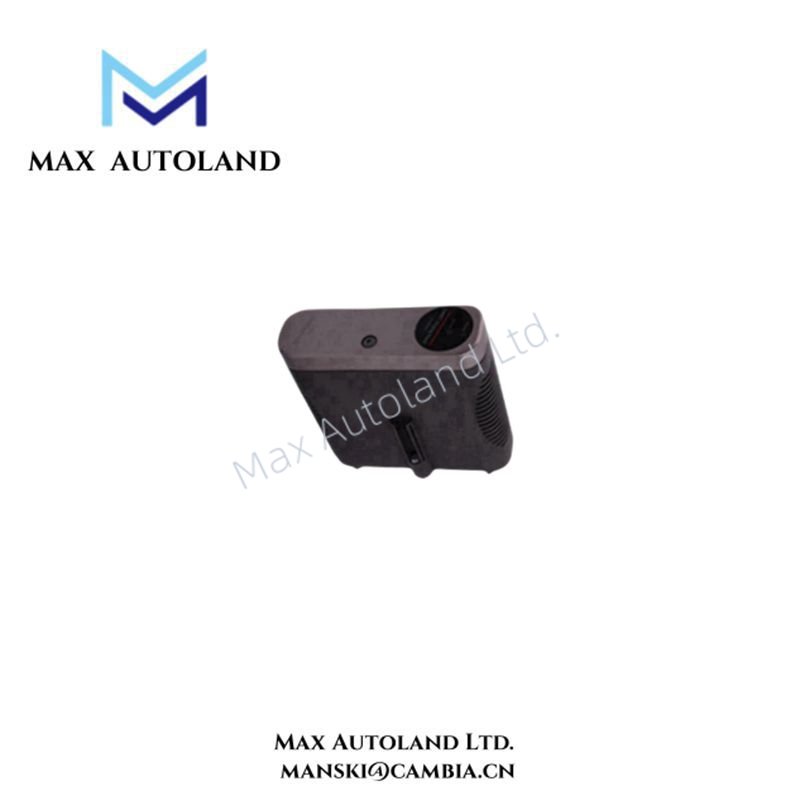

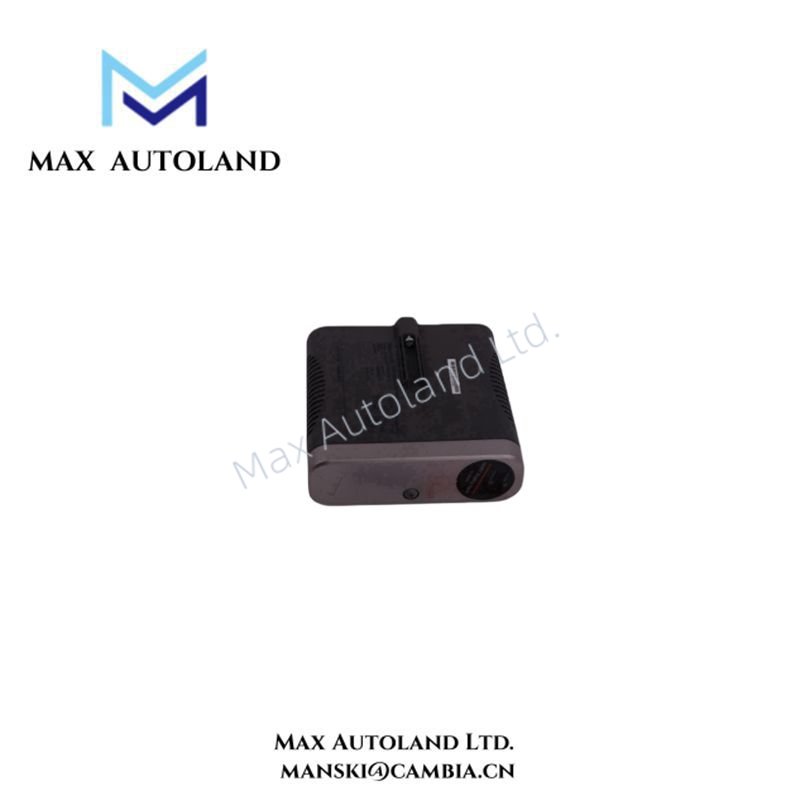

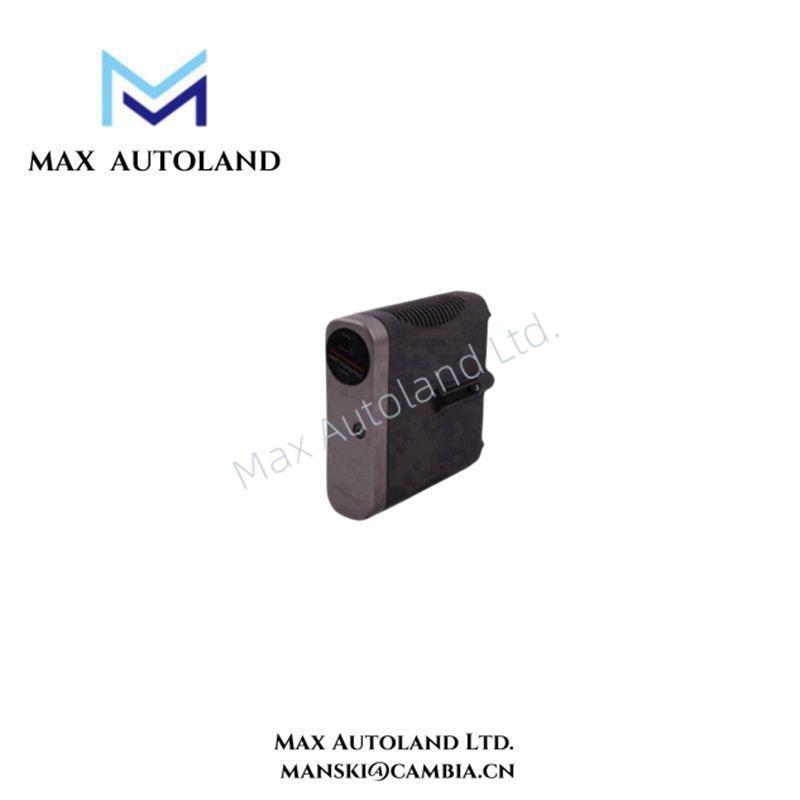

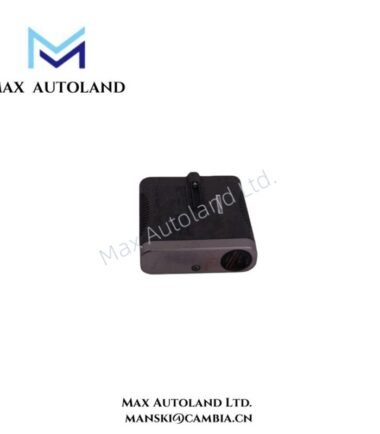

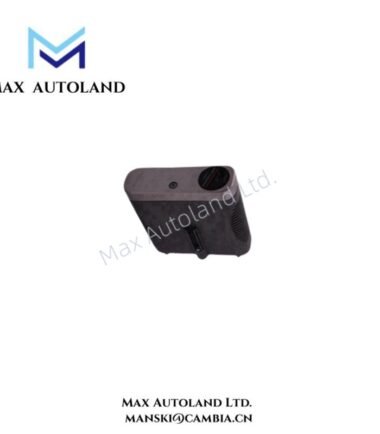

The Honeywell 8C-IP0101 is a Standard Input/Output (I/O) Module designed for the Experion C300 Series. It delivers reliable signal acquisition and distribution for both digital and analog process points. This module ensures precise system monitoring while maintaining flexibility in complex industrial applications.
The PROFIBUS Gateway Module provides a common module platform to support the interface to the PROFIBUS DP and the C300 Controller. The PGM is developed in the Series 8 form factor for use with the C300 Controller. The Series 8 form factor employs an Input Output Termination Assembly (IOTA) and an electronics module which mounts and connects to the IOTA.
As a PROFIBUS gateway, PGM is always a master and communicates with the PROFIBUS compatible slave devices. The PGM mounts in the same fashion and shares all characteristics, power and grounding, certifications, and meets all environmental rating as all other Series 8 components.
Specification
| Attribute | Specification |
|---|---|
| Model Number | 8C-IP0101 |
| Manufacturer | Honeywell |
| Series | Experion C300 Series |
| Module Type | Standard I/O Module |
| Digital Inputs | Up to 32 isolated channels |
| Digital Outputs | Up to 16 relay or transistor outputs |
| Analog Inputs | Up to 16 channels, 4–20 mA or 0–10 VDC |
| Analog Outputs | Up to 8 channels, 4–20 mA or 0–10 VDC |
| Input Impedance | 1 MΩ (typical) |
| Accuracy | ±0.1% FS |
| Conversion Time | 1 ms |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 0–95% RH, non-condensing |
| Dimensions (H × W × D) | 3 cm × 31.3 cm × 27.8 cm |
| Weight | 0.65 kg |
