Overview

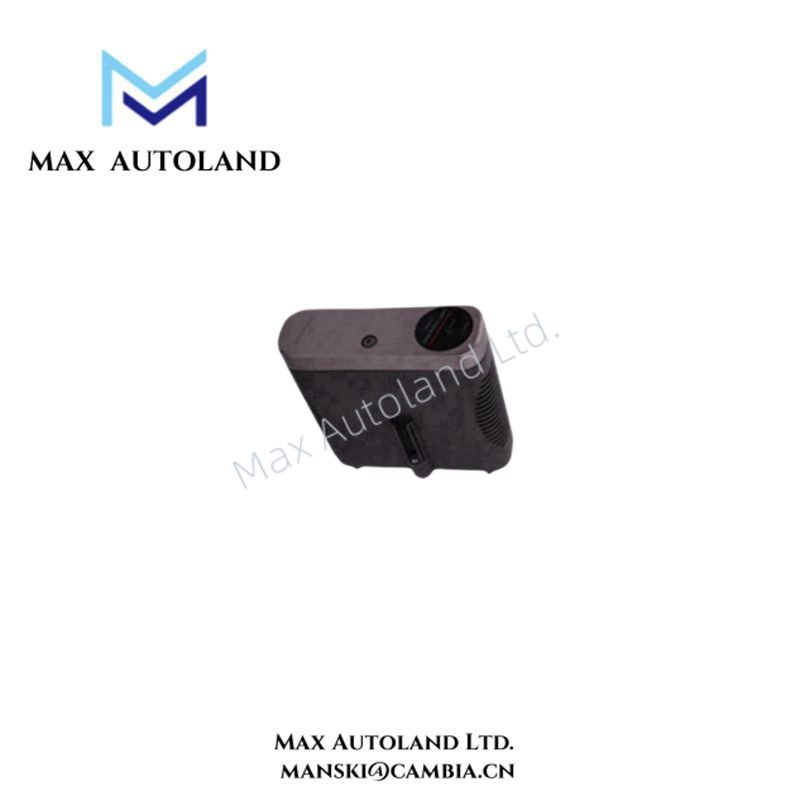

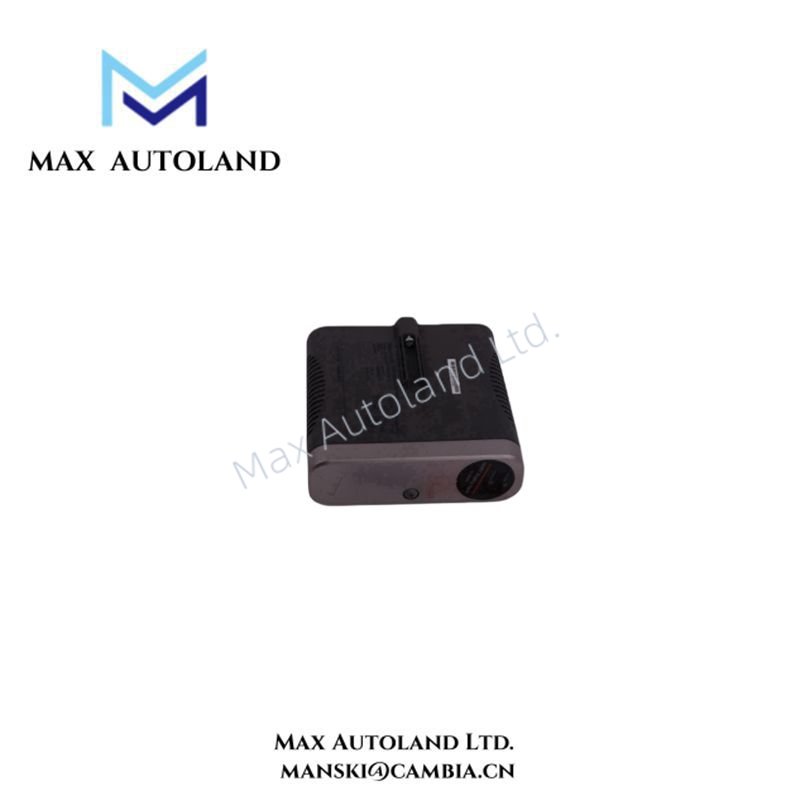

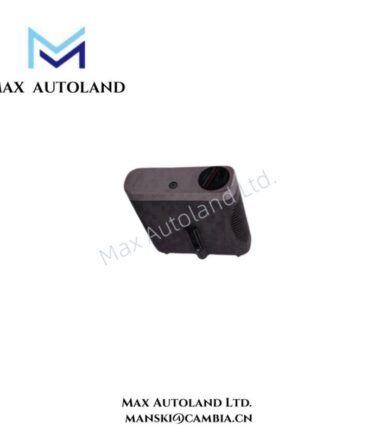

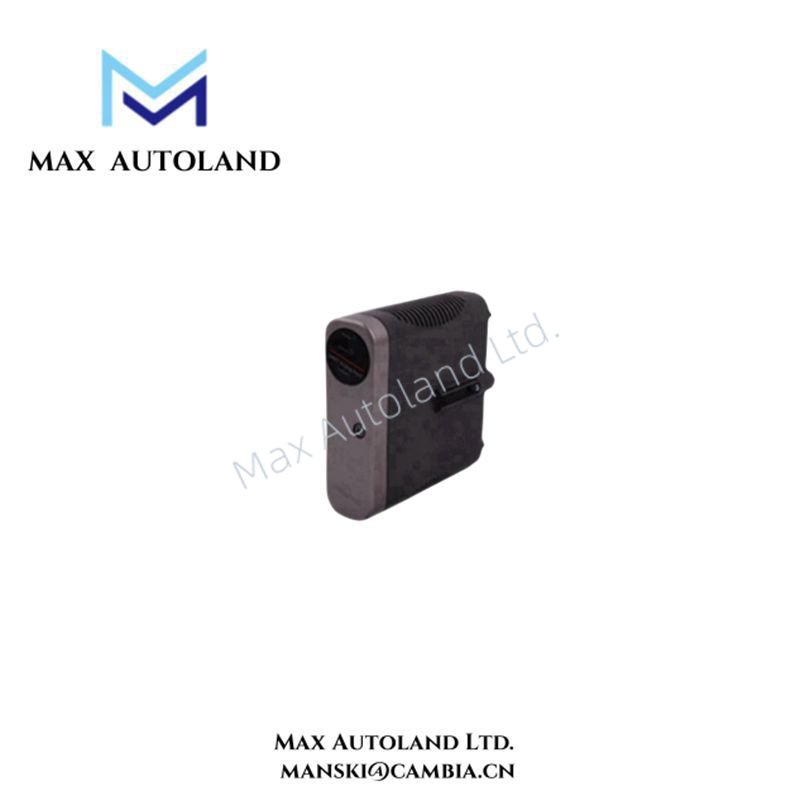

The Honeywell 8C-IP0102 is a PROFIBUS Gateway Module designed for the Experion C300 Series, providing a master interface between the C300 controller and PROFIBUS-compatible slave devices. Consequently, it enables seamless and reliable communication across industrial automation systems.
In addition, like all Series 8 modules, the PGM mounts directly on a Series 8 IOTA (I/O Terminal Assembly), which simplifies installation. The module uses a single (6-inch) IOTA, while redundancy is achieved by connecting two IOTAs, two PGMs, and an interlinking sync cable. This configuration ensures continuous operation even if one module fails.
Specification
| Parameter | Specification | |
| Input/Output Model | 8C-IP0102,PROFIBUS Gateway ASSY,Coated 8U-IP0102,PROFIBUS Gateway ASSY,Uncoated | |
| IOTA(64pt)PWA | 8C-TPOXA1,Coated 8U-TPOXA1,Uncoated | |
| Supervisory network type | Series 8 PGM is a standard FTE node. | |
| Voltage Rating | 24VDC | |
| Module current rating | 430 mA | |
| Temperature | Operating Temperature | 0 to 60℃ |
| Storage temperature | -40 to 85℃ | |
| Series 8 PGM mounting | Mounts on the standard Series 8 mounting assembly (on an OTA)and must mount in a standard Series 8 cabinet. | |
| Series 8 PGM power and grounding | Must use the standard Series 8 power system. | |
| PROFIBUS DP(VO)supported? | Yes-including standard and extended status bytes. | |
| PROFIBUS DP(V1)supported? | PGM acts as a DP Master Class-2 device for FDM.FDM uses vendor provided DTMs to enable DPV1 messaging over the DP network. Profidrive DSB has some V1 capabilities(see users manual) | |
| Module Removal and Insertion Under Power | Supported | |
| PROFIBUS DP(V2)supported? | Not supported in release R110. | |
| DP network media redundancy | Supported using 3rd party Redundancy Link Modules (like ABB RLM and Siemens YLink). | |
| DP Slave device redundancy | DP network can include redundant slaves.PGM has no V1 capability with respect to Slave redundancy.FDM may be able to manage this using vendor supplied DTMs. | |
| PROFIBUS PA and PA devices supported? | Yes,using 3rd party PAto DP converters/couples. | |
| Asset Management? | Yes-Using Honeywell FDM. PGM acts as a Master Class-2 device allowing FDM to access the DP network and DP Slaves.FDM utilizes DTMs to communicate with DP slaves. | |
| Simulation supported? | No simulation capabilfties for R110. | |
| HART over PROFIBUS support | Yes-Using FDM and Slaves that support HART devices. | |
