Overview

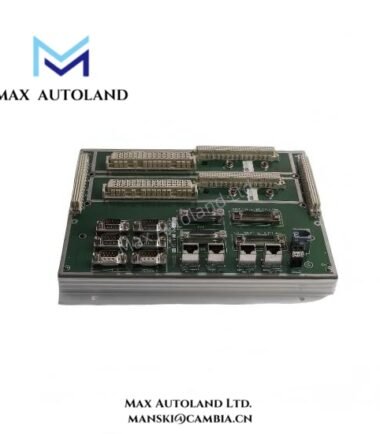

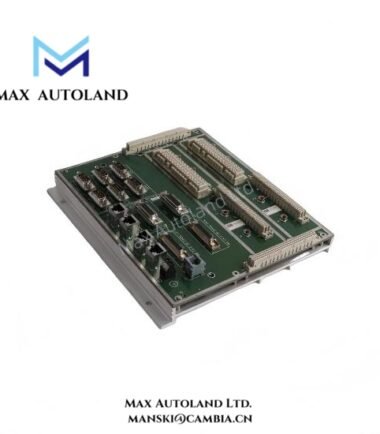

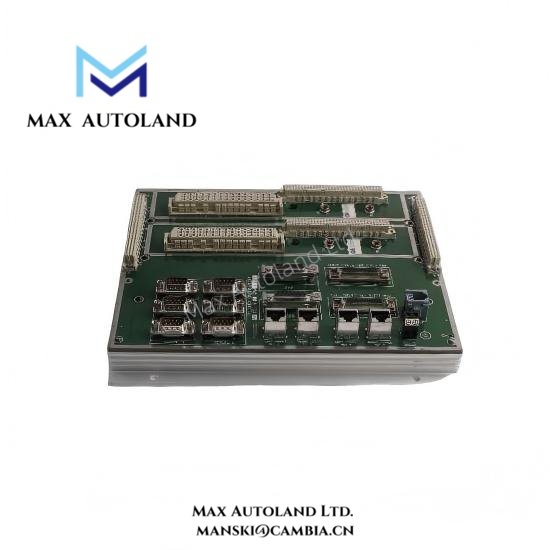

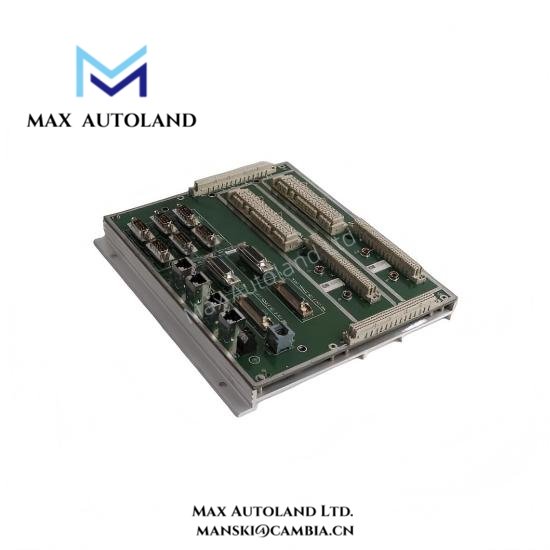

The 7400206-100 Triconex Backplane Module provides reliable communication and power distribution within Tricon safety controllers. Designed for critical industrial applications, it interconnects controller modules, I/O units, and communication cards, ensuring precise system operations. Its compact design allows seamless integration into Tricon chassis assemblies.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 7400206-100 |
| Manufacturer | Triconex |
| Product Type | Backplane Module |
| System Compatibility | Tricon Safety Instrumented System |
| Primary Function | Internal module communication and power distribution |
| Module Slots | Multiple high-density connectors for Tricon controller and I/O modules |
| Connector Type | Industrial high-density backplane connectors |
| Signal Routing | Multi-layer PCB with integrated copper signal distribution paths |
| Communication Support | Internal high-speed communication between safety controller modules |
| Power Distribution | Integrated PCB traces distribute power to installed modules |
| PCB Construction | Multi-layer industrial printed circuit board |

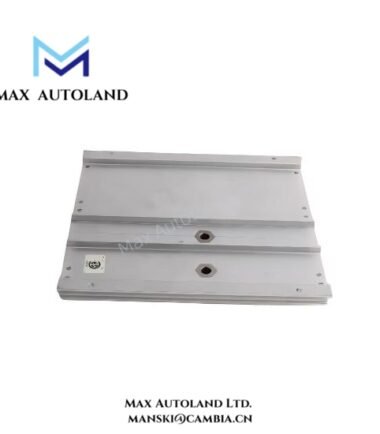

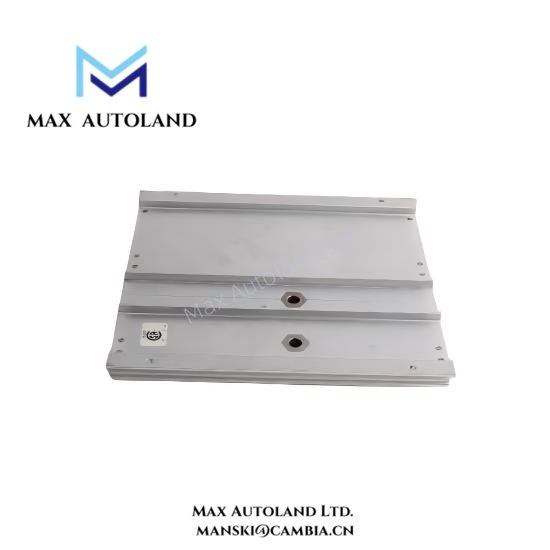

| Mechanical Structure | Reinforced baseplate frame with connector alignment support |
| Dimensions | Approx. 320 mm × 180 mm × 45 mm |
| Weight | Approximately 1.5–1.8 kg |
| Mounting Method | Installed inside Tricon chassis assembly |
| Internal Components | Multi-layer PCB, connector arrays, signal routing circuits, structural mounting frame |
| Cooling Design | Passive thermal dissipation through chassis airflow |
| Typical Application | Safety instrumented control systems in industrial plants |
FAQ
Q1: Is the 7400206-100 backplane module brand new and original?
Yes. All 7400206-100 modules we supply are brand new original factory products.
Q2: Do you keep the 7400206-100 in stock?
Yes. We maintain available stock of 7400206-100 modules for urgent industrial control system requirements.
Q3: How long does shipping take after placing an order?
Orders normally ship within 3 days to 2 weeks depending on order quantity and packaging preparation.
Q4: Which logistics companies do you usually use?
We commonly arrange shipping through reliable international logistics providers such as DHL and other express carriers.
Q5: What systems use the 7400206-100 backplane module?
The 7400206-100 module operates inside Tricon safety instrumented systems used in industrial automation facilities.
Q6: What components connect to the backplane module?
Controller modules, communication cards, and I/O modules connect directly to the 7400206-100 backplane through slot connectors.
