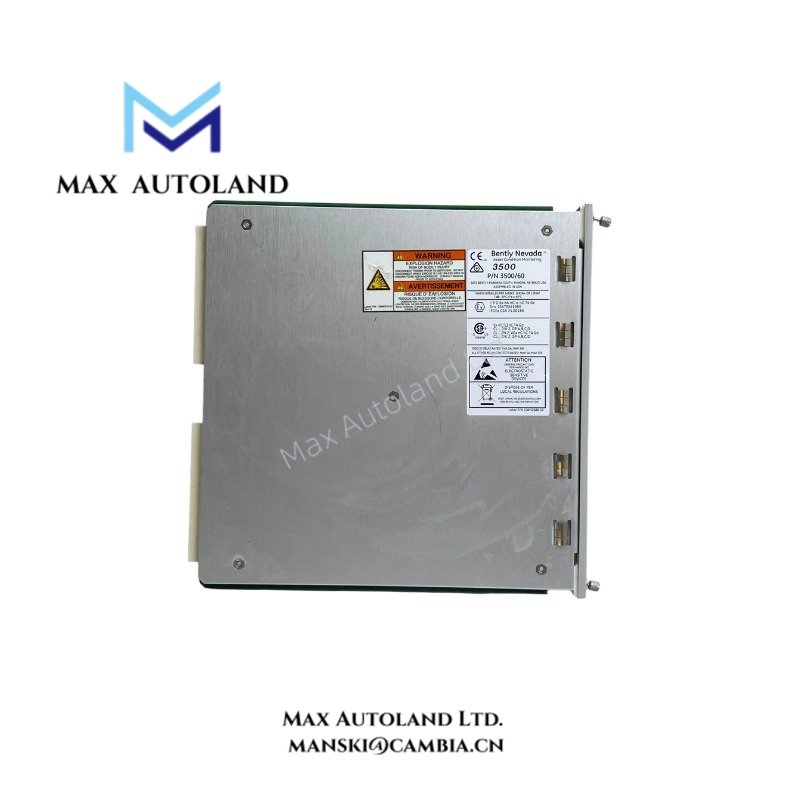

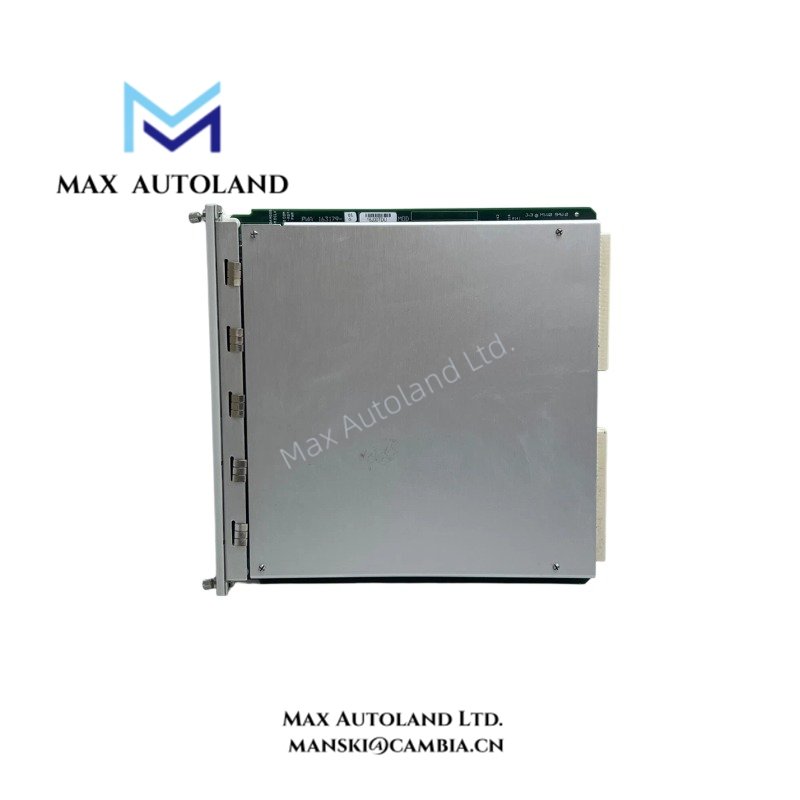

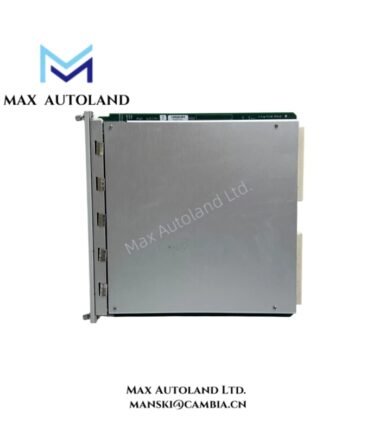

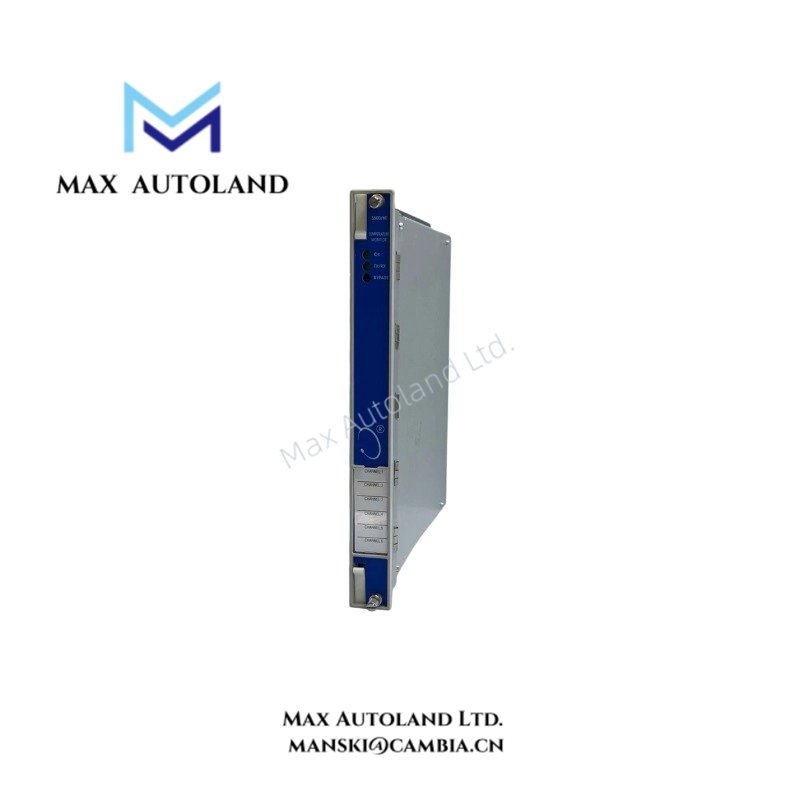

Overview
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/60 163179-01 |
| Spare Model | 163179-01 |
| Brand | Bently Nevada |
| Product Type | Six-Channel Temperature Monitor |
| Compatible Monitoring Family | 3500/60 |
| Channel Capacity | Six temperature channels |
| Accepted Sensor Arrangement | RTD / TC |
| Thermocouple Types | E, J, K and T |
| Rack Position | One full-height front monitor slot |
| Operating Temperature | -30 to +65 deg C with standard I/O |
| Storage Temperature | -40 to +85 deg C |
| Nominal Power Consumption | 7 W |
| Lead Input Impedance | 10 Mohm |
| RTD Excitation at 25 deg C | 925 +/-15 microampere per transducer |
| Standard Temperature Resolution | 1 deg C or 1 deg F |
| Alarm Thresholds | User-programmable upper and lower Alert/Danger levels |
| Alert Delay | 1-60 s in 1 s increments |
| Danger Delay | 1-60 s in 0.5 s increments |
Temperature Measurement and Alarm Functions
The 3500/60 processes temperature signals from supported RTD and thermocouple arrangements. Its six-channel capacity allows multiple temperature measurements to be monitored within a single monitor slot. The selected sensor type and installed I/O configuration must match the intended measurement circuit.
Users can configure upper and lower Alert and Danger thresholds to suit the monitored equipment. Adjustable delay settings determine how long a condition must persist before the corresponding alarm response occurs, helping distinguish sustained temperature deviations from brief signal changes.
Configuration and Replacement Considerations
The 3500/60 and 3500/61 have different recorder-output capabilities. The 3500/60 does not provide the individual recorder outputs available on the 3500/61. Therefore, a replacement check should include the required output functions, sensor inputs and installed I/O arrangement rather than relying on the shared temperature-monitoring family alone.
The specified operating-temperature range applies to the standard I/O configuration. Confirm the actual I/O arrangement and any associated isolation or barrier requirements before selecting a replacement for an existing installation.
Frequently Asked Questions
Q: How many temperature signals can the 3500/60 163179-01 monitor?
A: It supports six temperature-monitoring channels. The selected RTD or thermocouple arrangement must match the installed I/O configuration.
Q: Does the 3500/60 163179-01 provide recorder outputs?
A: No. The 3500/60 does not provide individual recorder outputs. The 3500/61 offers this additional functionality, so verify recorder requirements before choosing between the two models.
Q: What should be checked before replacing an existing temperature monitor?
A: Confirm the complete model and spare number, sensor type, installed I/O configuration, required recorder functions and applicable operating-temperature limits. Matching the 3500 family alone does not confirm that all wiring and signal requirements are equivalent.
