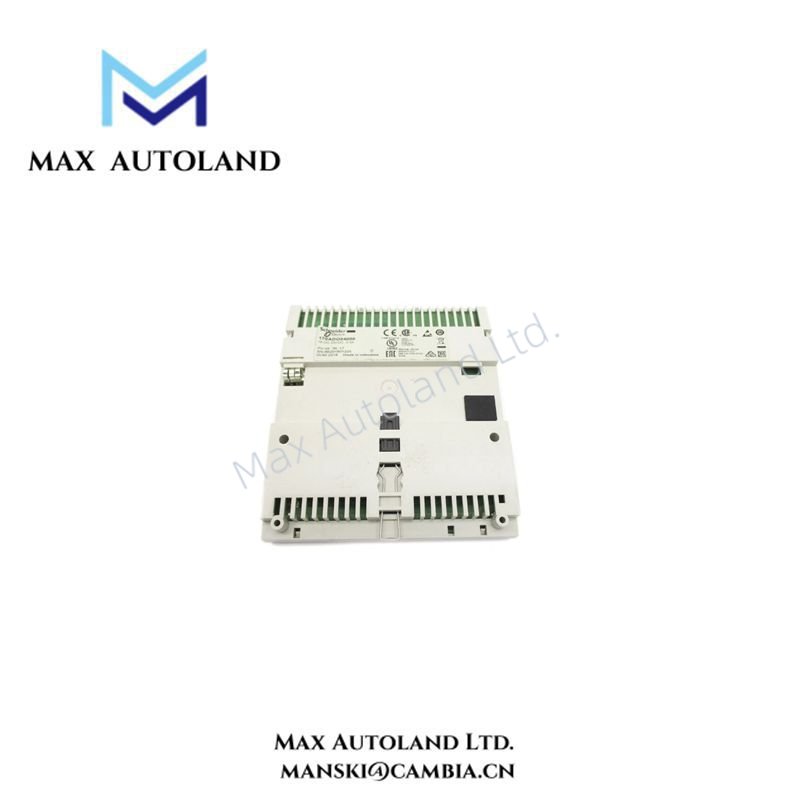

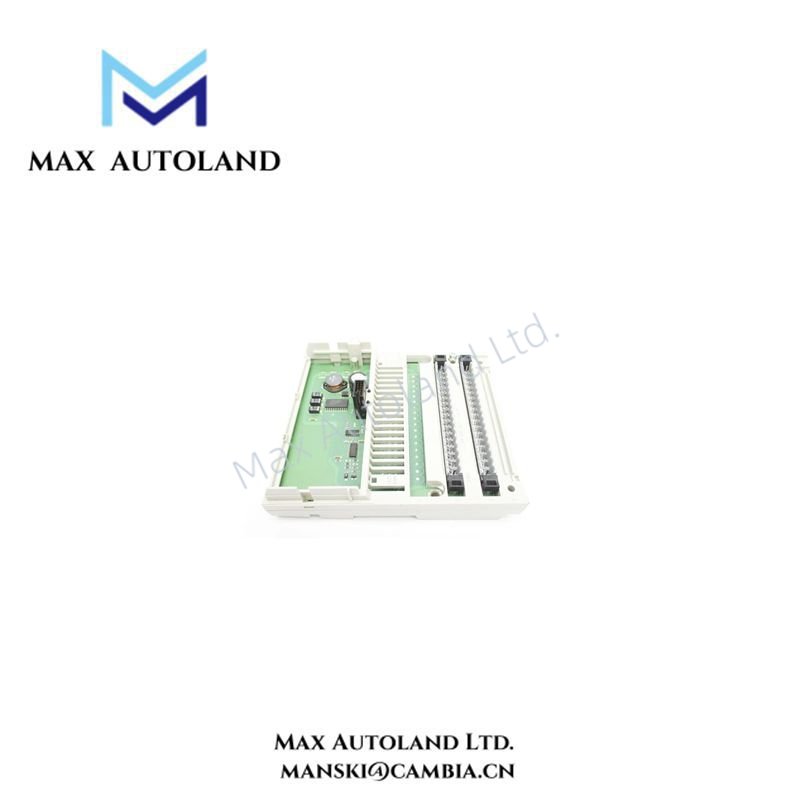

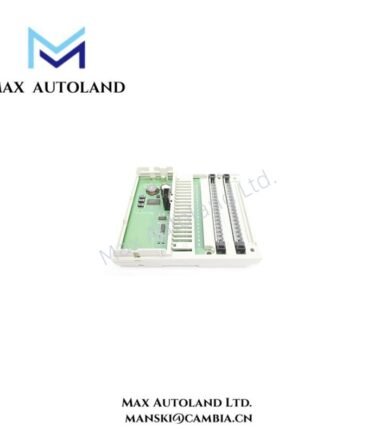

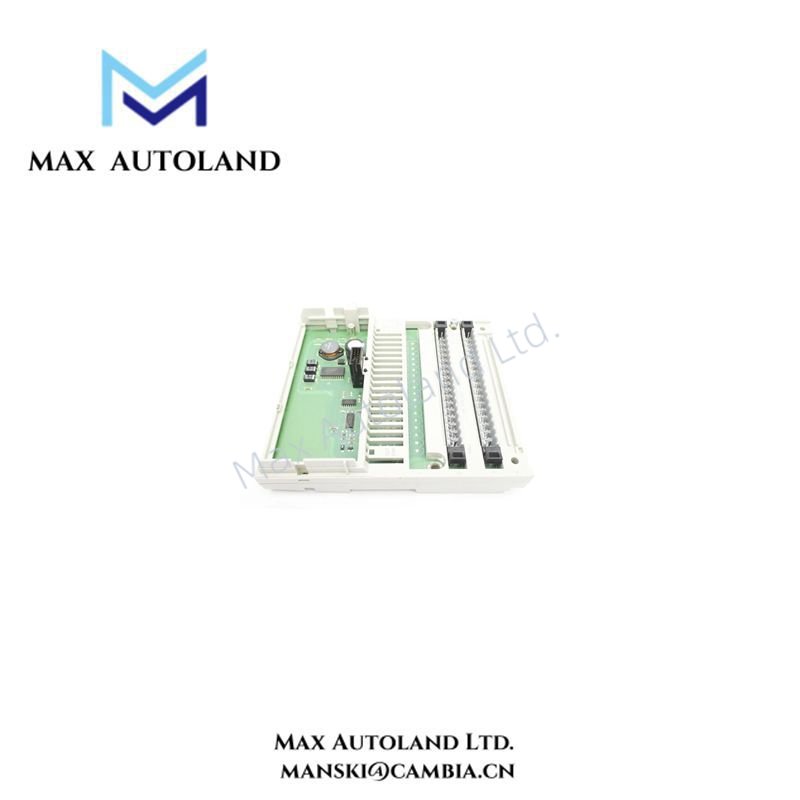

Overview
This module integrates seamlessly into existing Momentum systems and supports easy maintenance with its modular architecture. Its lightweight build, durable design, and superior electrical protection ensure long-term stability in harsh industrial environments.
Specification
| Feature | Specification |
|---|---|
| Range of Product | Modicon Momentum Automation Platform |
| Product Type | Discrete Output Module |
| Output Type | Solid-State |
| Number of Outputs | 16 |
| Output Voltage Range | 12–24 VDC |
| Load Current per Channel | 0.5 A |
| Maximum Current per Module | 8 A |
| Isolation | Optical isolation between channels and bus |
| Switching Frequency | Up to 1 kHz |
| Response Time | Typically < 1 ms |
| Output Protection | Built-in short-circuit and overload protection |
| Power Supply | From I/O base |
| Local Signalling | 16 green LEDs indicating output status |
| Connection Type | 20-pin removable terminal block |
| Dimensions (H × W × D) | 65 mm × 45 mm × 28 mm |
| Product Weight | 0.12 kg |
| Certifications | CE, UL, CSA |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | −40 °C to 85 °C |
| Relative Humidity | Up to 95% non-condensing |
| Mounting Type | On Momentum I/O base or extension bus |
| Protective Treatment | TC coating for harsh environments |
FAQ
It provides 16 solid-state DC outputs, each capable of driving up to 0.5 A at 24 VDC.
Q2: Does it offer protection against short circuits?
Yes, the 170ADO34000 includes built-in short-circuit and overload protection for safe operation.
Q3: How can I monitor the module’s output status?
Each channel has a dedicated green LED indicator showing active signal status in real time.
Q4: Can this module be used with other Modicon Momentum components?
Absolutely. It integrates seamlessly with other Modicon Momentum I/O bases and communication adaptors.
Q5: What is the typical delivery and warranty policy?
All units are brand-new and 100% original. We have stock available and typically ship within 3 days to 2 weeks, depending on order size. Common couriers include DHL. If any quality issues occur, returns are accepted within 30 days.
