Overview
Specification
| Feature | Specification |
|---|---|
| Range of Product | Modicon Momentum Automation Platform |

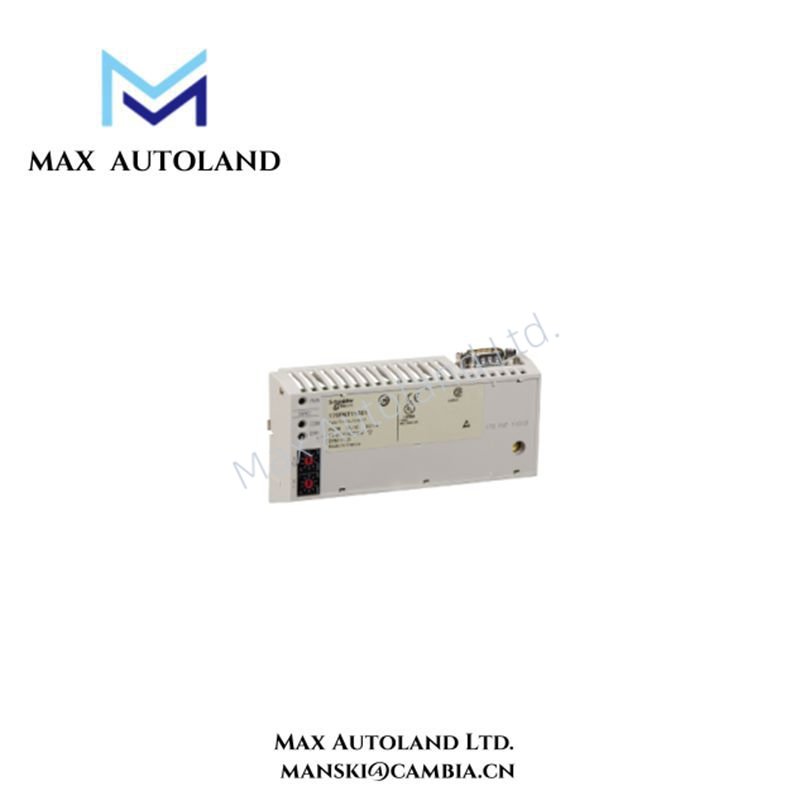

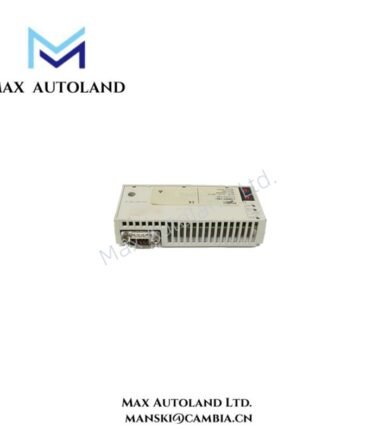

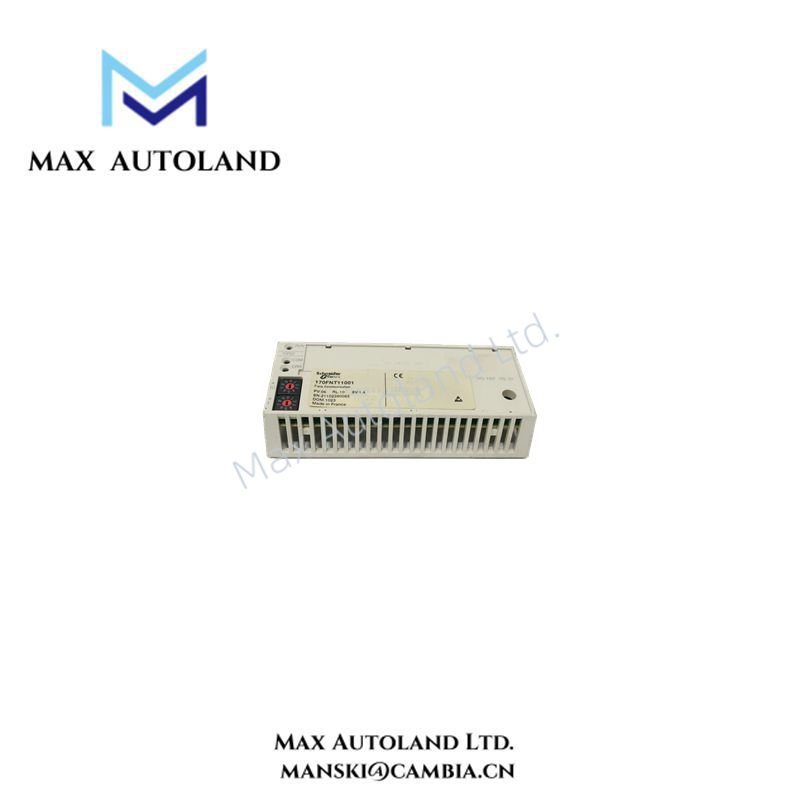

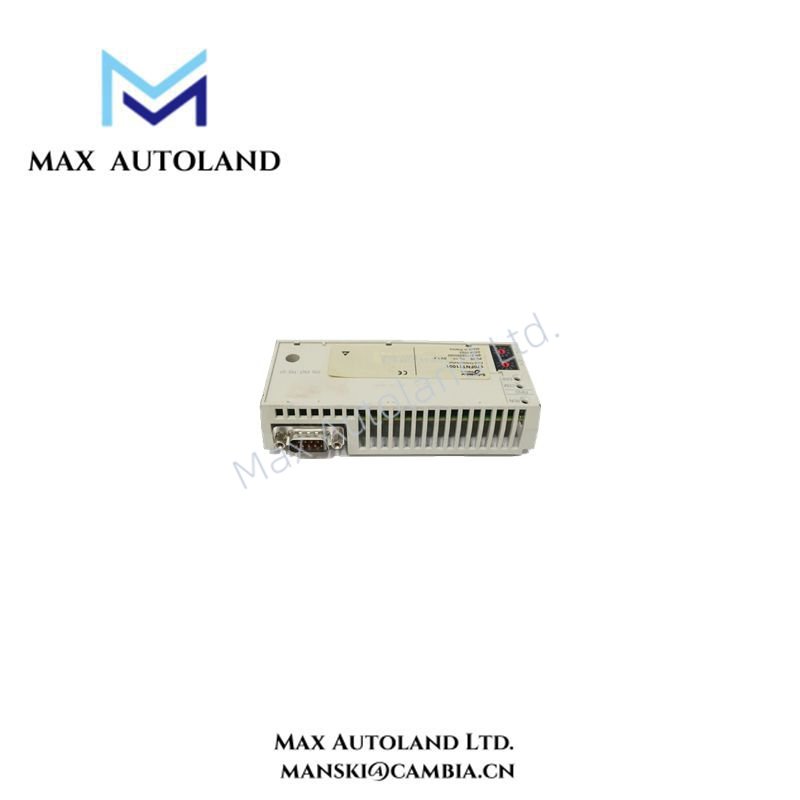

| Product Type | FIPIO Communication Adaptor |
| Bus Manager PLC | Premium |
| Structure Type | Open industrial support conforming to FIP standard |
| Communication Protocol | FIPIO |
| Access Method | Producer/Consumer principle |
| Transmission Rate | 1 Mbit/s |
| Transmission Medium | Optical fibre 50/125 μm, Optical fibre 62.5/125 μm, Twisted shielded pairs cable |
| Topology | Extension or tap-off cable |
| Number of Devices per Segment | 0–31 without repeater / 0–97 with repeater |
| Cable Distance Between Devices | Up to 5000 m |
| Fail State Options | Fallback to zero, Forcing to zero, Maintain value |
| Power Supply | From I/O base |
| Marking | CE |
| Local Signalling | 1 green LED (RUN – power/service), 1 red LED (ERR – fault), 1 yellow LED (COM – data) |
| Product Weight | 0.11 kg |
| Certifications | CE, CSA, UL |
| Protective Treatment | TC |
| Electrostatic Discharge Resistance | 4 kV (contact) / 8 kV (air) IEC 801-2 |
| Electromagnetic Field Resistance | 10 V/m (80–1000 MHz) IEC 801-3 |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | −40 °C to 85 °C |
| Relative Humidity | Up to 95 % without condensation |
| Operating Altitude | ≤ 5000 m |
FAQ
It supports FIPIO networks using optical fiber or twisted-pair cables, compatible with Modicon Momentum and Quantum systems.
Q2: How many devices can I connect per segment?
You can connect up to 31 devices per segment without repeaters or 97 devices when using repeaters.
Q3: What are the LED indicators for?
Green (RUN) shows power or active status, red (ERR) signals faults, and yellow (COM) indicates communication activity.
Q4: What is the maximum cable distance supported?
The 170FNT11001 allows up to 5000 m between devices, depending on cable type and topology.
Q5: Is it suitable for high-temperature environments?
Yes, it operates safely between 0 °C and 60 °C and stores between −40 °C and 85 °C.
