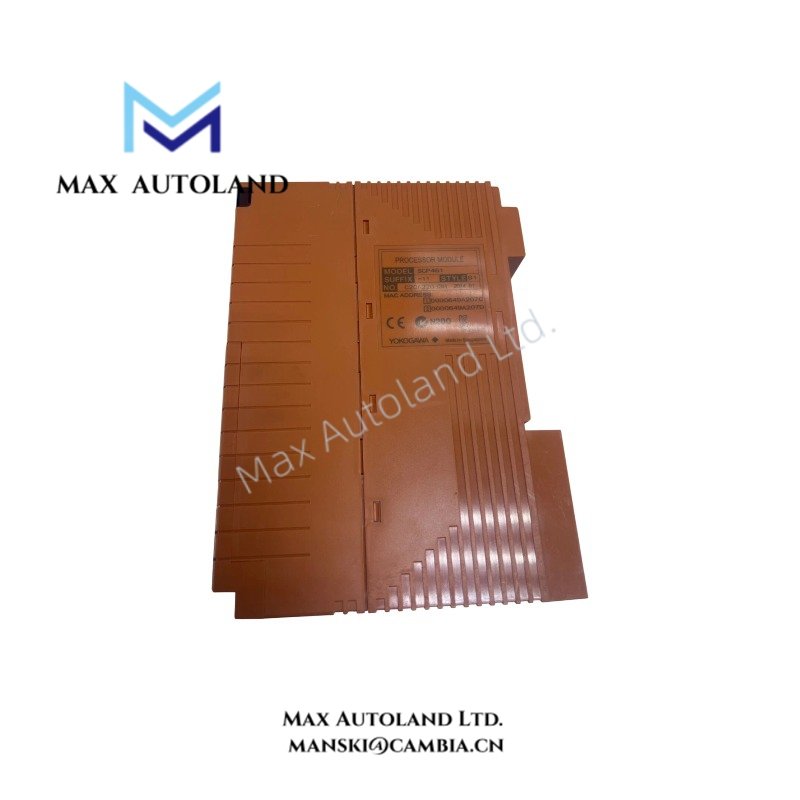

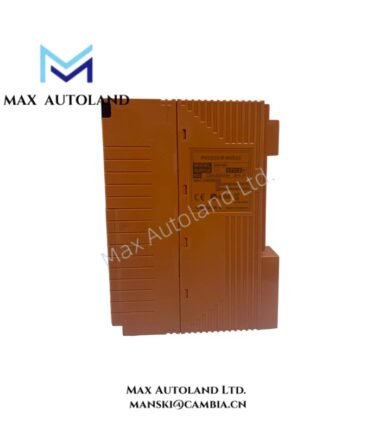

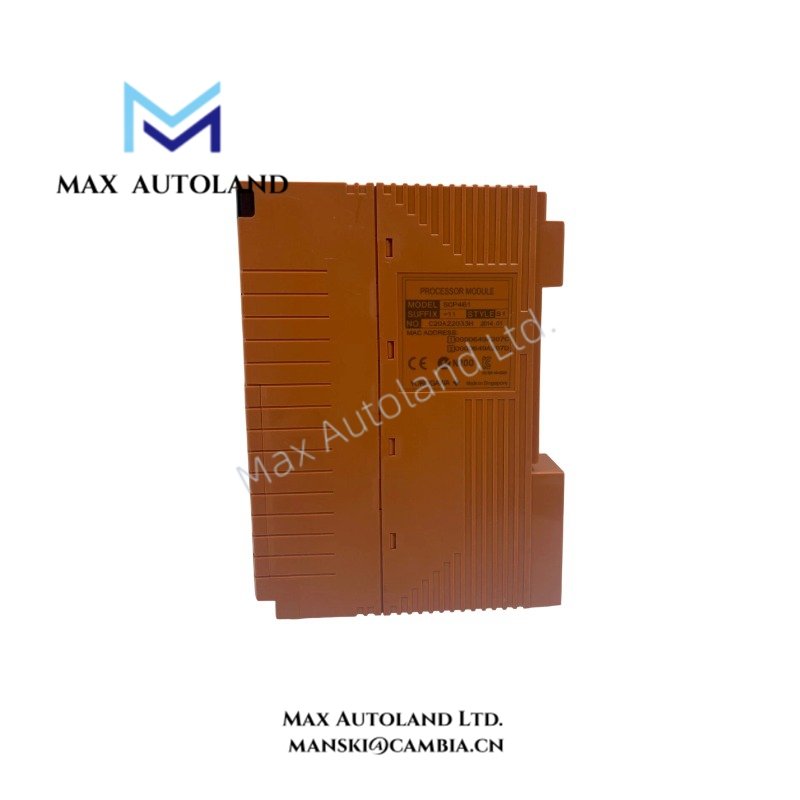

Yokogawa SCP461-11 S1 Safety Control Processor Module

Hardware Specifications

ProSafe-RS Network Communication and Processor Redundancy

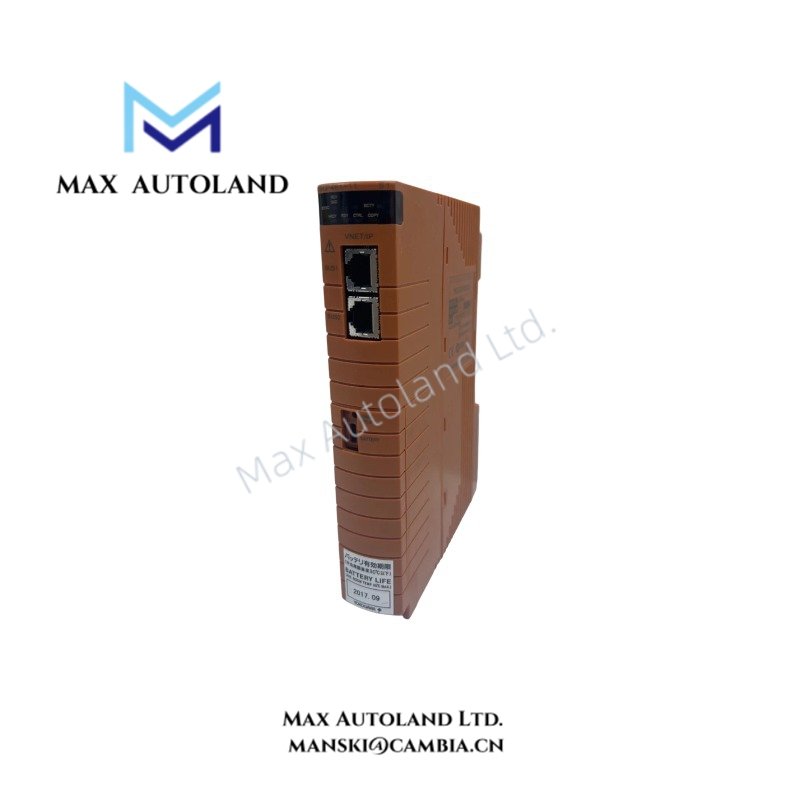

The SCP461-11 S1 provides two Vnet/IP network connections for communication within the ProSafe-RS control architecture. Each Ethernet interface uses 100BASE-TX physical signaling, full-duplex transmission and an RJ45 connector. The specified maximum controller-to-switch cable distance is 100 m.

For redundant operation, the supplied configuration data specifies two identical processor modules. Confirm the complete model suffix, hardware style, station configuration and software compatibility before installing a redundant pair. The available data does not specify processor switchover time or network recovery latency.

Frequently Asked Questions (FAQ)

Q: Which memory types store application programs and operating data?

A: The application program uses flash memory, while operating data uses nonvolatile memory (NVRAM). The supplied information does not specify memory capacity.

Q: What are the network interface requirements for the SCP461-11 S1?

A: The module has two Vnet/IP connections using 100BASE-TX Ethernet, RJ45 connectors and full-duplex transmission at 100 Mbps. The specified maximum cable distance from controller to switch is 100 m.

Q: What battery maintenance interval applies to the S9185FA battery pack?

A: The supplied specifications state 3 years at an average ambient temperature up to 30 deg C, 18 months up to 40 deg C, and 9 months up to 50 deg C. Follow the manufacturer’s maintenance procedures and verify the installed battery condition.

Field Installation Guidelines

• Verify the complete SCP461-11 S1 model designation and compatibility with the target SSC60S or SSC60D safety control unit.
• Confirm the required station hardware, application software and processor configuration before installation.
• For redundant installations, use two identical processor modules with matching hardware and software requirements.
• Connect Vnet/IP interfaces using compatible CAT5e or higher network cabling and RJ45 connectors. Keep the controller-to-switch cable length within the specified 100 m maximum.
• Route network cables separately from power conductors and high-noise switching circuits where practical.
• Apply the manufacturer’s grounding and shielding requirements for the installed control system. Do not assume an undocumented shield termination arrangement.
• Check the front-panel LEDs and configuration switch settings against the approved system configuration.
• Inspect the S9185FA lithium battery and maintenance records. Apply the specified replacement interval for the actual average ambient temperature.
• Follow the manufacturer’s procedures for processor replacement, application loading and redundant-system maintenance. Do not assume hot-swap support or a specific switchover time without documentation.
