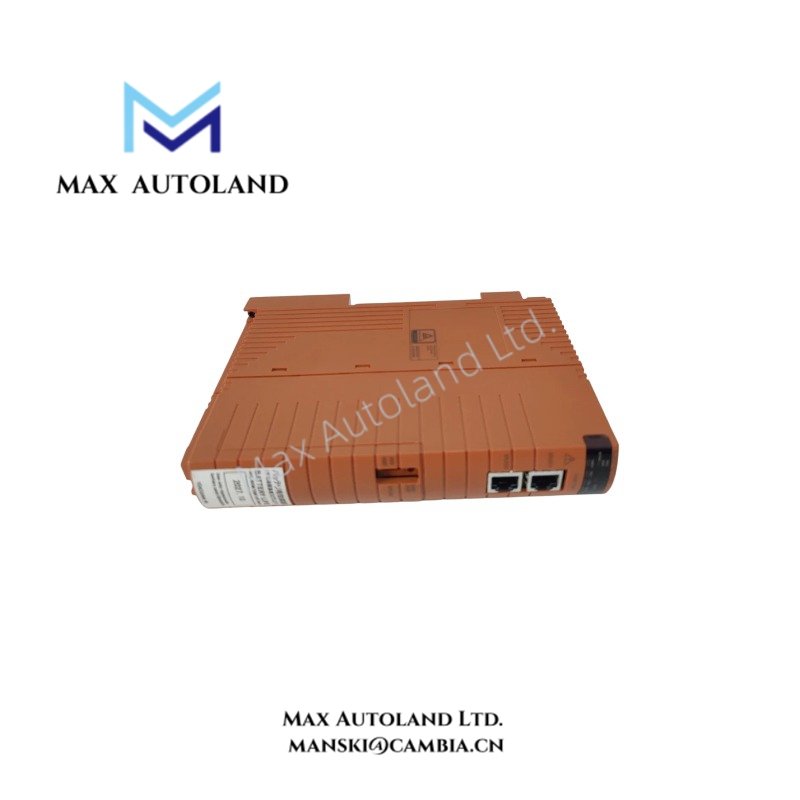

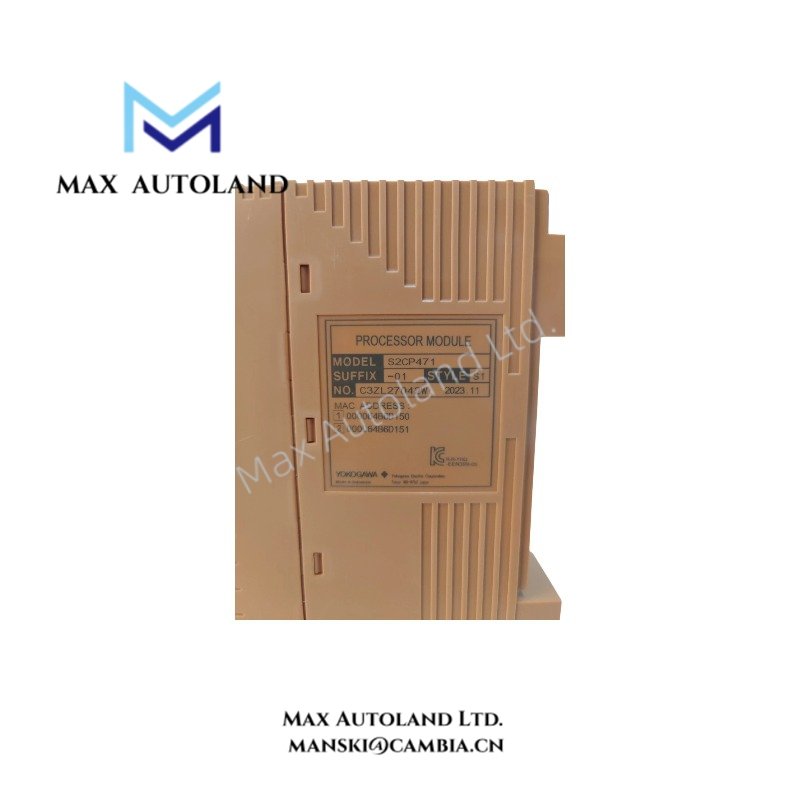

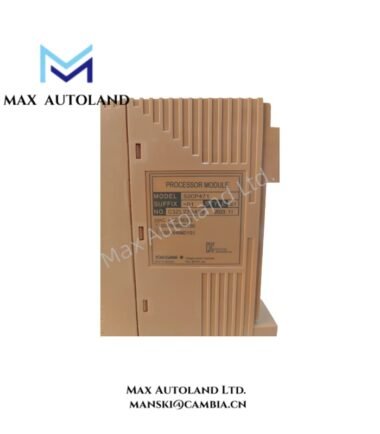

S2CP471-01 Yokogawa ProSafe-RS Safety Processor Module

Hardware Specifications

Safety Controller Architecture and Redundancy

The S2CP471-01 operates as a processor within the ProSafe-RS safety control system. In a duplexed configuration, two S2CP471 modules provide the specified dual-processor arrangement. Actual redundancy behavior, diagnostic coverage, and transfer timing depend on the controller configuration and applicable system documentation.

The module can replace an SCP461 processor in a supported installation. However, the replacement requires verification of the safety control unit model, system software revision, hardware compatibility, and upgrade procedure. The S2CP471KT processor module upgrade kit is identified in the supplied information as the kit for this replacement.

Do not assume that the -01 suffix alone establishes explosion protection, environmental ratings, or other hardware options. Confirm these attributes using the manufacturer’s ordering information and applicable technical manual.

Frequently Asked Questions

Q: Can the S2CP471-01 replace an SCP461 processor?

A: Yes, the supplied documentation identifies the S2CP471 as a replacement for the SCP461. Verify the target safety control unit, software revision, and required upgrade components before replacement.

Q: Does the S2CP471-01 support dual redundancy?

A: Yes. Two S2CP471 modules can operate in a dual-redundant configuration on a duplexed safety control unit. Specific switching behavior and redundancy diagnostics must be confirmed in the applicable system manual.

Q: Is the S2CP471-01 certified for SIL 3 applications?

A: The supplied description does not establish the certification status of this exact hardware revision. Check the applicable ProSafe-RS safety manual and certification documents before using the module in a SIL-rated application.

Field Installation Guidelines

1. Confirm that the target safety control unit supports the S2CP471-01 and that the required system software and upgrade kit are available.
2. Follow the manufacturer’s shutdown, isolation, and module replacement procedures before removing the existing processor.
3. Use appropriate electrostatic discharge precautions when handling the module and its connectors.
4. Inspect the mounting interface and connector contacts for damage, contamination, or foreign material before installation.
5. For duplexed installations, verify the designated module positions and redundancy configuration against the system drawings.
6. After installation, follow the approved commissioning procedure to verify module diagnostics, controller status, communication, and safety application operation.
7. Record the installed hardware revision, software revision, configuration changes, and commissioning results in the maintenance documentation.
