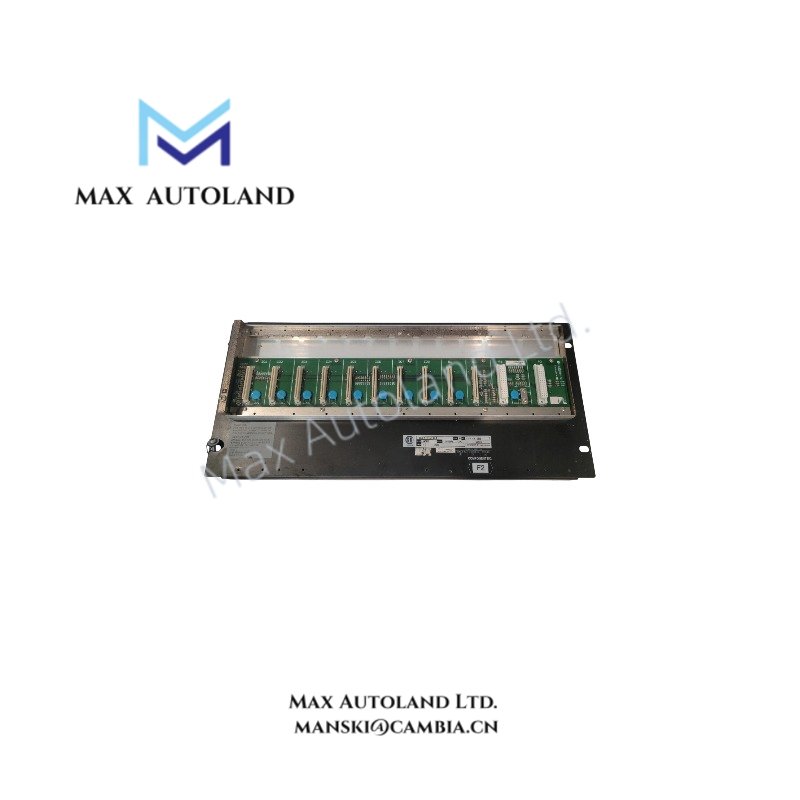

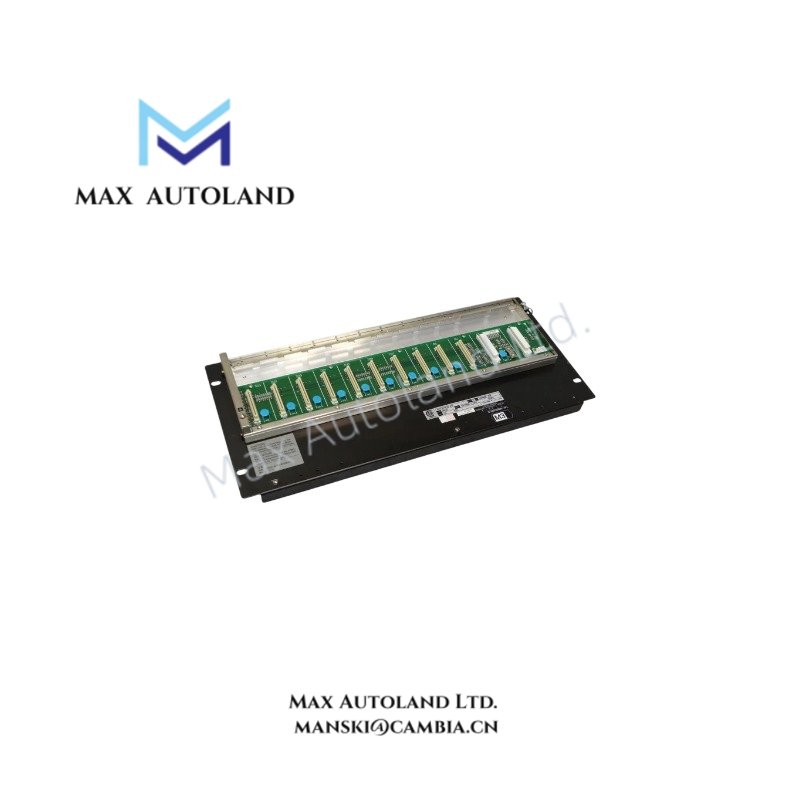

Overview
Suffix Breakdown & Model Matrix
The supplied documentation identifies the complete ordering code ANB10D-410/CU2T/NDEL. No official suffix definition or ordering matrix is provided in the source material; therefore, no suffix interpretation is included.

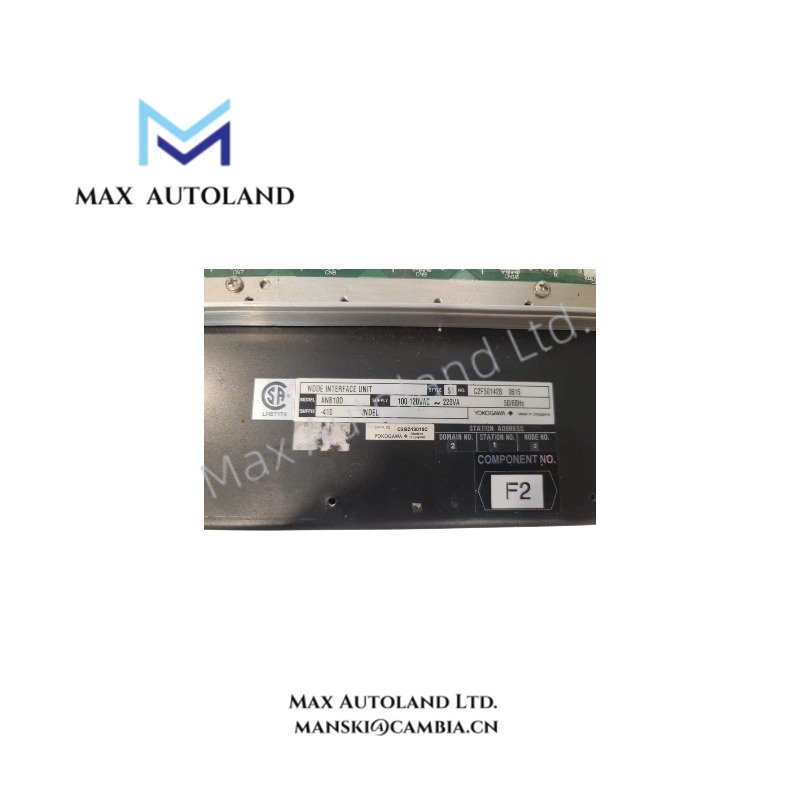

Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ANB10D-410/NDEL |
| Brand | Yokogawa |
| Origin | Not specified |
| Product Type | ESB Bus Node Unit |
| Communication Interface | ESB Bus |
| Function | Field I/O communication and I/O module power distribution |
| Compatible Controllers | AFV10, AFV30, AFV40, AFF55 (with ESB Bus Couple Module EC401 or EC402) |
| Compatible Bus Couple Modules | EC401, EC402 |
| Node Capacity (AFV30) | Maximum 3 ESB/Optical ESB Bus Node Units per FCU |
| Node Capacity (AFV40 + LFS1700) | Maximum 9 Node Units per FCU |
| Node Capacity (AFV40 + LFS1700 + LFS1750-V2) | Maximum 13 Node Units per FCU (up to 11 units in one cabinet) |
| AFV10 Configuration | Up to 14 ER Bus Node Units, 14 ESB Bus Node Units, maximum 9 ESB Bus Node Units connected per FCU depending on configuration |
| Mounting | 19-inch rack mounting, M5 x 4 screws, insulation bush supplied |
| Power Supply Options | 100 to 120 VAC, 50/60 Hz; 220 to 240 VAC, 50/60 Hz; 24 VDC |
| Power Consumption | 200 VA / 120 W (100 to 120 VAC); 230 VA / 120 W (220 to 240 VAC); 5.5 A (24 VDC) |
| Weight | 10 kg including 8 I/O modules |
| Operating Temp | Not specified |
| Dimensions | Not specified |
| Safety Compliance | CSA, CE |
| EMC Compliance | CE, C-Tick, KC |
| Hazardous Area Certifications | CSA Non-Incendive, FM Non-Incendive, Type n (depending on power supply option) |
Channel Isolation and Process Control Integration
The ANB10D functions as the ESB bus interface between field-mounted I/O modules and the FCU. Signal transmission is performed through the dedicated ESB bus while power is distributed internally to the installed I/O modules.
For FCU connection, an EC401 or EC402 ESB Bus Couple Module is required. The couple modules are installed in Slot 7 and Slot 8 of the FCU. For a single ESB bus configuration, one EC401 or EC402 is installed in Slot 7 while Slot 8 remains unoccupied.
The supported FCU platform determines the maximum number of connectable ESB Bus Node Units and ER Bus Node Units. Expansion packages increase the allowable node count according to the controller configuration.
Frequently Asked Questions
Q: Does the ANB10D support redundant ESB bus interfaces?
A: Redundant communication requires EC401 or EC402 Bus Couple Modules installed in both Slot 7 and Slot 8 of the FCU. For a single configuration, only Slot 7 is populated.
Q: Can the unit operate from different power sources?
A: Yes. The hardware is available for 100 to 120 VAC, 220 to 240 VAC, or 24 VDC power supply configurations as specified by the ordering suffix.
Q: Is the maximum number of Node Units fixed for every FCU model?
A: No. The allowable quantity depends on the FCU model and whether optional Node Expansion or Application Capacity Expansion packages are installed.
Field Installation Guidelines
- Install the unit in a standard 19-inch rack using the specified M5 mounting screws and supplied insulation bushes.
- Verify that the selected power supply version matches the available site power before energizing the node.
- Install EC401 or EC402 Bus Couple Modules in the required FCU slots before connecting the ESB bus.
- Route ESB communication cables separately from high-voltage power wiring to minimize electrical interference.
- Maintain proper cabinet grounding and cable shield termination according to plant grounding practice.
- Confirm total Node Unit quantity does not exceed the supported FCU configuration before commissioning.
