Overview

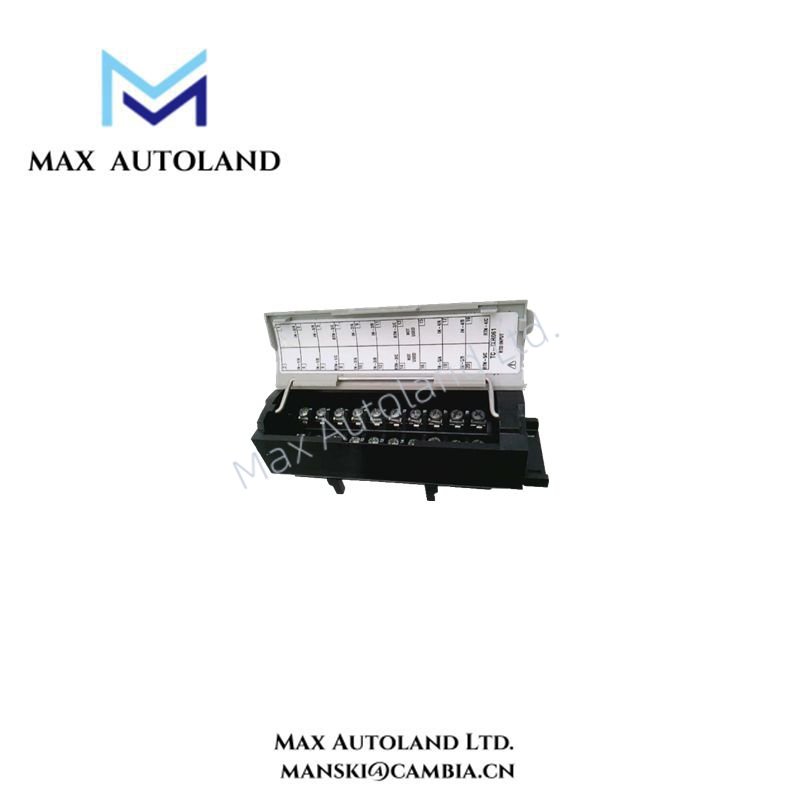

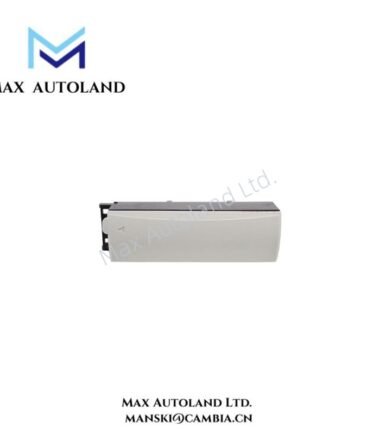

The Honeywell TC-TBCH is a 36-pin terminal block module designed for use with Honeywell’s Experion PKS C200 I/O modules. It provides a reliable and efficient solution for connecting field wiring to your control system, ensuring organized and secure wiring connections.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | TC-TBCH |
| Product Type | 36-Pin Terminal Block |
| Wire Size Range | 1 wire: 16–22 AWG (0.64–1.30 mm) |
| Voltage Rating | 300 V maximum |
| Current Rating | 15 A per circuit |
| Temperature Range | −40°C to +105°C |
| Contact Resistance | <10 mΩ |
| Insulation Resistance | >100 MΩ at 500 V DC |
| Dielectric Strength | Withstands 2000 V AC for 1 minute without breakdown |
| Weight | 0.14 kg |
| Shipping Weight | 1.5 kg |
