Overview

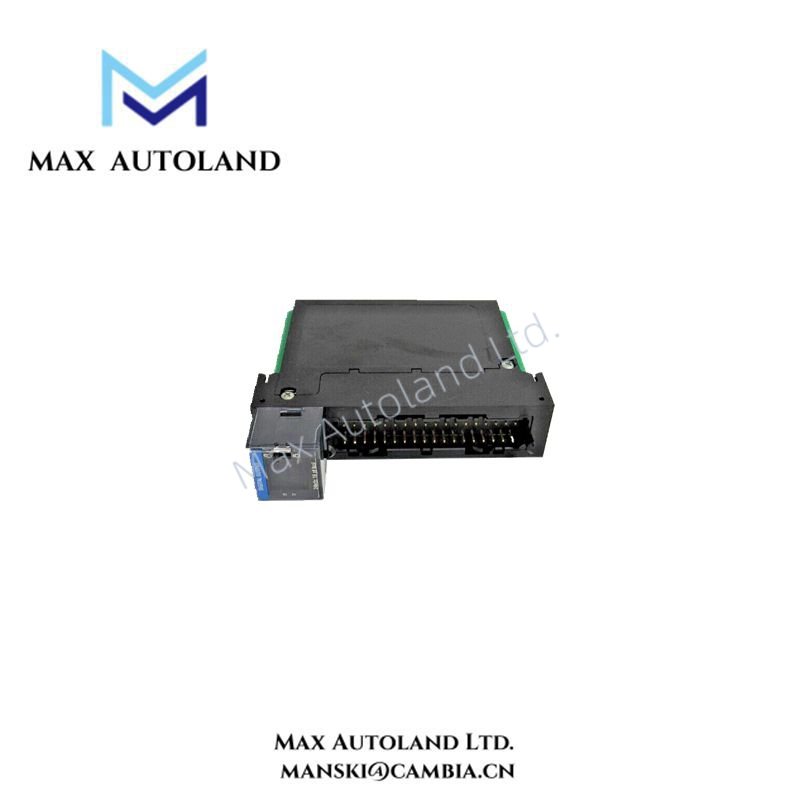

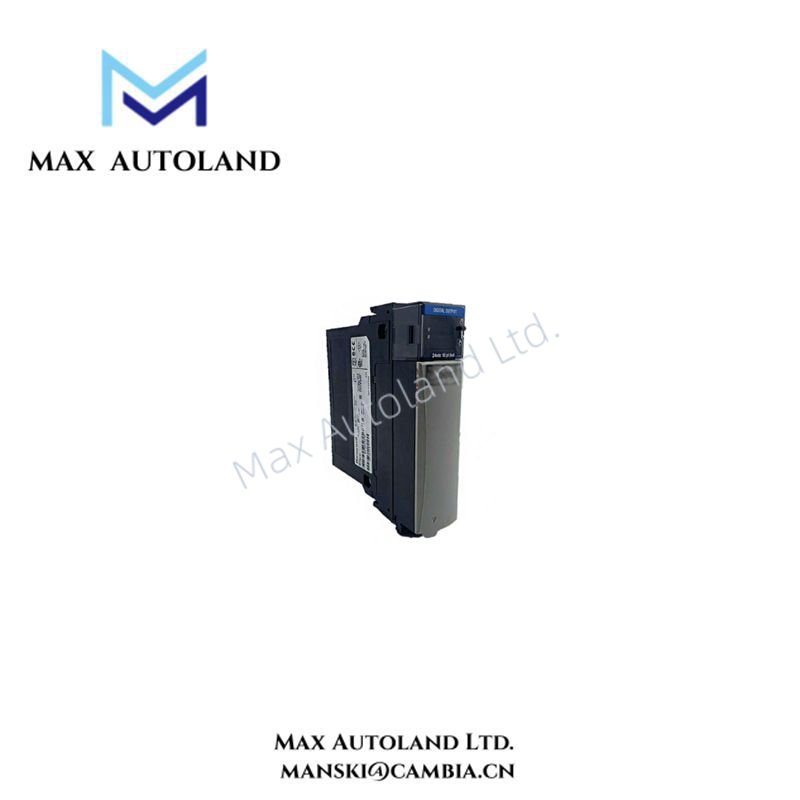

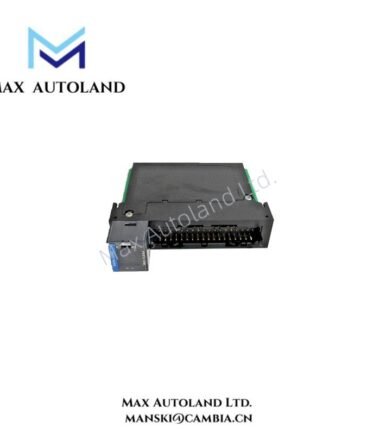

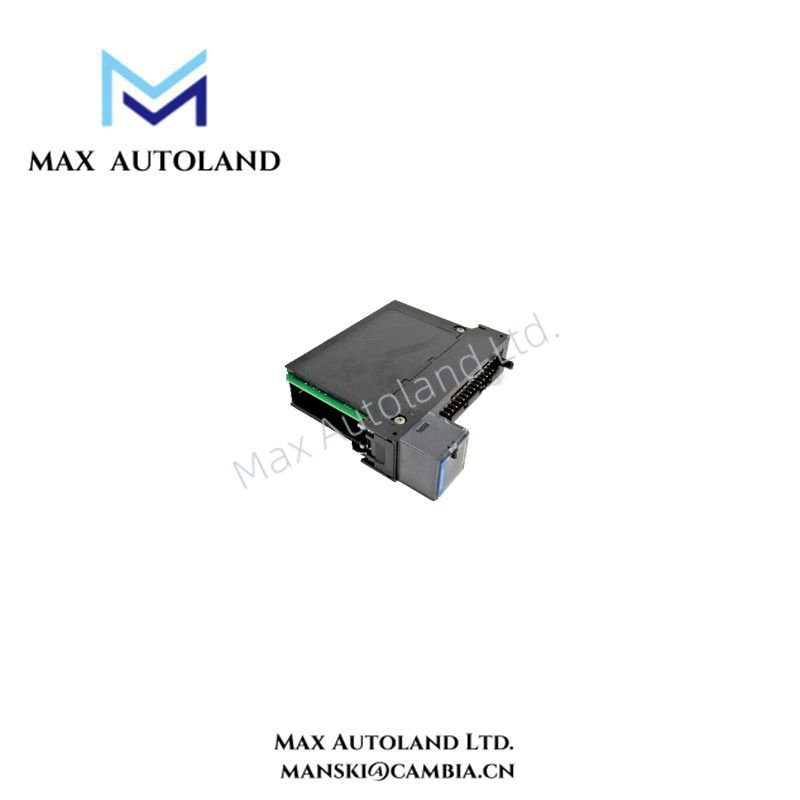

The Honeywell TC-ODJ161 (part number 51309512-175) is a high-performance digital output module designed for the C200 series Distributed Control System (DCS). It provides 16 isolated channels capable of delivering 24 VDC output, enabling precise control of relays, actuators, solenoids, and other field devices in industrial applications.
Engineered for durability, the TC-ODJ161 features fast switching with minimal delay, low power dissipation, and robust overcurrent protection. Its compact size and clear terminal layout simplify installation and maintenance. The module supports seamless integration with Honeywell C200 networks, enhancing operational efficiency and reliability.
Specification
| Parameter | Specification |
| Number of Points | 16(individually isolated) |
| Output Voltage Range | 10-30 VDC |
| Output Current Rating Per Point Per Module |
2.0 A max@30℃&1.0 A max @60℃ 8.0A max@30℃&4.0 A max@60℃ |
| Surge Current | 4 A for 10 ms each,repeatable every 2 sec |
| On-State Current(Minimum) | 1.0 mA per output |
| On-State Voltage Drop(Maximum) | 1.2 VDC@2.0A |
| Off-State Leakage Current(Maximum) | 0.5mA per point |
| Output Signal Delay (Maximum) Off to On On to Off |
1.0 ms max 2.0 ms max |
| Power Dissipation | 4.7 W max |
| Backplane Current | See Module Power Consumption Data,page 46. |
| Isolation Voltage | 1500 VAC(RMS)output to backplane |
| Connection Terminal Blocks | TC-TBCH,36-position terminal block |
FAQ
Q1: Is the TC-ODJ161 brand new and original?
A1: Yes, all Honeywell TC-ODJ161 units are full new, original factory products.
Q2: How soon will my order ship?
A2: We have stock available. Shipping typically occurs within 3 days to 2 weeks, depending on order quantity.
Q3: What logistics options are available?
A3: We commonly ship via DHL, FedEx, or UPS for fast and secure delivery.
Q4: Can I return the module if there is a quality issue?
A4: Yes, we support returns within 30 days for any product quality concerns.
Q5: What environments can the TC-ODJ161 operate in?
A5: It functions reliably in industrial environments, with operating temperatures from 0°C to 55°C and robust protection against electrical noise and overcurrent.
