Overview

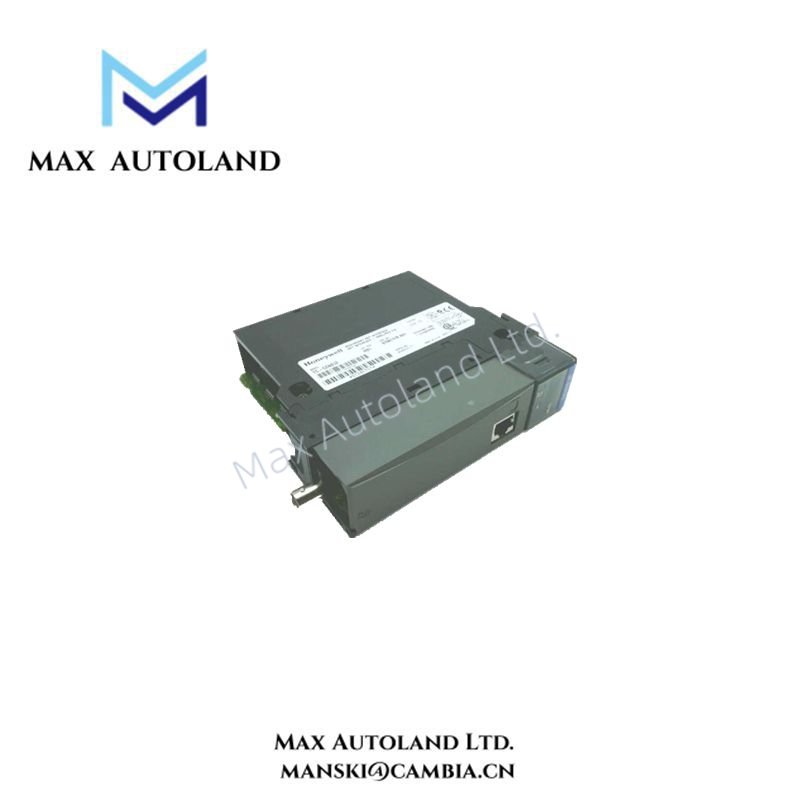

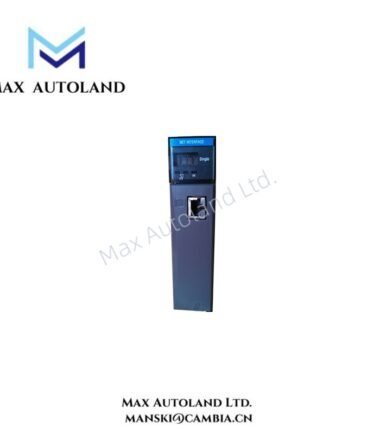

The Honeywell TC-CCN012 is a versatile ControlNet interface module built for Honeywell’s C200 control systems. It actively facilitates seamless communication between devices on a ControlNet network, ensuring reliable data transmission and enhancing overall system integration.
Furthermore, the ControlNet Interface module (CNI) enables direct communication along the ControlNet network. It connects the Server and its associated databases to the C200 Controllers, and links the C200 Controllers to the I/O Modules. In addition, the ACE supervisory controller participates in the communication path whenever it connects to the supervisory ControlNet, further optimizing operational efficiency and real-time data exchange.
Specification
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | TC-CCN012 |
| Product Type | Dual-Media ControlNet Interface Module |
| Input Voltage | 24 V DC ±10% |
| Power Consumption | < 5 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0% to 95% (non-condensing) |
| Vibration Resistance | 5 g, 10 Hz to 2 kHz |
| Shock Resistance | 50 g, 11 ms |
| Weight | 0.5 kg |
| Dimensions (L × W × H) | 100 mm × 160 mm × 25 mm |
| Network Type | ControlNet |
| Media Types | Twisted Pair (DB9 male connector), Fiber Optic (SC or ST connectors) |
| Communication Speed | 5 Mbps |
| Node Addressing | Supports up to 99 nodes per network segment |
| Data Transfer Protocol | CIP (Common Industrial Protocol) |
| Redundancy Configuration | Automatic failover between twisted pair and fiber optic media |
| Certifications | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, Ex nA II C T4; CE, UL, cUL, ATEX, IECEx |
