Overview

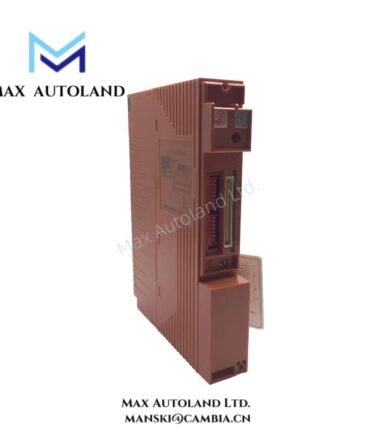

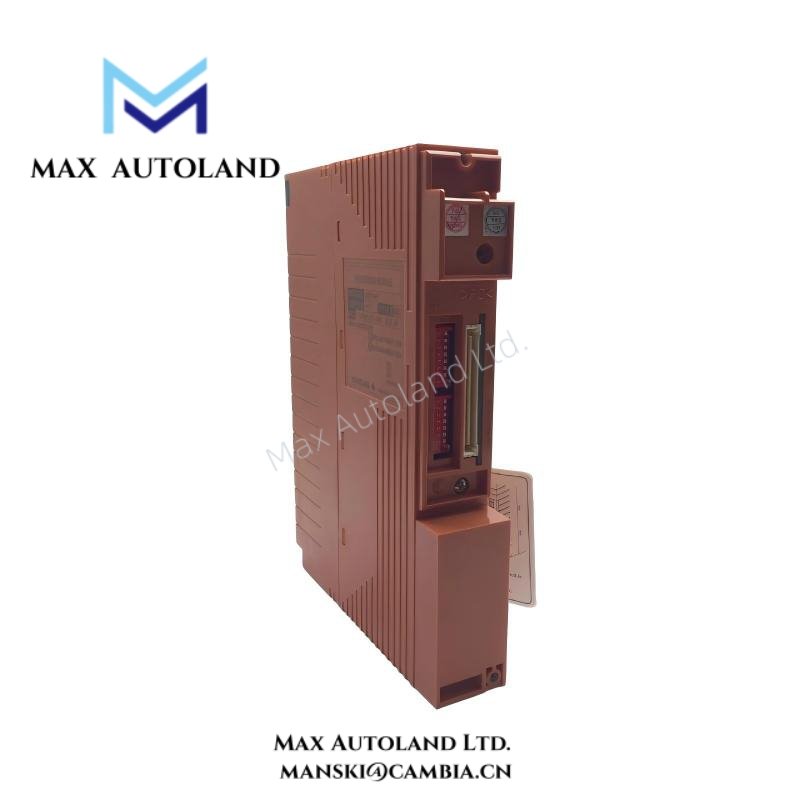

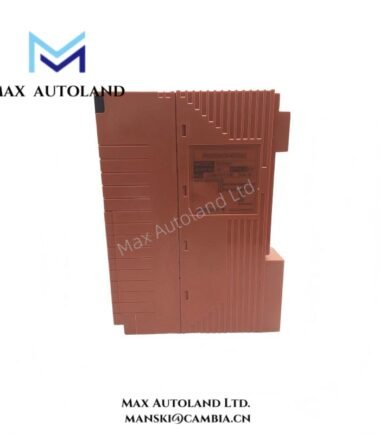

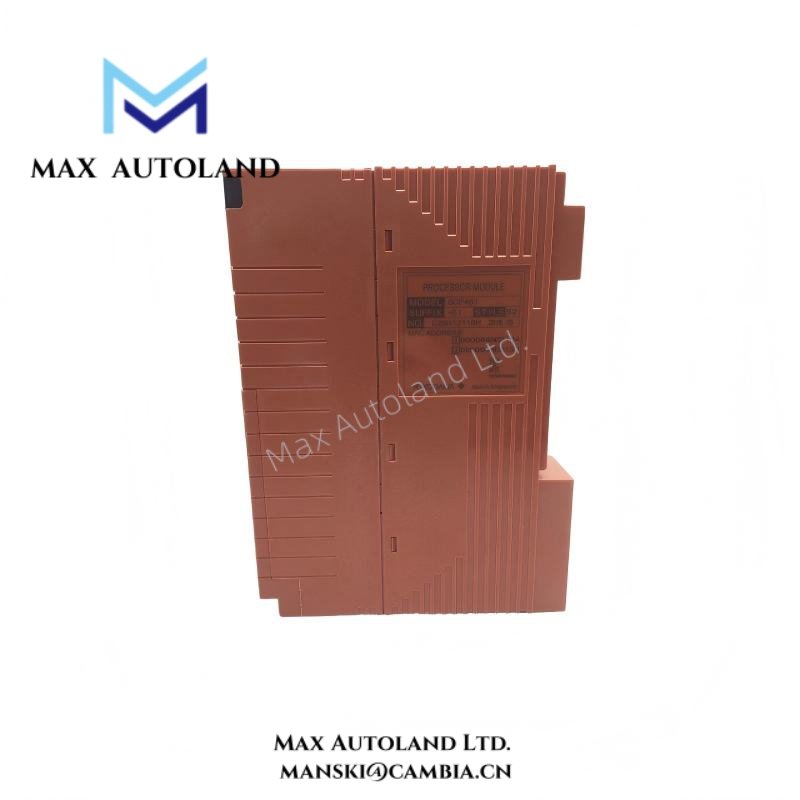

The SCP461-E1 YOKOGAWA CPU Processor Module delivers reliable and high-speed processing for Centum XL distributed control systems. Engineers integrate SCP461-E1 modules into automation systems to execute deterministic real-time control, communication, and monitoring tasks. Consequently, industrial operations maintain stable and continuous process control across chemical, power, and oil & gas facilities. Moreover, SCP461-E1 features embedded processing architecture that ensures consistent performance under continuous workloads.
Specification
| Specification | Details |
|---|---|
| Manufacturer | YOKOGAWA |
| Model | SCP461-E1 |
| Series | Centum XL Series |
| Module Type | CPU Processor Module |
| Core Functionality | Executes real-time process control, communication tasks, and system monitoring |
| Processor Architecture | High-performance embedded CPU |
| Clock Speed | 250 MHz |
| Memory | 256 MB RAM, 128 MB Flash storage |
| Input/Output Interfaces | 1 × Fieldbus port, 2 × RS-232 serial ports, 1 × Ethernet interface |
| Number of I/O Connections | Supports up to 1024 digital and analog I/Os per module depending on chassis configuration |
| Redundancy | CPU hot-swap support, backup CPU configuration |
| Power Supply | 24 VDC ±10% |
| Power Consumption | 30 W typical, 35 W maximum |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–70°C |
| Humidity | 10–95% non-condensing |
| Dimensions (W × H × D) | 180 × 120 × 45 mm |
| Weight | 1.0 kg |
| Mounting Type | Rack-mounted in Centum XL chassis |
| Standards Compliance | CE, UL, RoHS compliant |
| Diagnostics & Monitoring | Built-in CPU health monitoring and fault reporting |
| Environmental Protection | Non-condensing, industrial-grade protection |
| Safety Features | Overcurrent and overvoltage protection, module-level isolation |
| Communication Protocols | Centum XL fieldbus protocol, Modbus TCP/IP supported |
FAQ
Q1: Is the SCP461-E1 module new and original?
A1: Yes, the SCP461-E1 is fully new, factory-original, and supplied sealed.
Q2: How long does it take for delivery?
A2: Stock is available, and delivery usually occurs within 3 days to 2 weeks, depending on order size.
Q3: Which shipping methods are used?
A3: We commonly use DHL and other reliable logistics providers for fast international delivery.
Q4: Can I return the module if there is a defect?
A4: Yes, we support returns within 30 days for any quality issues.
Q5: What is the maximum number of I/O connections supported?
A5: The SCP461-E1 supports up to 1024 digital and analog I/O channels, depending on the chassis configuration.
Q6: What are the operating conditions for the module?
A6: The module operates in temperatures between 0–55°C with 10–95% non-condensing humidity.
