Overview

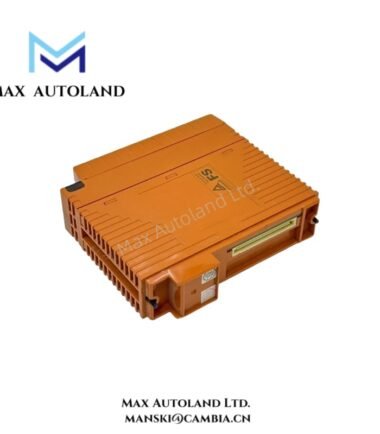

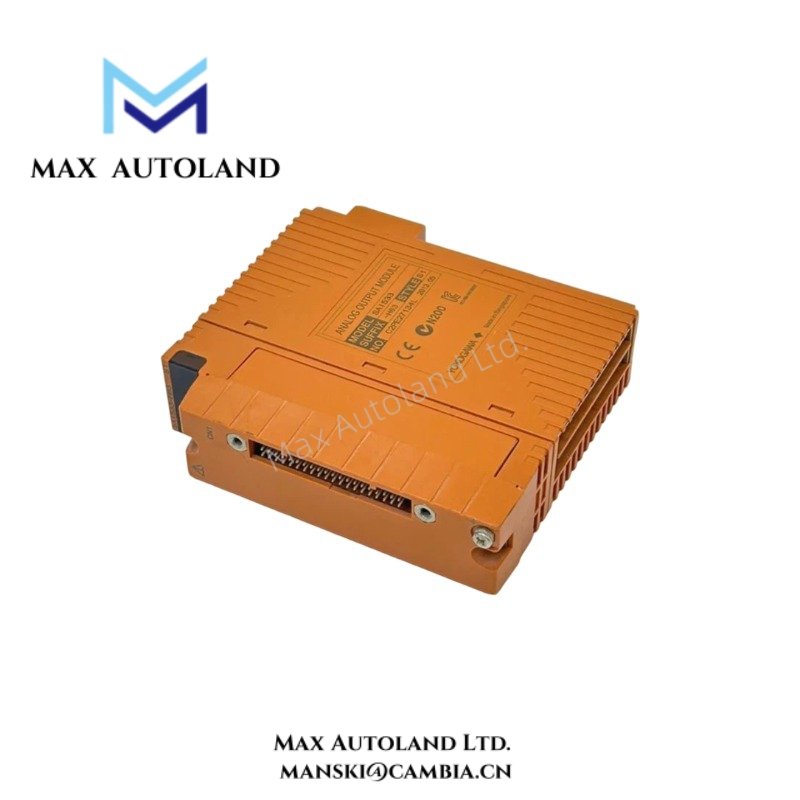

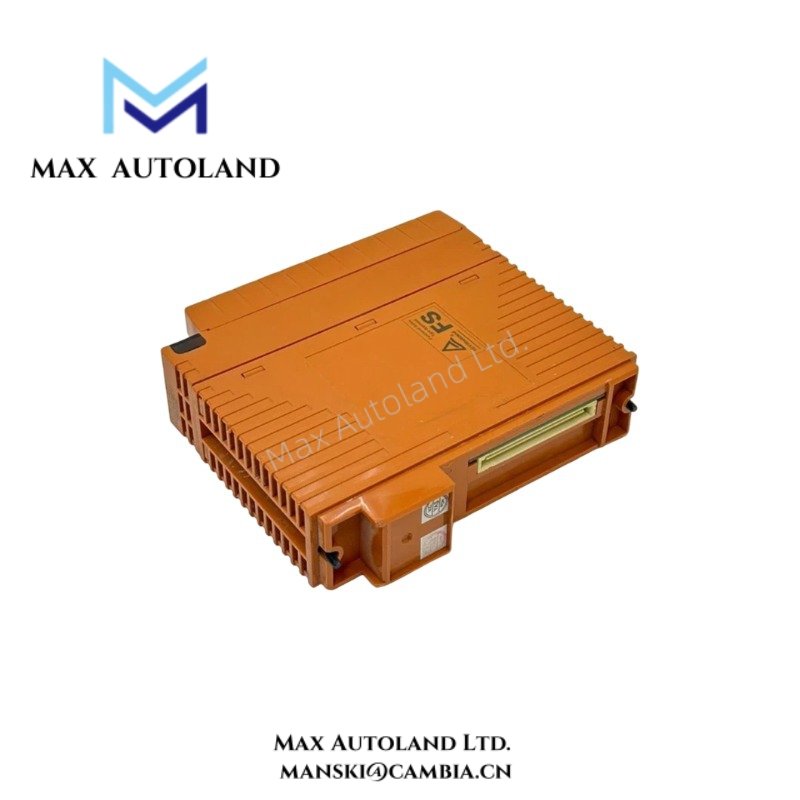

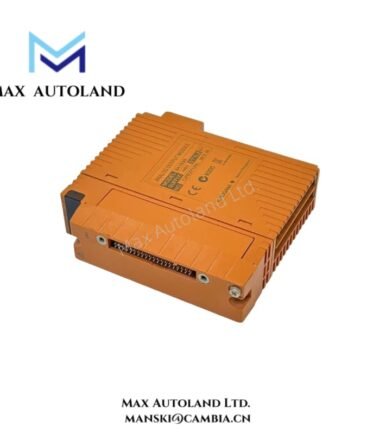

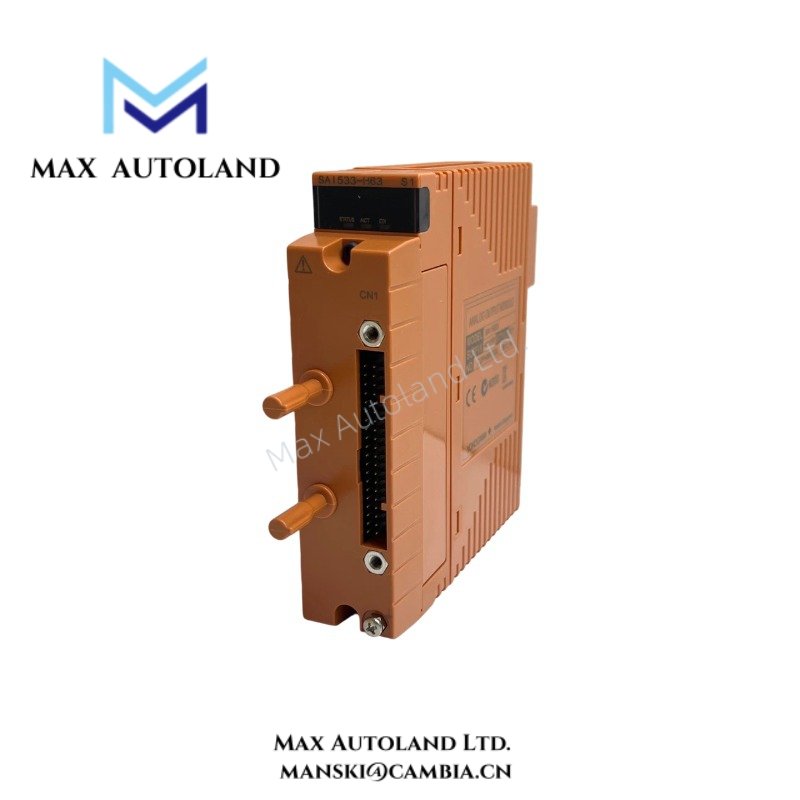

SAI533-H63 from YOKOGAWA delivers precise analog current output for industrial automation and process control systems.
Moreover, the module supports multiple output channels for efficient control of field actuators and devices.
Engineers use SAI533-H63 to generate stable 4–20 mA signals for valves, drives, and instrumentation.
Additionally, the module integrates seamlessly with CENTUM and other YOKOGAWA distributed control systems.
Therefore, users achieve accurate output control while maintaining system stability and operational efficiency.
Specification
| Parameter | Specification |
|---|---|
| Model | SAI533-H63 |
| Manufacturer | YOKOGAWA |
| Module Type | Current Output Module |
| Output Channels | 8 channels |
| Output Signal Range | 4–20 mA |
| Load Resistance | 0 to 600 Ω |
| Output Accuracy | ±0.1% of full scale |
| Resolution | 16-bit D/A conversion |
| Output Update Rate | Approx. 10 ms per channel |
| Isolation Method | Electrical isolation between channels and system |
| Signal Stability | Low ripple and high linearity |
| Power Supply | Supplied via base unit |
| Power Consumption | Approx. 3 W |
| Energy Storage | Internal capacitors for output stabilization |
| Interface Type | Backplane connection to system |
| Mounting Method | Rack-mounted installation |
| Slot Requirement | Single slot |
| Dimensions (W × H × D) | Approx. 32 × 130 × 107 mm |
| Weight | Approx. 0.3 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| EMC Compliance | Meets industrial EMC standards |
| Cooling Method | Natural convection |
FAQ
Q1: How many output channels does SAI533-H63 provide?
A1: SAI533-H63 provides 8 independent current output channels for control applications.
Q2: What output signal range does the module support?
A2: The module supports a standard 4–20 mA analog current output range.
Q3: What is the output accuracy of SAI533-H63?
A3: The module provides high accuracy, typically ±0.1% of full scale.
Q4: What is the product condition and availability?
A4: The product is brand new original, in stock, and ships within 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and other reliable international logistics providers.
Q6: How long does shipping take?
A6: Shipping takes between 3 days and 2 weeks depending on order size.
Q7: Do you support returns if there are quality issues?
A7: Yes, we support returns within 30 days if any quality problems occur.
