Overview

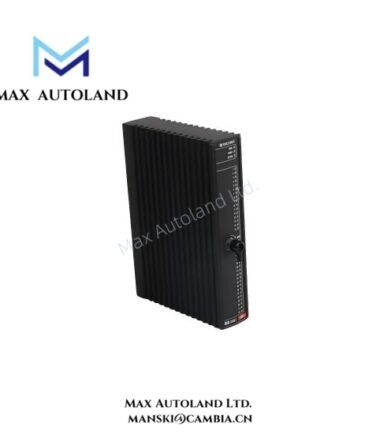

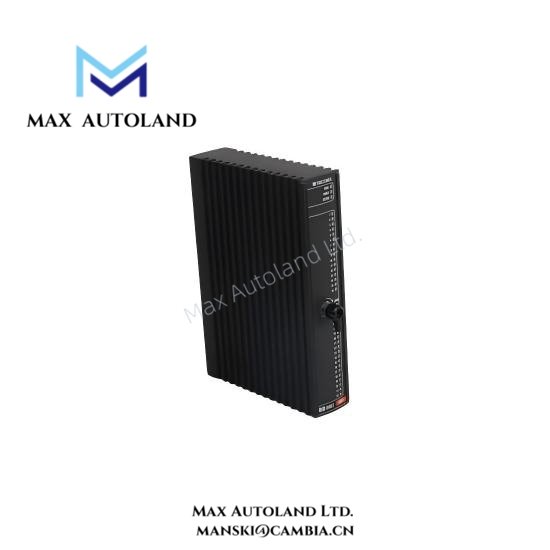

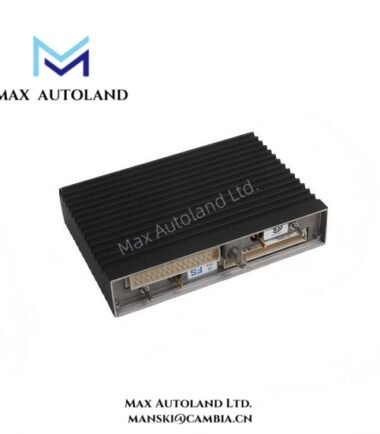

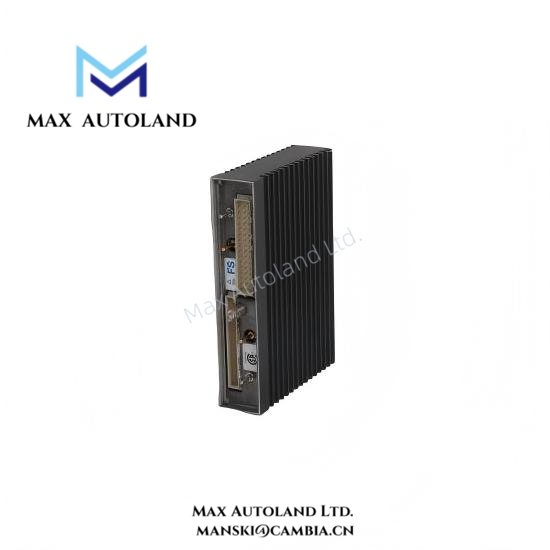

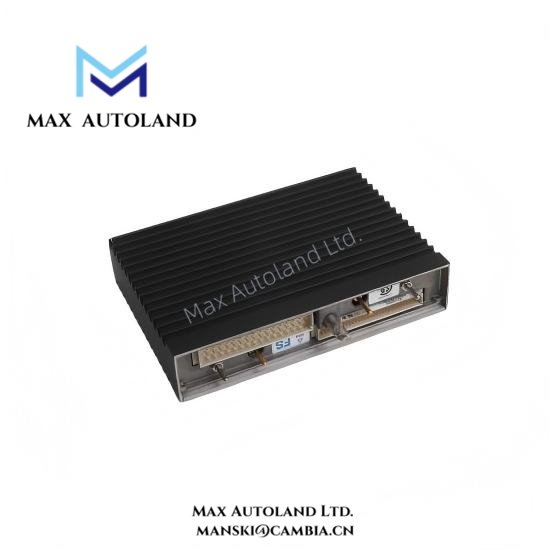

The RO3451 module provides relay-based switching interfaces between Tricon safety controllers and external field equipment.
Additionally, engineers deploy RO3451 modules to activate emergency shutdown valves, motor starters, and alarm devices.
Furthermore, the RO3451 integrates seamlessly with Tricon V9, V10, and V11 safety instrumented systems.
Therefore, operators maintain reliable output control even during demanding industrial process conditions.
The RO3451 uses triple modular redundancy voting logic to ensure reliable relay switching decisions.
Consequently, the module prevents unsafe output activation when a single component failure occurs.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model | RO3451 |
| Module Category | Safety Relay Output Module |
| System Compatibility | Tricon Safety Instrumented System |
| Output Channels | 8 independent relay outputs |
| Relay Type | Electromechanical Form-C SPDT contacts |
| Contact Material | Silver alloy industrial relay contacts |
| Maximum Switching Current | 5 A per channel |
| Maximum Switching Voltage | 250 VAC / 30 VDC |
| Maximum Switching Power | 1250 VA (AC) / 150 W (DC) |
| Output Isolation | Channel-to-channel electrical isolation |
| Isolation Voltage | Approximately 4000 V RMS |
| Output Response Time | Typically less than 10 milliseconds |
| Diagnostic Monitoring | Continuous relay coil and contact monitoring |
| Status Indicators | LED indicator for each output channel |
| Internal Redundancy | Triple modular redundancy voting logic |
| Backplane Interface | High-speed Tricon system backplane connector |
| Field Wiring Interface | External termination panel or cable interface |
| Power Consumption | Supplied by Tricon chassis backplane |
| Operating Voltage | Internal regulated supply from controller chassis |
| Hot Swap Capability | Supported during controller operation |
| Fault Detection | Open circuit, coil fault, and relay diagnostic detection |
| Safety Certification | SIL3 compliant according to IEC 61508 |
| Electromagnetic Compliance | Designed for industrial EMI environments |
FAQ
Q1: Is the RO3451 relay output module brand new and original?
A1: Yes, the RO3451 modules we supply are brand-new original factory products with reliable quality assurance.
Q2: Do you keep RO3451 modules in stock?
A2: Yes, we usually keep RO3451 modules in stock, which allows fast order confirmation and preparation.
Q3: How long does shipping take after placing an order for RO3451?
A3: We normally arrange shipment within 3 days to 2 weeks depending on the order quantity.
Q4: Which logistics carriers do you use for delivering RO3451 modules?
A4: We commonly ship RO3451 modules through international logistics companies such as DHL and other reliable couriers.
Q5: What switching capacity does the RO3451 relay output support?
A5: Each channel of RO3451 supports switching up to 5A at 250VAC or 30VDC loads.
Q6: What should customers do if a RO3451 module has a quality issue?
A6: If a quality issue occurs, we support returns within 30 days according to our after-sales policy.
