Overview

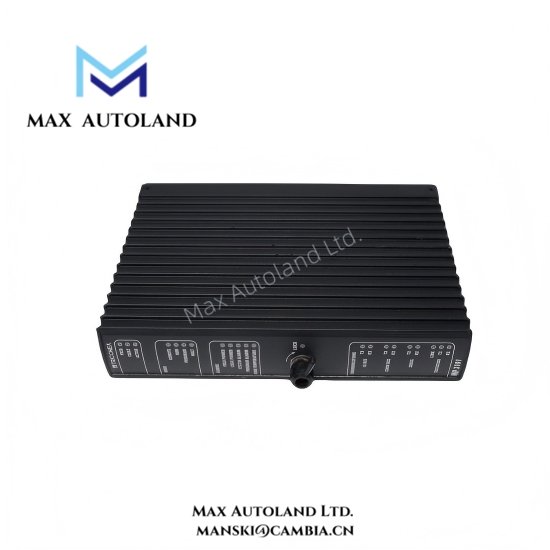

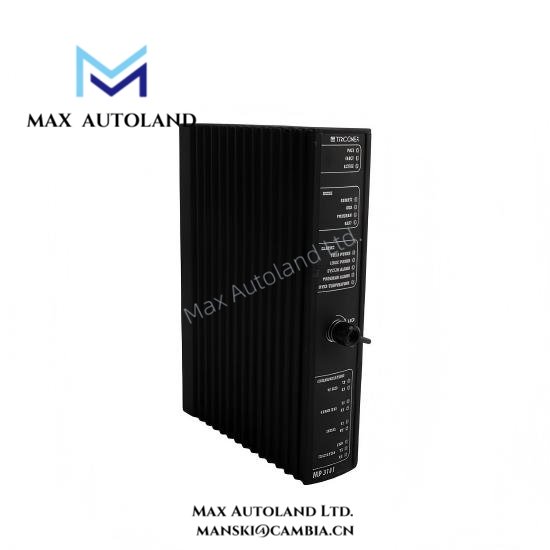

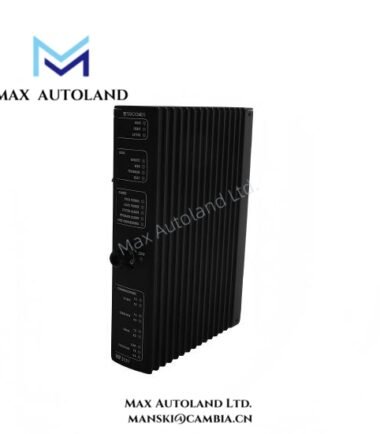

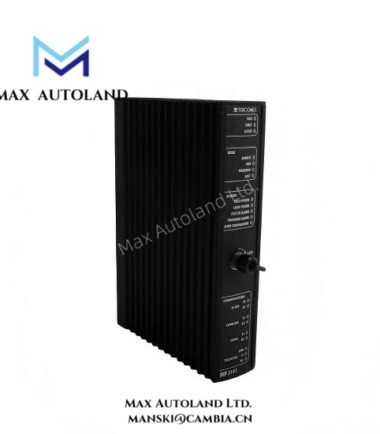

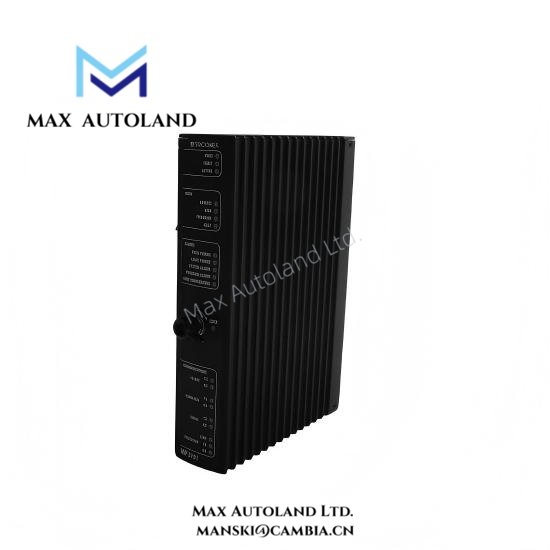

The MP3101 module provides central processing capability for Triconex safety instrumented control systems.
Engineers deploy MP3101 modules to execute control logic, manage I/O data, and coordinate system communications.
Additionally, MP3101 processes large volumes of real-time operational data generated by Tricon system input and output modules.
The module integrates high-performance processors, memory circuits, and communication interfaces for continuous safety system operation.
Furthermore, MP3101 maintains reliable computing performance through industrial-grade circuit design and power stabilization components.
Its hardware architecture supports mission-critical automation applications across energy, oil, gas, and chemical industries.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Manufacturer | Triconex | Global supplier of safety instrumented control systems |
| Model | MP3101 | Main Processor Module |
| System Compatibility | Tricon Safety System | Installed in Tricon controller chassis |
| Processor Type | High-performance industrial CPU | Executes control logic and safety application programs |
| Processing Architecture | Redundant safety processing architecture | Supports reliable safety system computing |
| System Memory | Integrated program and data memory | Stores control algorithms and runtime process data |
| Communication Interface | High-speed Tricon backplane communication bus | Exchanges information with I/O and communication modules |
| Module Interfaces | Backplane connector interface | Provides electrical connection with Tricon system chassis |
| Power Supply | 24 VDC system power | Standard industrial power architecture |
| Energy Storage Components | Industrial filtering capacitors | Stabilize internal voltage and reduce electrical interference |
| Circuit Design | Multi-layer industrial PCB | Improves signal integrity and computing reliability |
| Diagnostic Indicators | LED diagnostic indicators | Display module operation status and system communication activity |
| Redundancy Support | Compatible with redundant controller configuration | Improves safety system availability |
| Dimensions | Approx. 260 mm × 160 mm × 40 mm | Standard module size for Tricon racks |
| Weight | Approx. 1.2 kg | Reinforced industrial mechanical structure |
| Operating Temperature | −20°C to 70°C | Supports continuous operation in harsh environments |
| Humidity Range | 5% to 95% non-condensing | Ensures stable performance in industrial control cabinets |
| Service Life | More than 10 years | Designed for long-term safety control system operation |
FAQ
Q1: Is the MP3101 processor module brand new and original?
Yes. The MP3101 module we supply is brand new and original from the manufacturer.
Q2: Do you currently have MP3101 modules in stock?
Yes. Our warehouse keeps inventory available for Triconex modules including MP3101.
Q3: How long does shipping usually take after placing an order?
Shipping normally occurs within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics companies do you use for international delivery?
We commonly ship products using DHL, FedEx, and UPS logistics services.
Q5: What is the main function of MP3101 in a Tricon system?
The MP3101 module performs system processing tasks including control logic execution and communication management.
Q6: What if the product has quality problems after delivery?
We support returns within 30 days if customers report confirmed quality issues.
