Overview

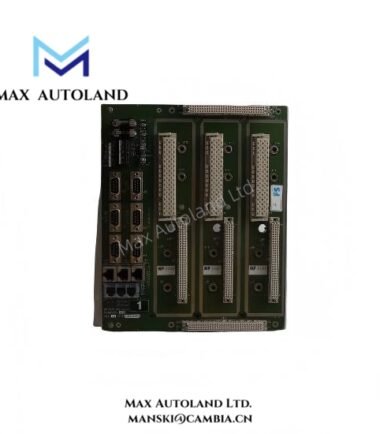

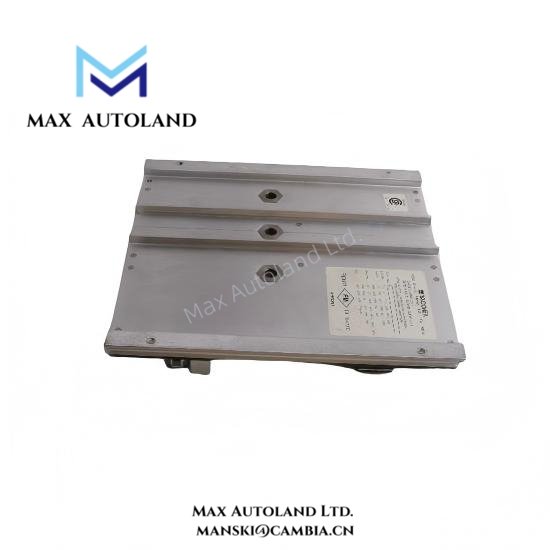

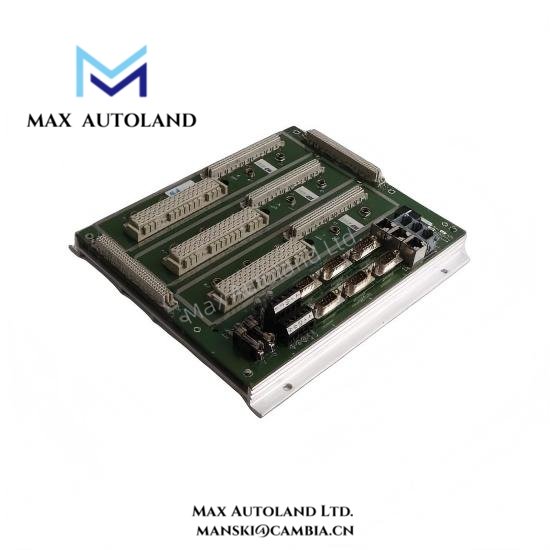

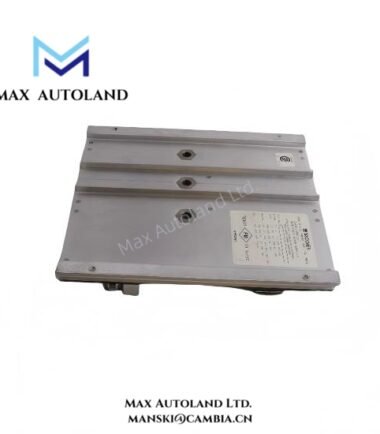

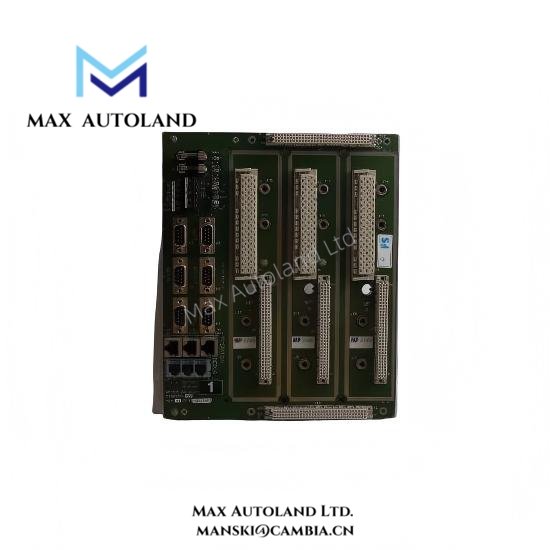

The MP2101 7400207-001 Triconex Main Processor Baseplate is engineered for high-reliability industrial automation systems. It ensures precise communication across PLC modules and DCS networks while supporting continuous operation in critical processes. Designed for robust industrial environments, it integrates seamlessly into Triconex safety and control architectures.
Specification
| Parameter | Specification |
|---|---|
| Model | MP2101 7400207-001 |
| Manufacturer | Triconex / Schneider Electric |
| Series | Triconex 3000 Series |
| Product Type | Main Processor Baseplate |
| Dimensions (L × W × H) | 324 mm × 182 mm × 45 mm |
| Weight | 2.5 kg |
| Number of Slots / Interfaces | 8 processor/I-O module slots |
| Backplane Bus Type | High-speed serial communication bus for Triconex modules |
| Power Supply | 24 V DC nominal, max 45 W |
| Energy Storage | Onboard capacitor-based backup for processor memory |
| Memory Type | Non-volatile memory with fault-tolerant storage |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Compliance / Certifications | IEC 61508, SIL 3, CE, RoHS compliant |
| Communication Protocols | Triconex proprietary protocol, compatible with standard PLC/DCS integration |
| Environmental Protection | IP20 standard |
| Chassis Compatibility | Fully compatible with Triconex 3000 Series chassis |
| Mounting Type | Rack-mounted in industrial control cabinets |
| Diagnostic Features | LED indicators for status, fault, and module activity |
| Connectors / Interface | Proprietary Triconex slot connectors, hot-swappable design |
| Typical Lifetime | 10+ years in industrial operating conditions |
FAQ
Q1: Is this MP2101 7400207-001 baseplate brand new?
A1: Yes, it is fully original and factory-sealed from Triconex/Schneider Electric.
Q2: How quickly can you ship the MP2101 7400207-001?
A2: Orders ship within 3 days to 2 weeks depending on quantity and logistics. DHL and other carriers are commonly used.
Q3: Can I return the MP2101 7400207-001 if there is a defect?
A3: Yes, we offer a 30-day return policy for quality issues.
Q4: What kind of modules does MP2101 7400207-001 support?
A4: It supports multiple Triconex I/O and processor modules compatible with the 3000 Series chassis.
