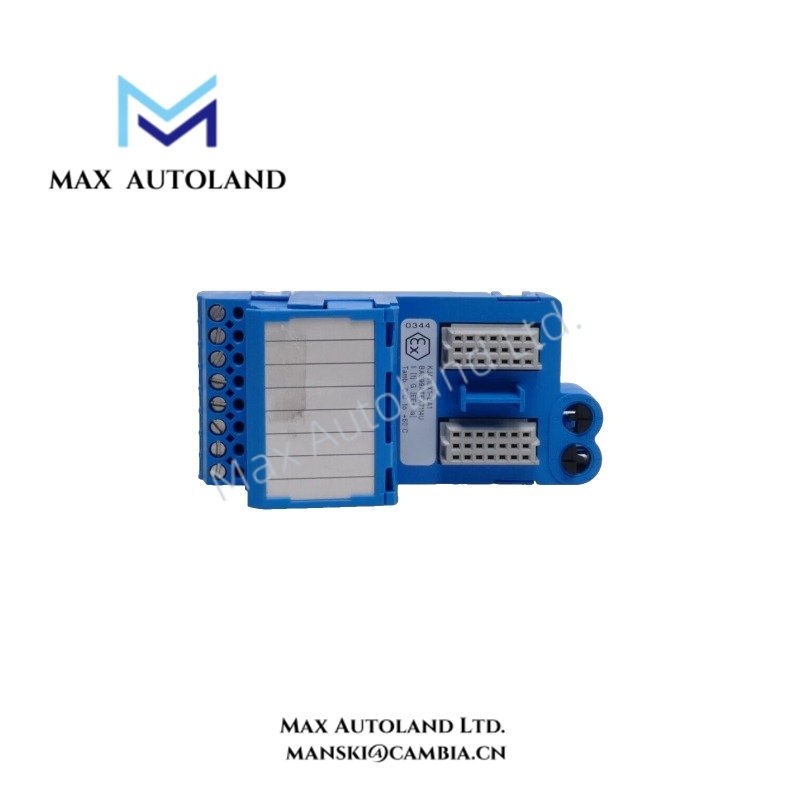

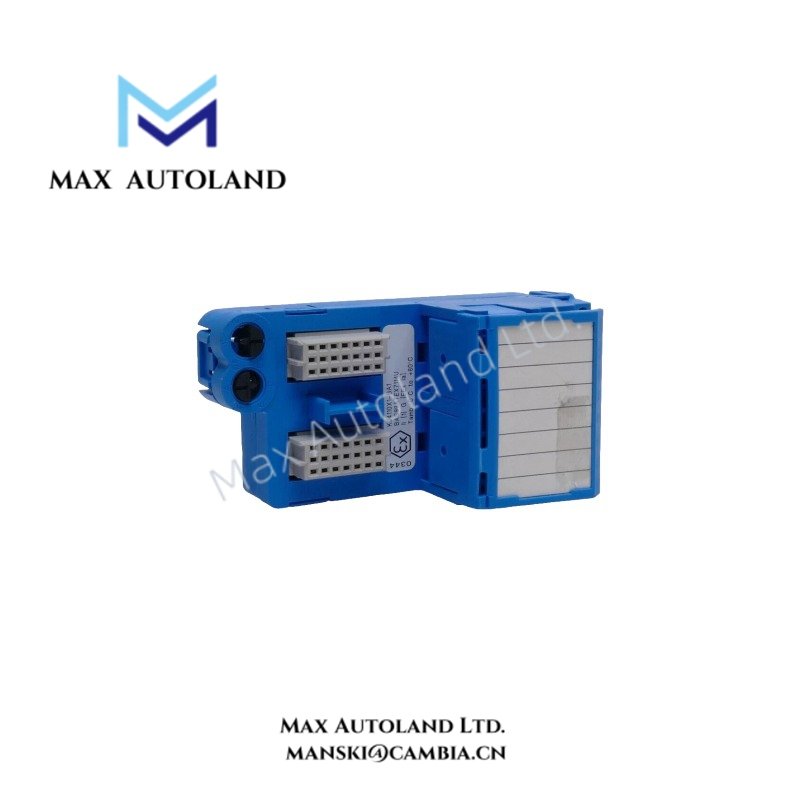

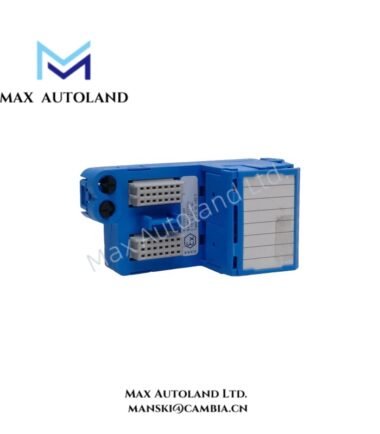

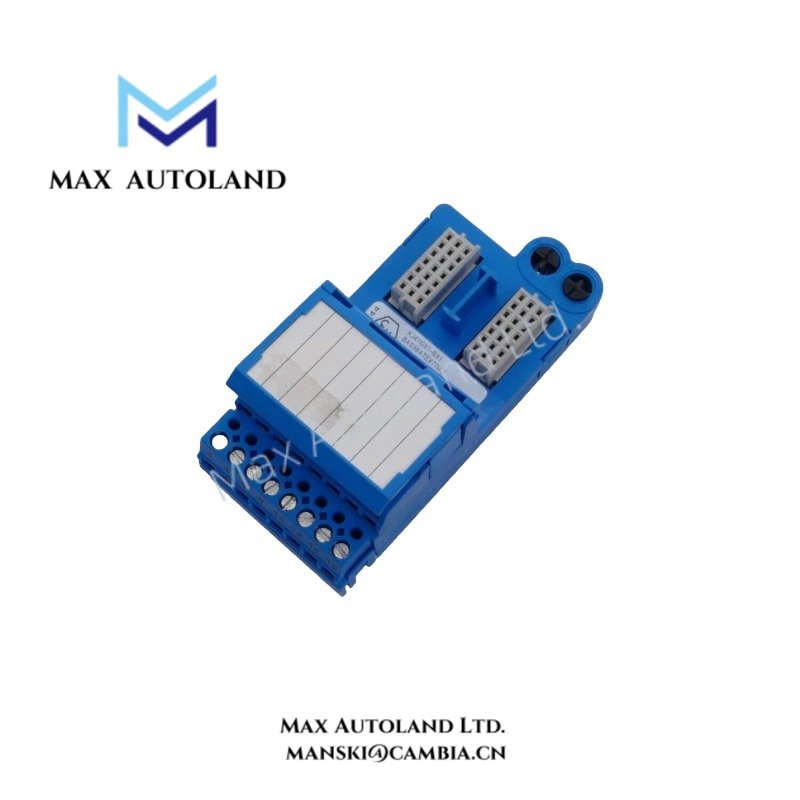

KJ4110X1-BA1 Emerson DeltaV I/O Terminal Block

Emerson KJ4110X1-BA1 Terminal Block

Configured for I/O signal termination and field wiring connection in Emerson DeltaV control systems, the Emerson KJ4110X1-BA1 (KJ4110X1-BA1 Terminal Block) provides direct physical and electrical interface for 24 VDC I/O circuits. The assembly is also identified by order code 12P1867X012.

Hardware Specifications

DeltaV Process I/O Termination Characteristics

The Emerson KJ4110X1-BA1 terminal block provides channel-level field wiring termination for DeltaV I/O architectures. It supports direct connection between field devices and I/O modules while maintaining organized signal routing within the cabinet assembly.

For Emerson process control installations, terminal blocks support instrument loop integration including 4-20 mA HART loop protocol environments, discrete signal wiring, and channel-to-channel isolation requirements when applied with compatible I/O modules. The terminal assembly allows technicians to separate field wiring from electronic modules during maintenance activities.

Frequently Asked Questions

Q: What is the primary function of the Emerson KJ4110X1-BA1?
A: The KJ4110X1-BA1 functions as an I/O terminal block that provides field wiring termination and signal connection for compatible Emerson DeltaV I/O systems.

Q: What wire sizes are supported by this terminal block?
A: The terminal block supports solid and stranded wires from 0.2 to 4 mm2 according to the provided electrical specifications.

Q: Does the KJ4110X1-BA1 provide signal isolation by itself?
A: No. The terminal block provides electrical termination and connection functions. Signal isolation depends on the connected DeltaV I/O module design.

Field Installation Guidelines

Install the KJ4110X1-BA1 inside the designated DeltaV I/O cabinet assembly using the approved mounting hardware and system layout.

Maintain correct wire identification during installation to prevent channel assignment errors. Use properly sized conductors within the specified 0.2 to 4 mm2 range and secure all terminal connections according to standard industrial wiring practices.

Separate low-level instrument wiring from high-voltage power conductors to reduce electrical interference. Apply appropriate shielding and grounding methods based on the connected field device and control system requirements.

Verify terminal assignments, polarity, and circuit ratings before applying system power. Inspect all wiring connections during commissioning to confirm correct signal transmission.
