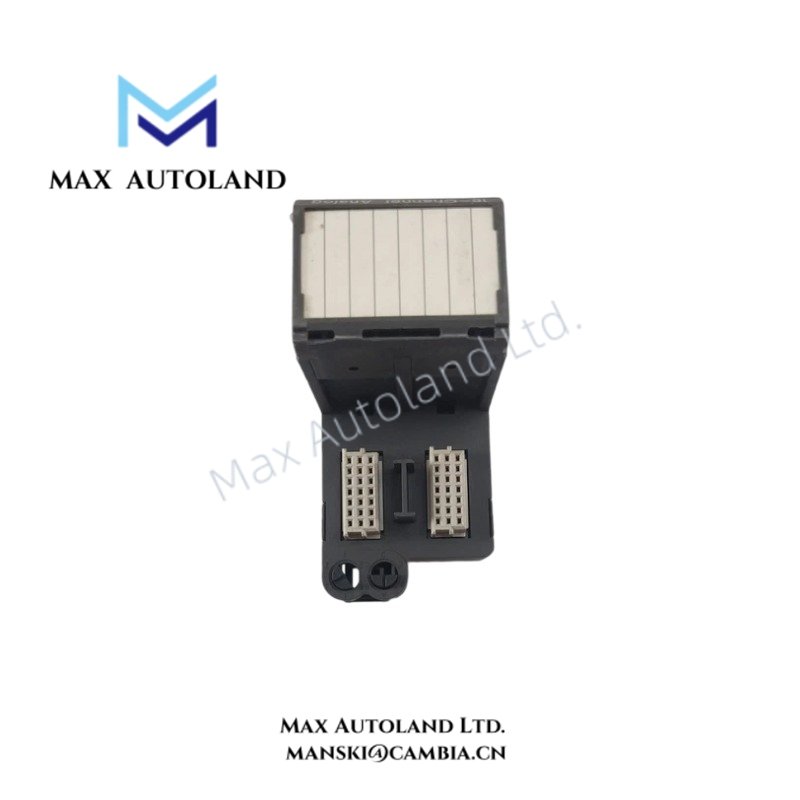

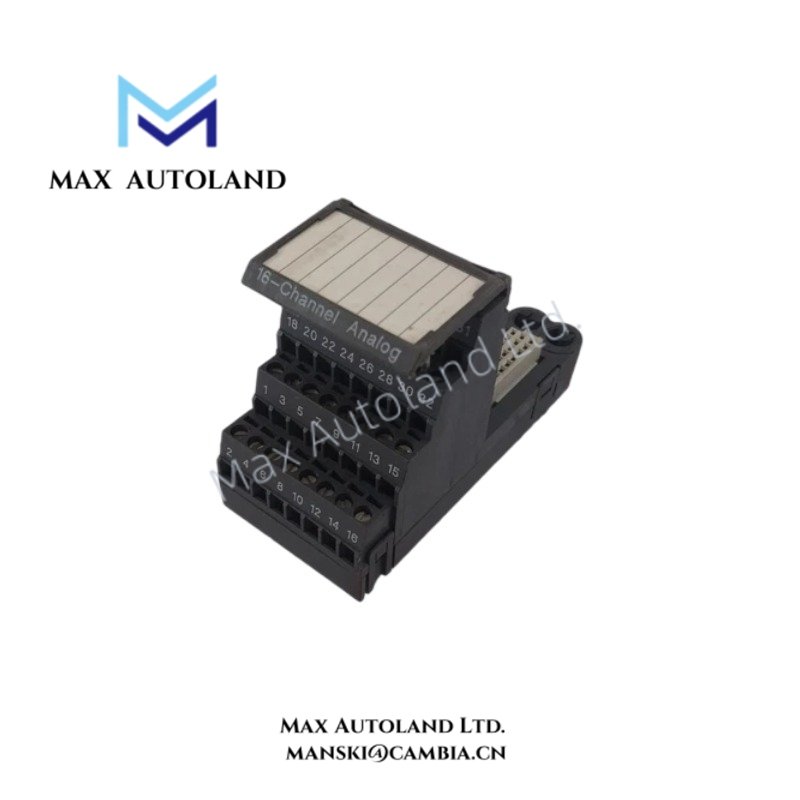

Emerson KJ3223X1-EA1 16-CH AI Terminal Block

Hardware Specifications

4-20 mA HART Loop and Channel Isolation Characteristics

The Emerson KJ3223X1-EA1 terminal block provides physical termination for 16 analog input channels in DeltaV I/O architectures. It supports process instrumentation wiring interfaces and maintains channel-level signal organization between field devices and the control system.

Furthermore, the terminal assembly is designed for process control applications using analog measurement loops. Emerson DeltaV analog input architectures commonly support 4-20 mA HART loop protocol communication, allowing instrument configuration data and diagnostic information to pass through compatible I/O modules.

The terminal block installation requires correct field wiring separation and grounding practices to maintain signal integrity. Shield termination should follow DeltaV system installation standards to reduce electrical noise coupling and maintain measurement accuracy.

Frequently Asked Questions

Q: What is the primary function of the Emerson KJ3223X1-EA1?

A: The KJ3223X1-EA1 functions as a 16-channel analog input terminal block that provides field wiring termination and signal routing for Emerson DeltaV I/O systems.

Q: What environmental conditions can the KJ3223X1-EA1 support?

A: The terminal block operates within an ambient temperature range of -40 deg C to +70 deg C and supports 5 to 95% relative humidity without condensation.

Q: Does the KJ3223X1-EA1 provide direct analog signal processing?

A: No. The KJ3223X1-EA1 provides termination and connection functions. Analog signal conversion and processing are performed by the associated DeltaV analog input module.

Field Installation Guidelines

Install the KJ3223X1-EA1 according to Emerson DeltaV cabinet wiring procedures and approved system installation documentation.

• Verify terminal block compatibility with the installed DeltaV I/O carrier and analog input module configuration.
• Route analog field cables separately from high-voltage power cables to reduce electromagnetic interference.
• Connect cable shields according to the approved grounding method for the control cabinet.
• Confirm terminal wiring assignments before applying field power.
• Inspect terminal connections for correct tightening and mechanical stability.
• Maintain environmental protection requirements when installing the module in industrial cabinets.

.
