Overview
Specification
| Parameter | Specification |
|---|---|

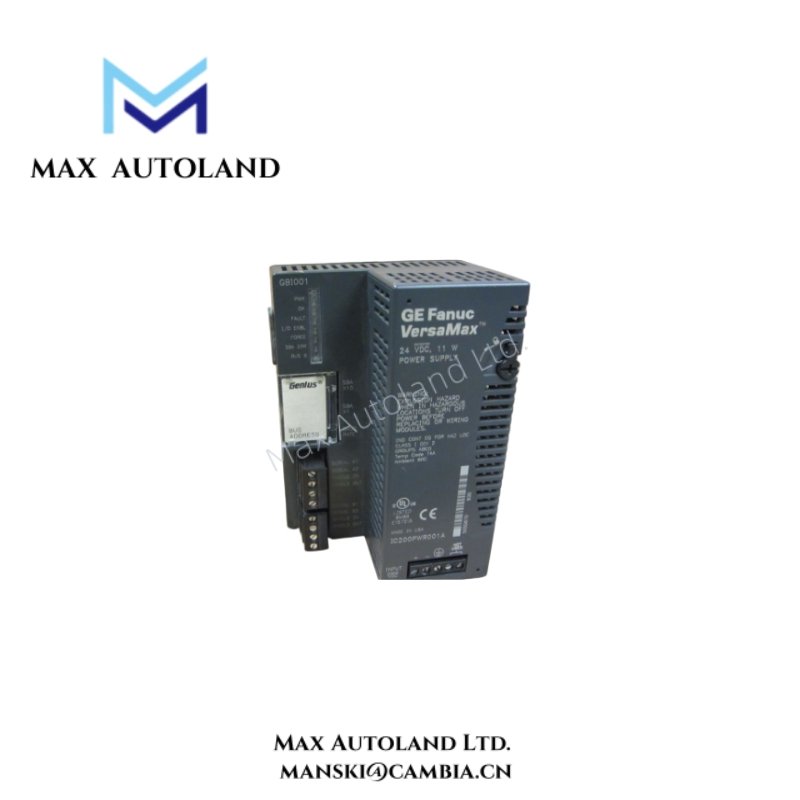

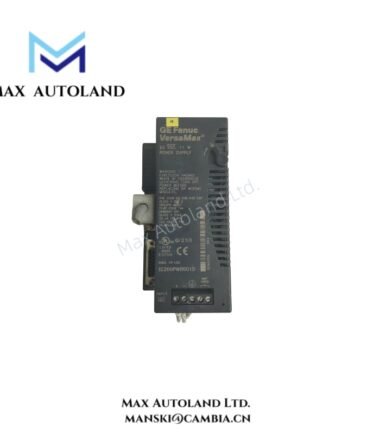

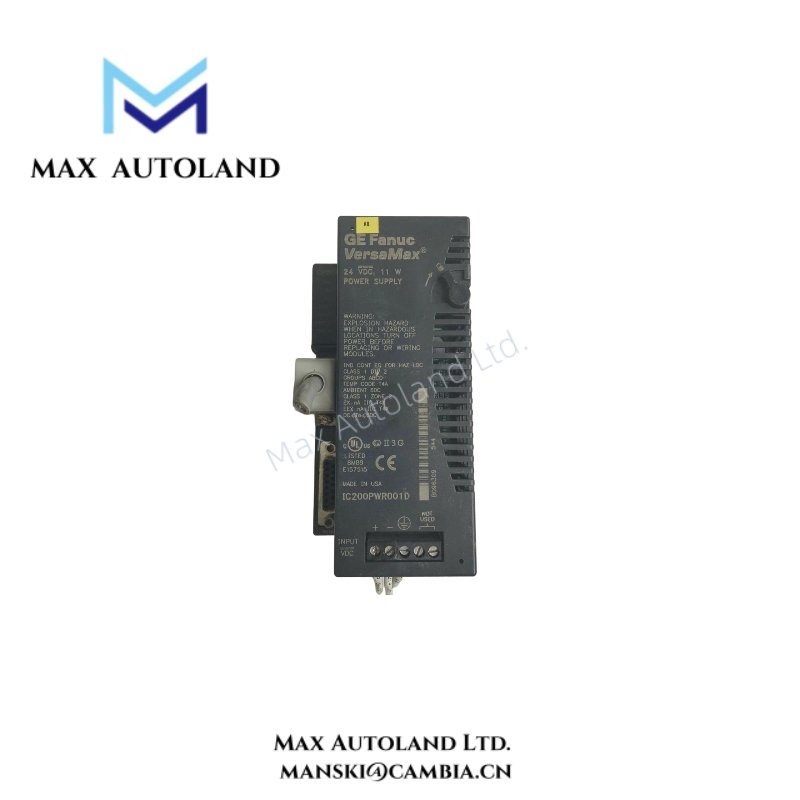

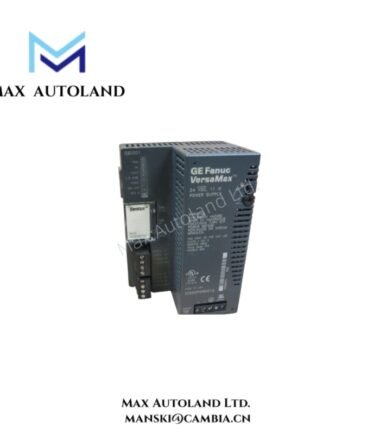

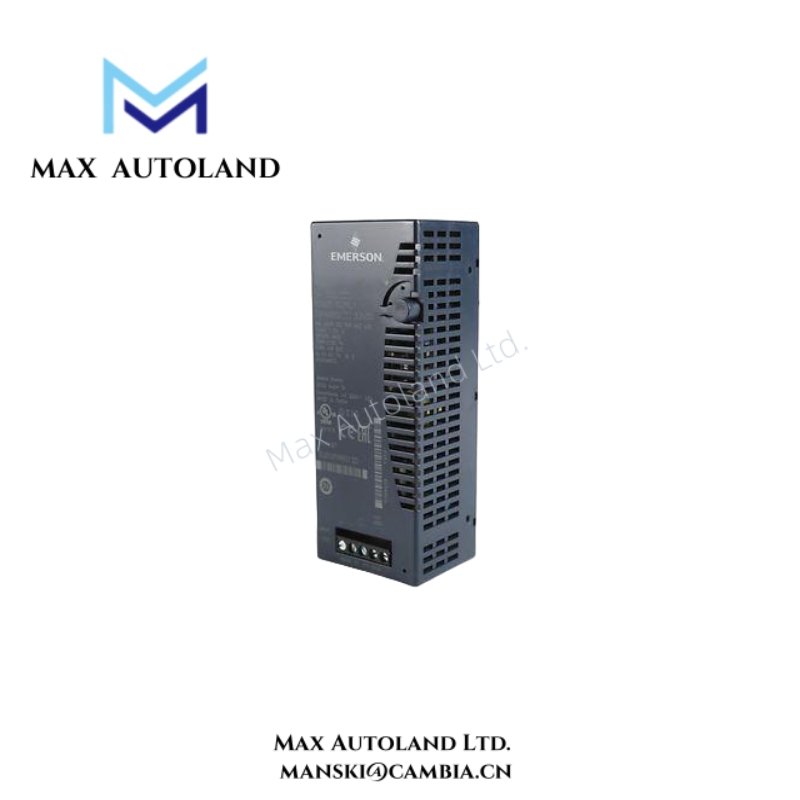

| Model | IC200PWR001 |
| Module Type | Power Supply Module |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 5 VDC ±5%, 24 VDC ±5% |
| Output Current | 5 VDC: 0.5 A typical, 24 VDC: 2.5 A typical |
| Power Rating | 60 W maximum |
| Communication Interface | VersaMax backplane |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Status Indicators | LEDs for 5V, 24V, and FAULT |
| Mounting | DIN rail or panel mount |
| Dimensions | 122 mm (H) x 35 mm (W) x 112 mm (D) |
| Certifications | CE, UL Listed |
| Environmental Protection | Resistant to vibration, electrical noise, and industrial conditions |
| Typical Applications | Industrial automation, factory control panels, process systems |
FAQ
It provides 5 VDC and 24 VDC regulated outputs.Q2: Is this power supply compatible with VersaMax I/O modules?
Yes, it is fully compatible with IC200 CPUs and I/O modules via the backplane.
Q3: What is the operating temperature range?
The module operates reliably between 0°C to 60°C (32°F to 140°F).
Q4: How can I monitor module status?
LED indicators show the status of 5V, 24V, and any system faults.
Q5: Does it provide protection against electrical faults?
Yes, it includes protections for overload, short circuit, and overvoltage conditions.
