Overview

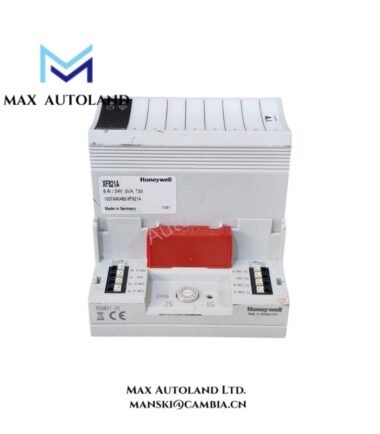

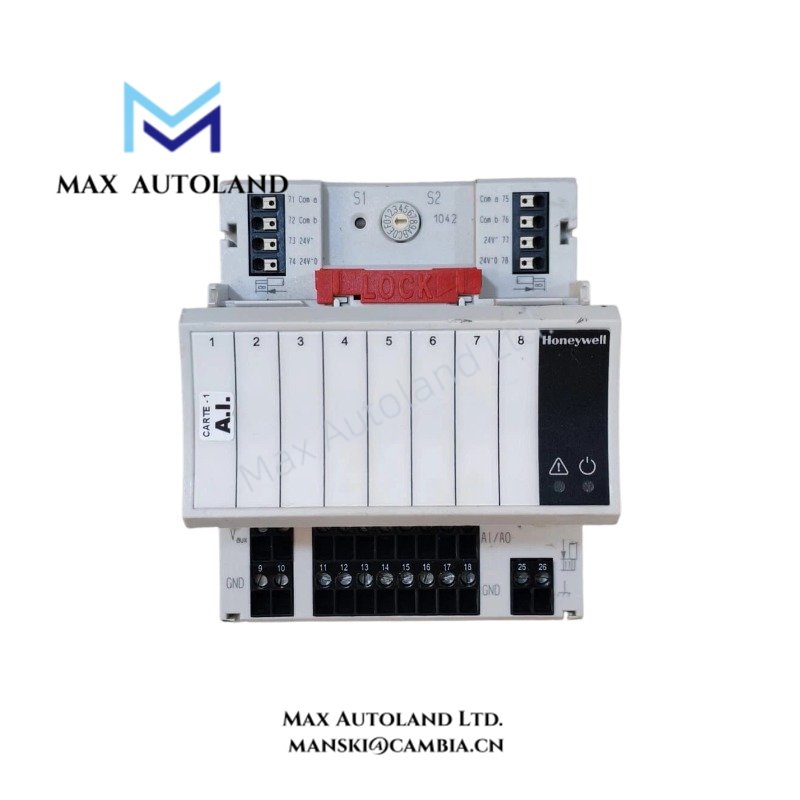

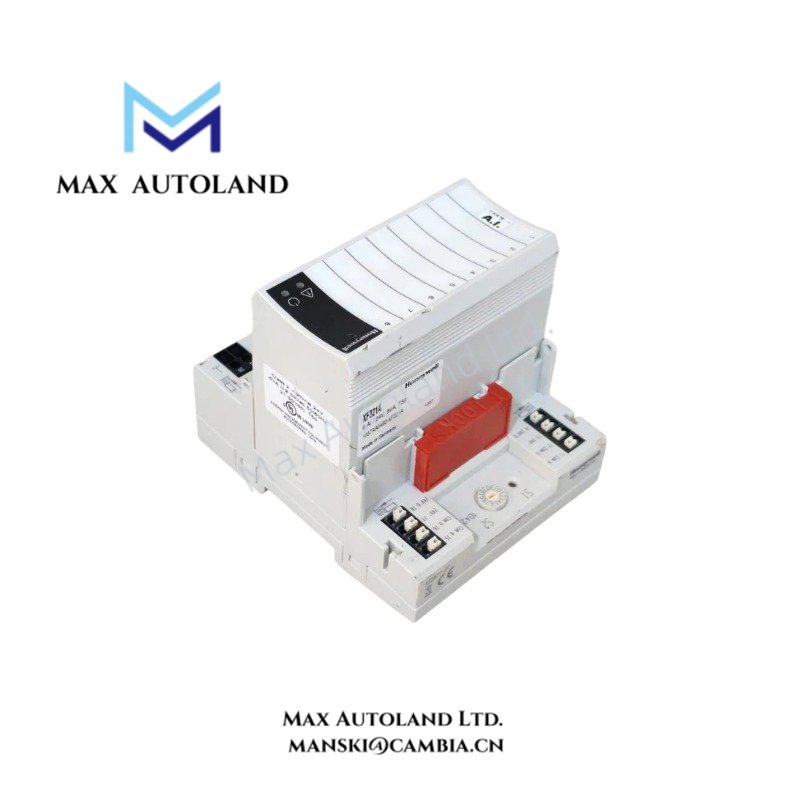

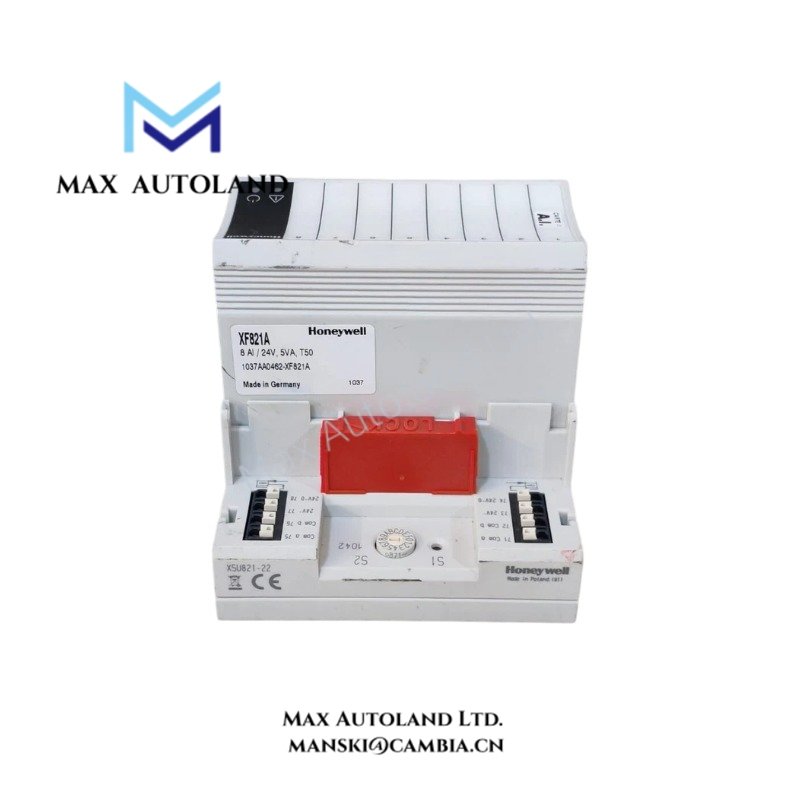

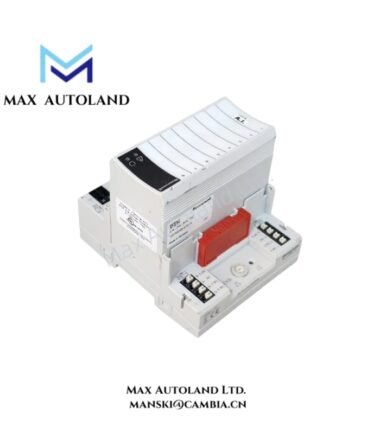

The Honeywell XF821A is an 8-channel Panel Bus Analog Input Module designed to acquire analog voltage and temperature sensor signals for building automation control systems. It supports 0-10 VDC input signals and multiple temperature sensor types, including NTC and platinum resistance sensors. A 10 VDC auxiliary output supplies external devices with a maximum current of 5 mA. The module uses Panel Bus communication, with addressing configured through a hexadecimal switch.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | XF821A |
| Brand | Honeywell |
| Product Type | Panel Bus Analog Input Module |
| Number of Inputs | 8 analog inputs |
| Input Signal | 0-10 VDC |
| Supported Sensors | NTC20k, NTC10k, PT1000, NI1000, PT3000, BALCO500, Johnson A99 |
| Analog-to-Digital Resolution | 16-bit, as provided |
| Communication Interface | Panel Bus, RS-485 as provided |
| Address Configuration | Physical hexadecimal switch |
| Auxiliary Voltage Output | 10 VDC |
| Maximum Auxiliary Output Current | 5 mA |
| Protection | Overvoltage and short-circuit protection, as provided |
| Maximum Stated Protection Levels | 24 VAC and 40 VDC |
| Mounting | DIN rail or compatible panel bus housing, subject to hardware verification |
| Origin | USA |
Analog Signal Acquisition and Sensor Compatibility
The XF821A accepts voltage signals and temperature sensor inputs. Its eight input channels allow the connected controller to collect measurements from multiple field devices.
- Voltage inputs: Supports 0-10 VDC signals according to the supplied description.
- Temperature inputs: Supports the listed NTC, platinum, nickel, and BALCO sensor types.
- Auxiliary supply: Provides 10 VDC at a maximum current of 5 mA for compatible external devices.
- Addressing: Uses a physical hexadecimal switch to configure the module address.
- Diagnostics: Status LEDs provide local indications for power or service conditions.
The supplied information does not establish channel-to-channel galvanic isolation, hot-swap capability, or a specific cold junction compensation (CJC) function. These characteristics should be verified against the manufacturer’s documentation before system integration.
Frequently Asked Questions
Q: Which input signals does the Honeywell XF821A support?
A: The supplied specifications identify 0-10 VDC voltage inputs and the listed temperature sensors, including NTC20k, NTC10k, PT1000, NI1000, PT3000, BALCO500, and Johnson A99.
Q: Can the 10 VDC auxiliary output power external field devices?
A: The module provides a 10 VDC auxiliary output with a maximum current of 5 mA. The connected device must remain within this current limit.
Q: Does the XF821A support hot swapping?
A: The supplied description does not establish hot-swap support. Confirm the manufacturer’s installation instructions and controller requirements before removing or replacing the module under power.
Field Installation Guidelines
- Verify the XF821A model and housing compatibility against the manufacturer’s hardware documentation before installation.
- Configure the hexadecimal address switch according to the Panel Bus addressing plan. Avoid duplicate addresses on the same bus.
- Identify each analog input and connect the corresponding field sensor to the designated terminal.
- Route analog signal wiring separately from high-voltage power cables and sources of electrical interference where practical.
- Apply cable shielding and grounding according to the controller and sensor manufacturer’s requirements. Avoid creating unintended ground loops.
- Confirm that auxiliary loads do not exceed the specified 10 VDC output and 5 mA current limit.
- Inspect terminal connections, verify sensor wiring, and check module status indicators before commissioning.
- Do not perform live replacement unless the manufacturer’s documentation explicitly permits hot swapping.
