Overview

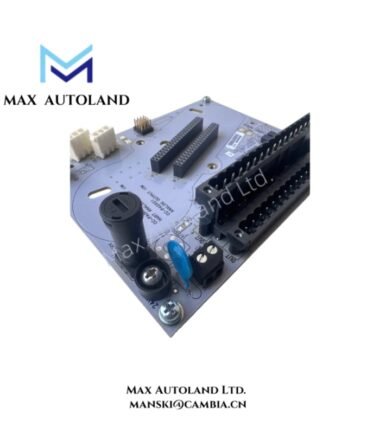

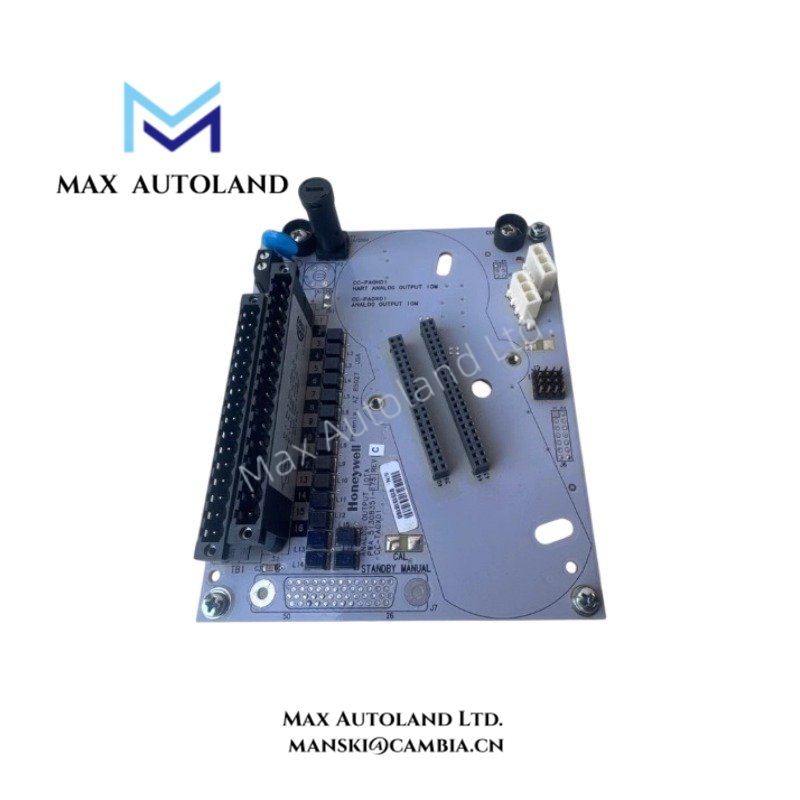

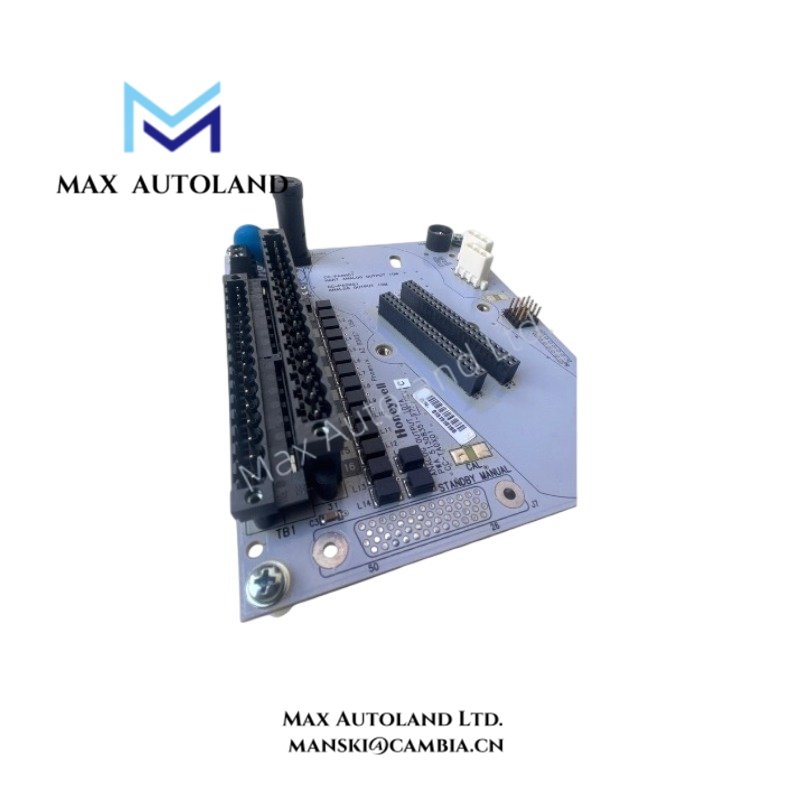

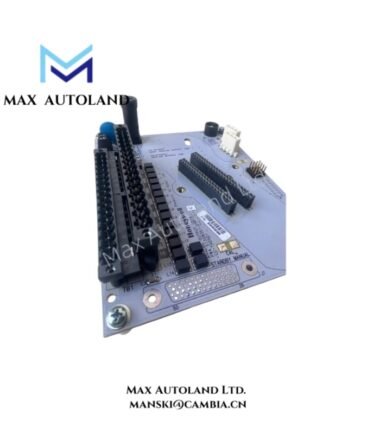

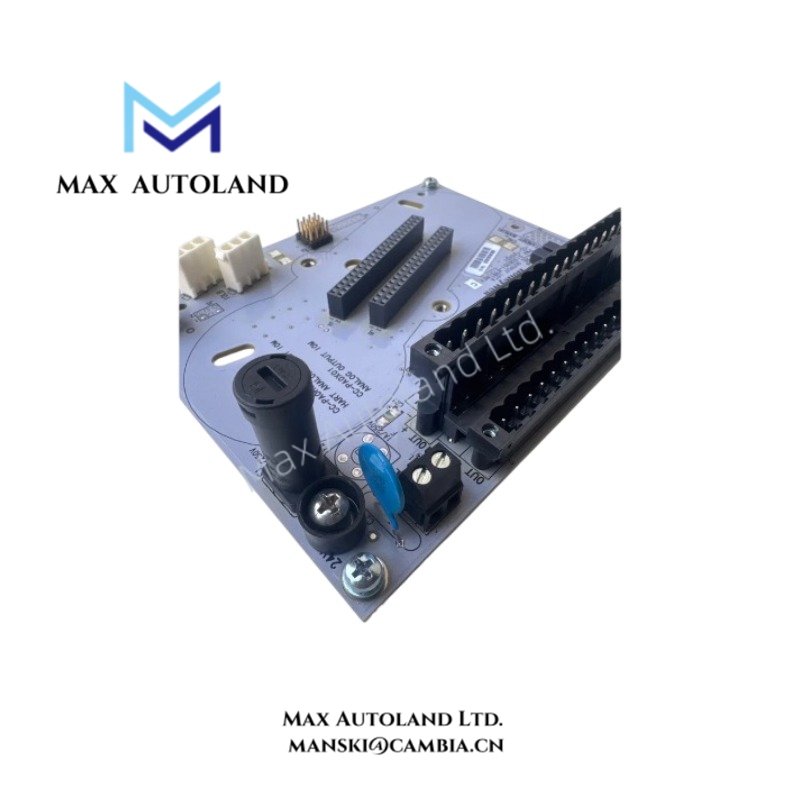

Configured for 4-20 mA analog output signal distribution in a Honeywell distributed control system, the Honeywell CC-TAOX01 51308351-175 (CC-TAOX01 IOTA board) provides a physical termination interface for analog output circuits. This non-redundant, coated board supports 24 VDC operation and accommodates 16 output channels. Its specified operating temperature limit is 60 deg C.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-TAOX01 |
| Spare Model | 51308351-175 |
| Brand | Honeywell |
| Product Type | Analog Output IOTA Board |
| Origin | USA |
| Place of Shipment | Xiamen, China |
| Weight | 0.24 kg |
| Dimensions | 14.6 x 12.1 x 6.8 cm |
| Operating Temp | Maximum 60 deg C |
| Power Supply | 24 VDC |
| Power Consumption | Not specified |
| Output Type | Analog current output, 4-20 mA |
| Output Channels | 16 |
| Redundancy | Non-redundant |
| Board Coating | Coated |
| Output Ripple | Less than 100 mV peak-to-peak at power line frequency across a 250 ohm load |
| Output Temperature Drift | 0.005% of full scale per deg C |
| Output Readback Accuracy | +/- 4% of full scale |
| Output Current Linearity | +/- 0.05% of full scale, nominal |
| Resolution | +/- 0.05% of full scale, as specified |
| Calibrated Accuracy | +/- 0.35% of full scale at 25 deg C, including linearity |
| Directly Settable Output Current Range | 0 mA; 2.9 mA to 21.1 mA |
| Maximum Resistive Load | 800 ohms |
| Maximum Output Compliance Voltage | 16 V |
| Maximum Open-Circuit Voltage | 22 V |
| Tariff Code | 8537101190 |
Analog Output Signal Characteristics
The CC-TAOX01 provides 16 analog output channels for current-loop signal handling. The specified output range includes the standard 4-20 mA operating span, with a directly settable range of 2.9 mA to 21.1 mA and a separate 0 mA setting.
The maximum resistive load is 800 ohms. The maximum output compliance voltage is 16 V, while the maximum open-circuit voltage is 22 V. These limits should be considered when selecting field devices and evaluating loop resistance.
The specified calibrated accuracy is +/- 0.35% of full scale at 25 deg C, including linearity. Output readback accuracy is specified separately at +/- 4% of full scale; these values describe different performance characteristics and should not be treated as interchangeable.
Frequently Asked Questions (FAQ)
Q: How many analog output channels does the CC-TAOX01 support?
A: The board is specified for 16 analog output channels. Each channel uses a current output signal, with 4-20 mA as the stated signal type.
Q: What is the maximum field-loop resistive load?
A: The specified maximum resistive load is 800 ohms. Confirm that the total loop resistance and connected device requirements remain within the applicable output compliance limits.
Q: Is the CC-TAOX01 a redundant output board?
A: No. The supplied product information identifies this IOTA board as non-redundant. A redundant system configuration should not be assumed from the board specification alone.
Field Installation Guidelines
- Verify the board model and part number before installation: CC-TAOX01, 51308351-175.
- Confirm the applicable Honeywell system configuration and compatible analog output module before connecting field wiring.
- Check field-device polarity, loop resistance, and power requirements against the system documentation.
- Keep analog signal wiring separated from high-current and high-voltage conductors to reduce electrical interference.
- Apply cable shielding and grounding according to the system installation manual and site grounding standards. Avoid creating unintended ground loops.
- Confirm that the installation environment does not exceed the specified maximum operating temperature of 60 deg C.
- Inspect the board and connectors for physical damage before installation. Follow the manufacturer’s procedures for isolation, insertion, removal, and commissioning.
- Do not assume hot-swap capability, channel-to-channel isolation, or redundant operation unless the applicable Honeywell documentation explicitly confirms these functions.
