Overview

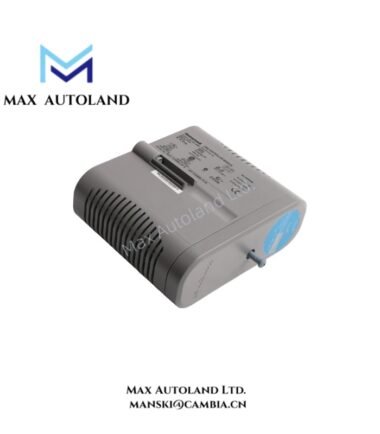

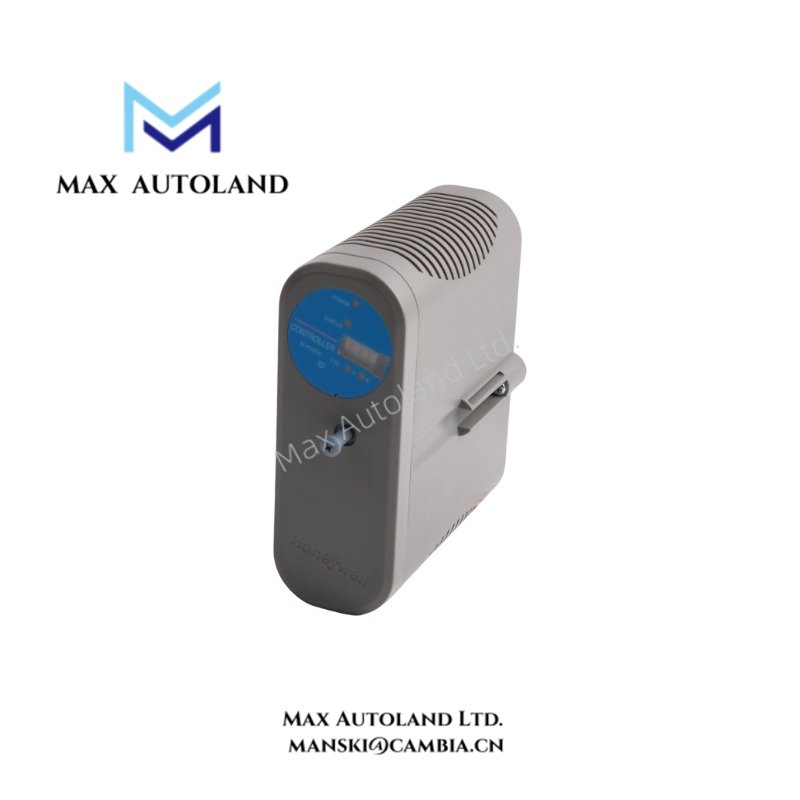

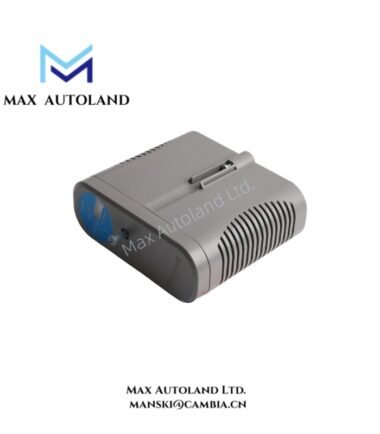

The Honeywell 8C-PCNT02 (51454363-275) is a control processor module with a dual-link configuration for the Honeywell Series 8 I/O system. It operates on a 24 VDC supply and provides 16 MB of program memory with a single processor core. Its two I/O links support communication between the control processor and connected Series 8 I/O modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-PCNT02 |
| Brand | Honeywell |
| Spare Part Number | 51454363-275 |
| Product Type | Control Processor Module |
| Configuration | Dual Link |
| Coating | Uncoated |
| Power Requirement | 24 VDC |
| Program Memory | 16 MB |
| Processor Core | Single |
| Supported I/O Type Series | Series 8 |
| Supported I/O Links | 2 I/O links |
| Country of Origin | USA |
| Estimated Shipping Size | 4.4 x 15.2 x 14.3 cm |
| Weight | 0.46 kg |
| HS Code | 8537101190 |
Processor and I/O Link Configuration
The 8C-PCNT02 performs control processing within its intended automation system and supports communication through two I/O links. These links provide the connection paths for the supported Series 8 I/O configuration. Confirm the required system architecture and link assignments before selecting this module for a replacement or expansion.
Power and Memory
The module requires a 24 VDC power supply and has 16 MB of program memory. The single-core processor configuration identifies its processing architecture. The supplied specifications do not state processor speed, execution time, or maximum program capacity, so these values should not be inferred from memory size alone.
Frequently Asked Questions
Q: What is the spare part number for the Honeywell 8C-PCNT02?
A: The associated spare part number is 51454363-275. Check both identifiers against the existing module label and procurement records when ordering a replacement.
Q: How many I/O links does the 8C-PCNT02 support?
A: The module supports two I/O links for the Series 8 I/O configuration. Confirm the required link arrangement and system compatibility before installation.
Q: What power supply does this module require?
A: The specified power requirement is 24 VDC. The available data does not specify current consumption or power dissipation.
