Honeywell 05701-A-0502 Racks

Overview

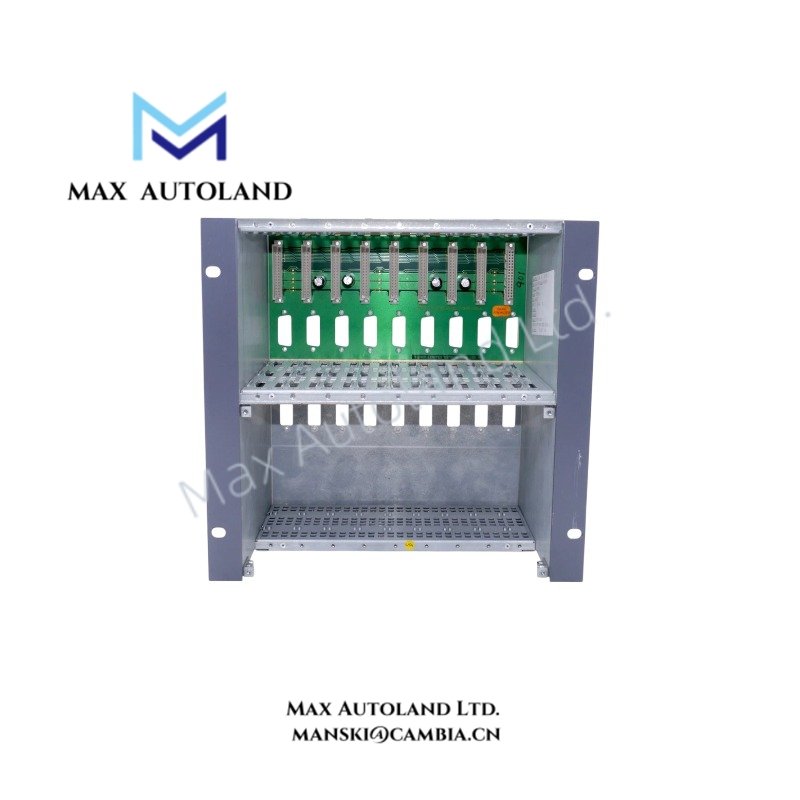

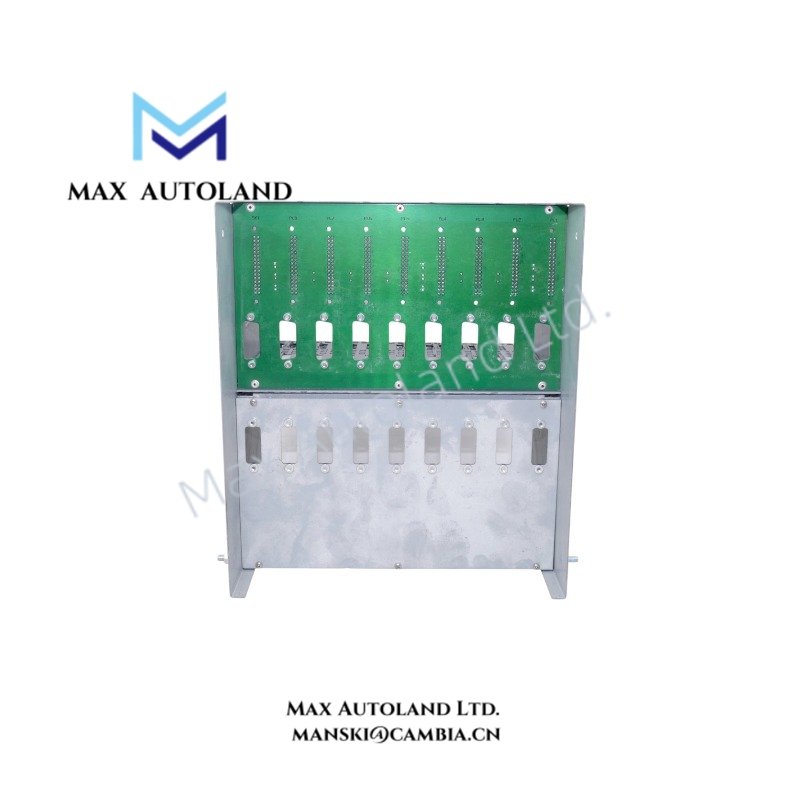

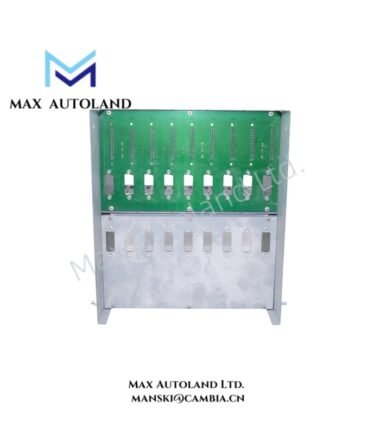

The Honeywell 05701-A-0502, also cataloged as the 05701-A-0502 Racks, operates as a dedicated rack assembly component for hardware integration and card mounting within the Honeywell System 57 gas monitoring platform.

Hardware Specifications

4-20 mA Loop and Process Instrumentation Integration

The 05701-A-0502 rack assembly is designed for integration with Honeywell System 57 control modules that interface with industrial gas detection and monitoring signals. The rack provides mechanical positioning and electrical interconnection between installed cards, supporting module-level signal processing architectures.

Honeywell System 57 configurations may include instrumentation interfaces based on analog signal standards such as 4-20 mA loop protocol. System designs using this rack assembly require correct channel wiring, signal segregation, and grounding practices to maintain channel-to-channel isolation performance where supported by installed modules.

Frequently Asked Questions

Q: Does the 05701-A-0502 include all required electronic monitoring modules?
A: No. The assembly contains the specified rack components including the sub-rack, engineering card, DC input card, and key kit. Additional functional monitoring cards depend on the configured System 57 application.

Q: What is the physical mounting format of the rack assembly?

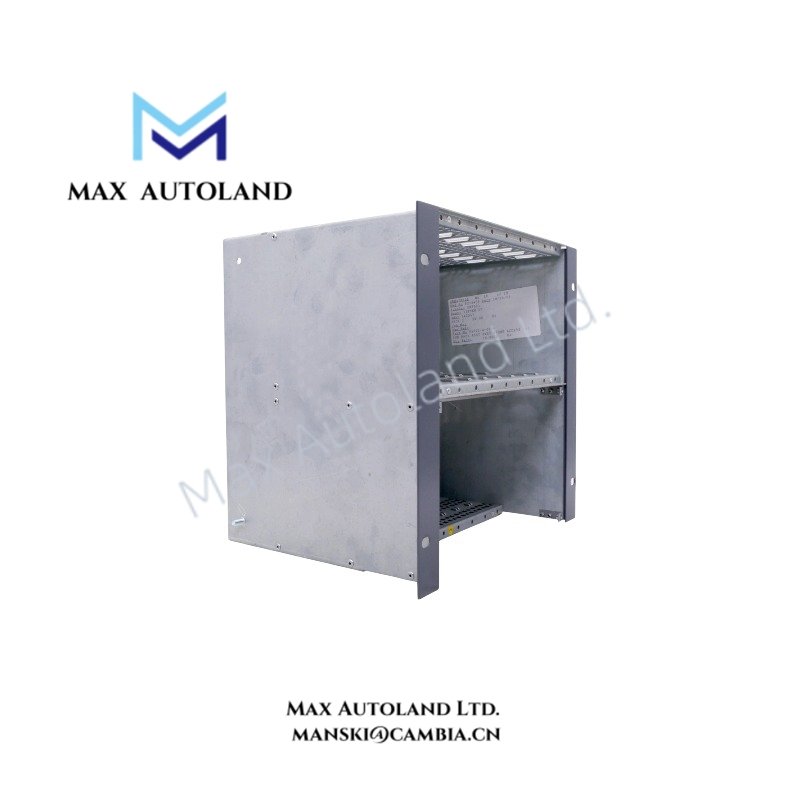

A: The rack uses a standard half 19 inch wide by 6U high sub-rack format with front field wiring connections.

Q: Is an interconnecting cable required for installation?
A: Yes. The rack assembly requires the appropriate interconnecting cable to complete system-level electrical connections.

Field Installation Guidelines

• Install the rack assembly in a suitable control panel or equipment enclosure using the specified half 19 inch rack format.
• Verify mechanical alignment of the sub-rack before inserting engineering or input cards.
• Route field wiring separately from high-voltage power conductors to reduce electrical interference.
• Maintain correct cable routing and connector engagement when installing interconnecting cables.
• Connect protective earth and cable shields according to the system grounding design.
• Confirm card seating, key configuration, and connector locking before system power application.
• Inspect installed modules for correct orientation and mechanical retention before commissioning.
