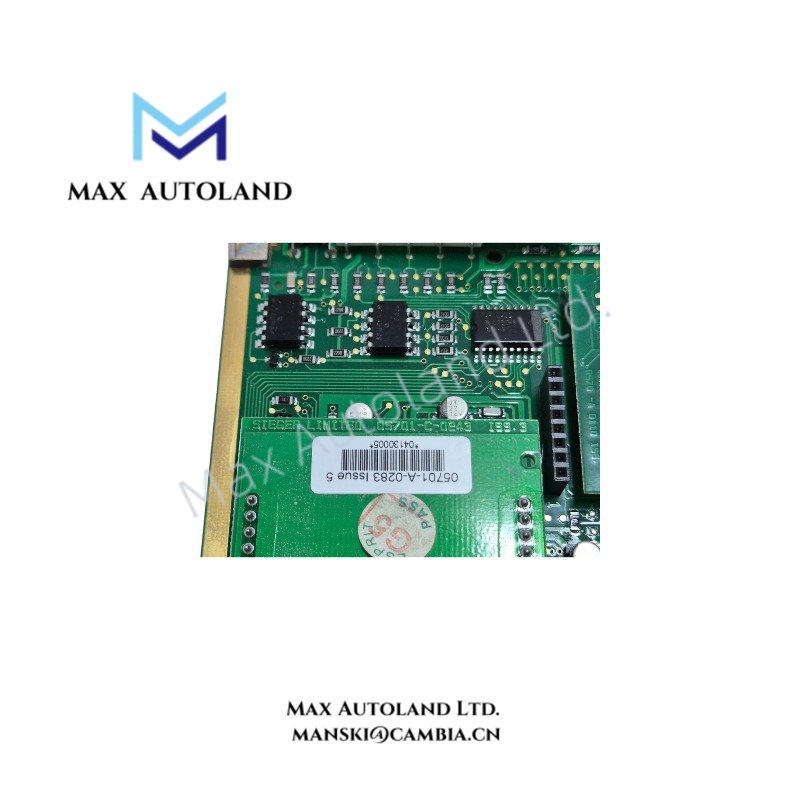

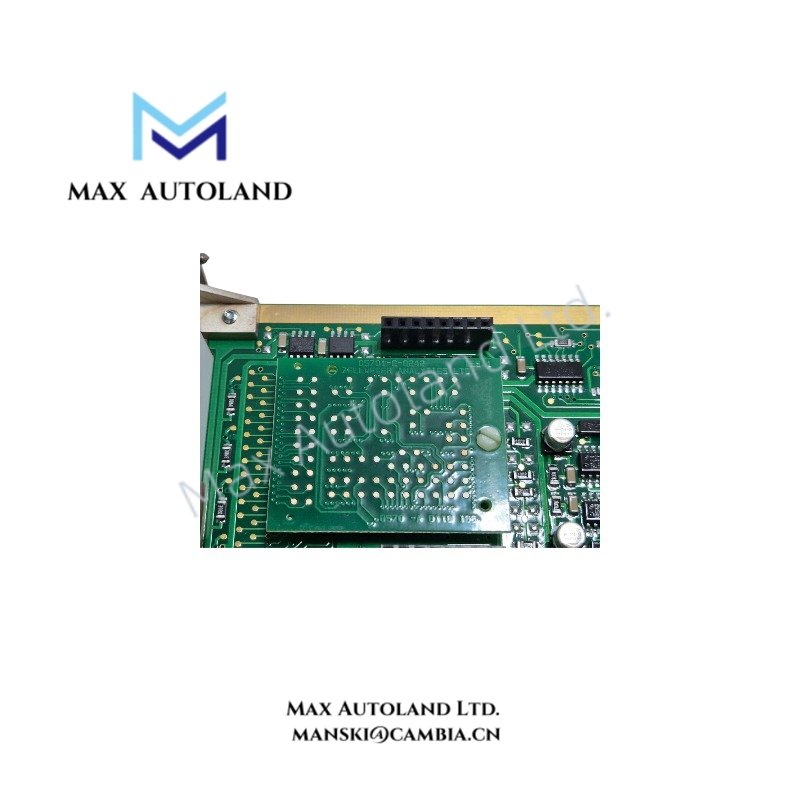

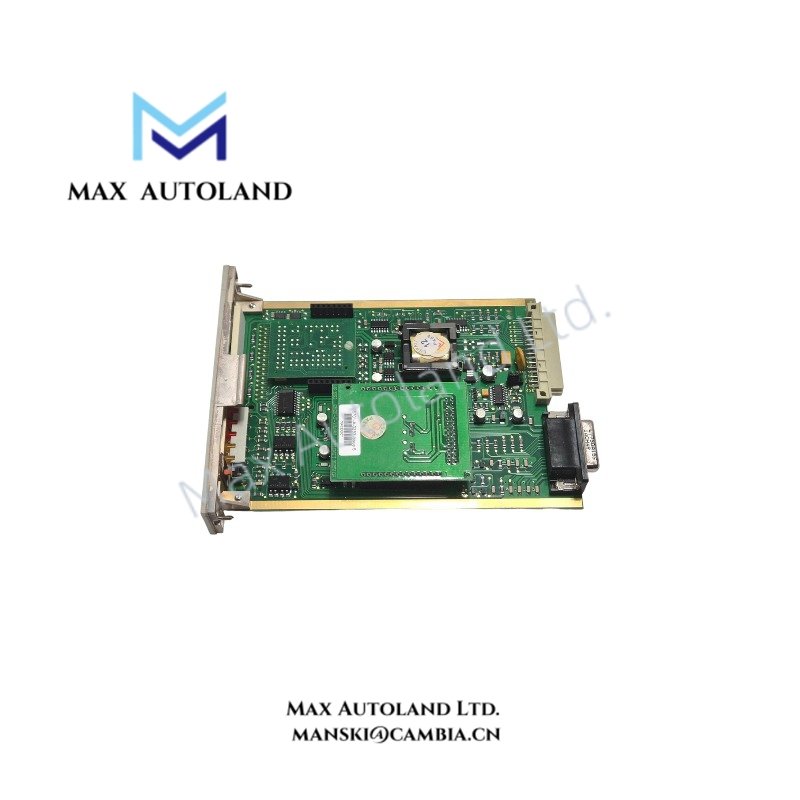

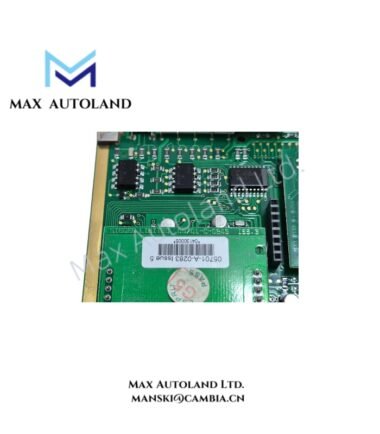

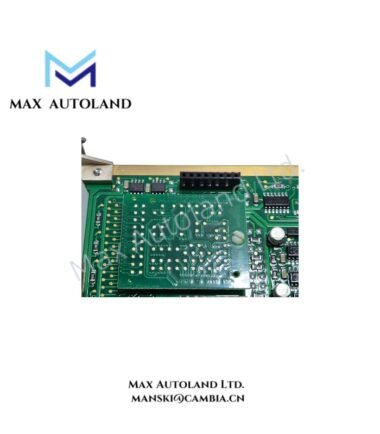

Honeywell 05701-A-0145 System 57 Four-Channel 4-20 mA Control Card

Overview

The Honeywell 05701-A-0145, also cataloged as the 05701-A-0145 Four-Channel 4-20 mA Control Card, operates as a dedicated hardware component for processing analog detector transmitter signals within the Honeywell System 57 gas detection control platform.

Hardware Specifications

4-20 mA HART Loop and Process Signal Interface Characteristics

The Honeywell 05701-A-0145 is designed for analog signal acquisition from gas detection transmitters using the 4-20 mA current loop standard. The input circuitry supports current sink and current source configurations for flexible detector connection. Channel processing provides independent monitoring of up to four detector inputs with individual alarm threshold management.

The module architecture supports signal integrity functions required for process instrumentation environments, including channel-to-channel isolation considerations, stable analog measurement conversion, and continuous status monitoring of connected field devices. Alarm indication is provided through dedicated LED states for A1, A2, A3 conditions, faults, inhibits, and power status.

Frequently Asked Questions (FAQ)

Q: Does the Honeywell 05701-A-0145 support hot replacement of individual control cards?
A: The System 57 card design allows individual control cards to be removed or replaced without disturbing adjacent channel wiring. Field wiring remains connected through the associated termination arrangement.

Q: What type of field devices can be connected to this control card?
A: The module accepts standard 4-20 mA transmitter signals from gas detectors, flame detectors, and compatible analog measurement devices configured as current sink or current source inputs.

Q: What display information is available directly from the module?
A: The integrated display provides analog bar graph indication, digital measurement values, alarm status, fault indication, inhibit status, and power indication through LCD and LED elements.

Field Installation Guidelines

• Install the control card within the designated Honeywell System 57 rack assembly using the approved module mounting position.
• Verify the DC supply voltage range before energizing the module.
• Maintain proper separation between analog signal wiring and high-current power conductors to reduce electrical interference.
• Use shielded field wiring for low-level 4-20 mA detector signals where required by the installation environment.
• Connect cable shields according to the site grounding standard and avoid creating unintended ground loops.
• Confirm transmitter polarity and current loop configuration before connecting field devices.
• Verify alarm thresholds, input scaling, and detector configuration after installation.
