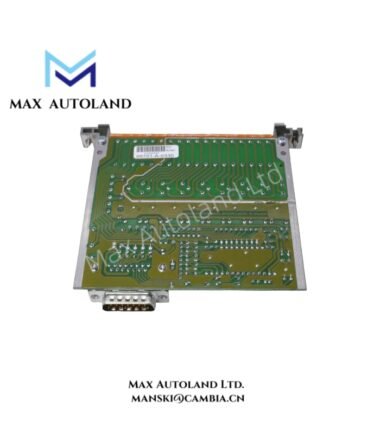

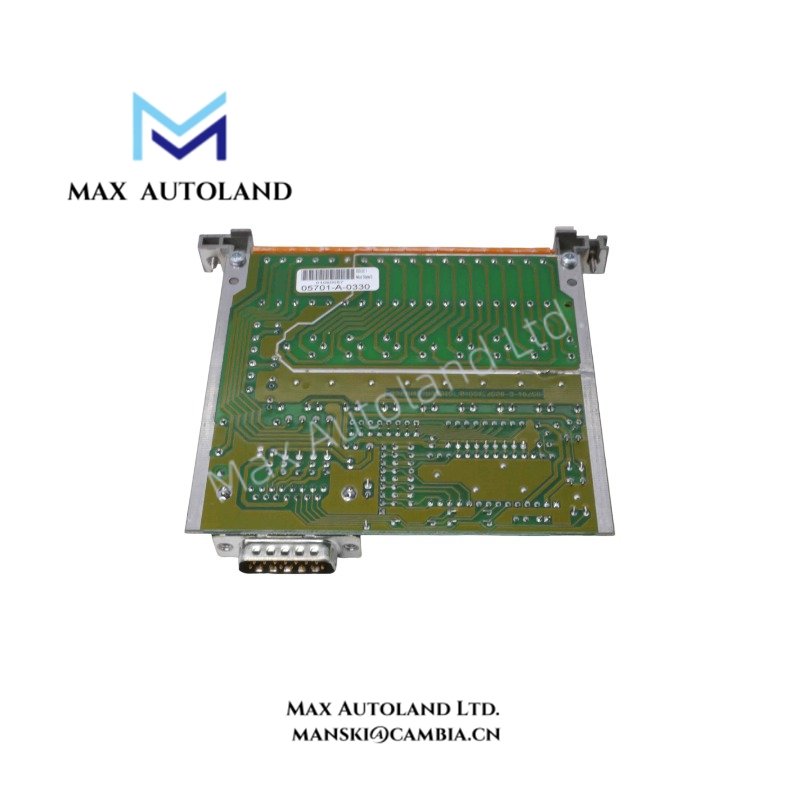

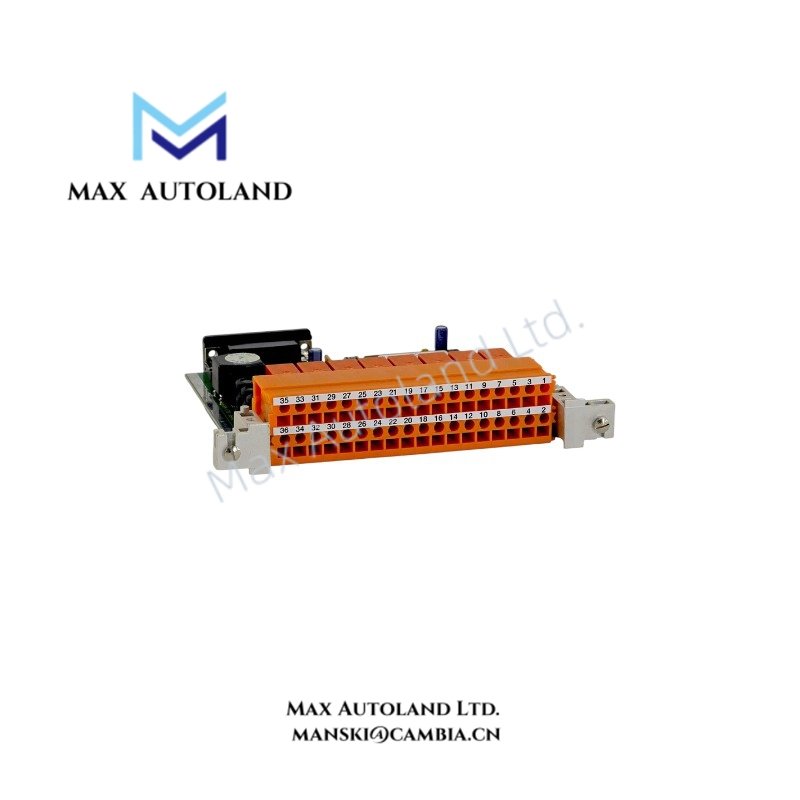

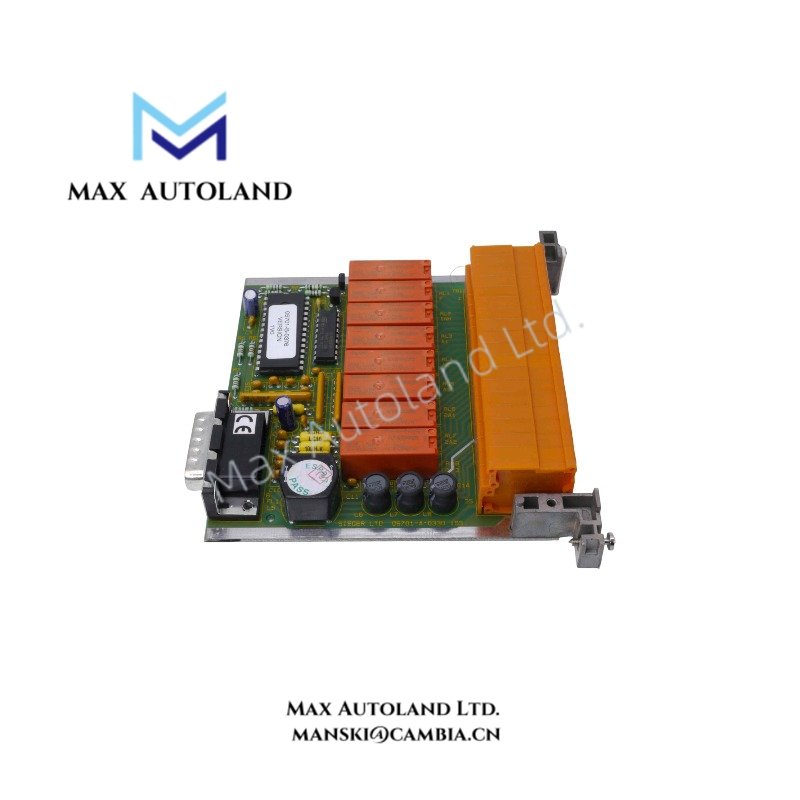

Honeywell 05701-A-0330 System 57 Control Card Module

Overview

The Honeywell 05701-A-0330, also cataloged as the 05701-A-0330 System 57 Control Card Module, operates as a dedicated hardware component for signal processing, alarm execution, and sensor loop monitoring within the Honeywell System 57 gas detection platform.

Hardware Specifications

4-20 mA Process Interface and Signal Monitoring

The Honeywell 05701-A-0330 processes field sensor signals through standard 4-20 mA current loop interfaces used in System 57 installations. Moreover, the module supports alarm decision logic by evaluating measured input conditions and activating configured relay outputs for Alarm 1, Alarm 2, and Fault states.

The module design follows Honeywell process monitoring practices with channel signal conditioning and controlled alarm handling. In addition, it supports analog retransmission through a 4-20 mA output for connection to external PLC or DCS monitoring systems.

The input and output circuits are designed for industrial instrumentation environments, where signal integrity, channel separation, and controlled alarm response are required. Therefore, installation practices should maintain proper field wiring separation between sensor circuits and high-voltage conductors.

Frequently Asked Questions

Q: Does the Honeywell 05701-A-0330 support direct connection to System 57 gas detector inputs?
A: Yes. The module accepts compatible Honeywell System 57 sensor signals, including standard 4-20 mA current loop inputs.

Q: What alarm functions are available on the 05701-A-0330 module?
A: The module provides relay outputs for Alarm 1, Alarm 2, and Fault conditions, with configurable threshold and latching settings.

Q: Can the module provide data to external control systems?
A: Yes. The module provides a 4-20 mA analog output for PLC or DCS interfacing and remote monitoring applications.

Field Installation Guidelines

• Install the 05701-A-0330 module only within compatible Honeywell System 57 rack assemblies.
• Verify that the rack backplane provides the required 18 VDC to 32 VDC operating supply before installation.
• Confirm field sensor wiring polarity and signal type before connecting 4-20 mA loops.
• Separate low-level sensor signal cables from power cables to reduce electrical interference.
• Connect cable shields according to site grounding standards and avoid multiple grounding points that may introduce ground loops.
• Inspect the front panel LED indicators after installation to confirm power, alarm, and fault status operation.
• Follow System 57 maintenance procedures when removing or replacing the plug-in card module.
