Overview

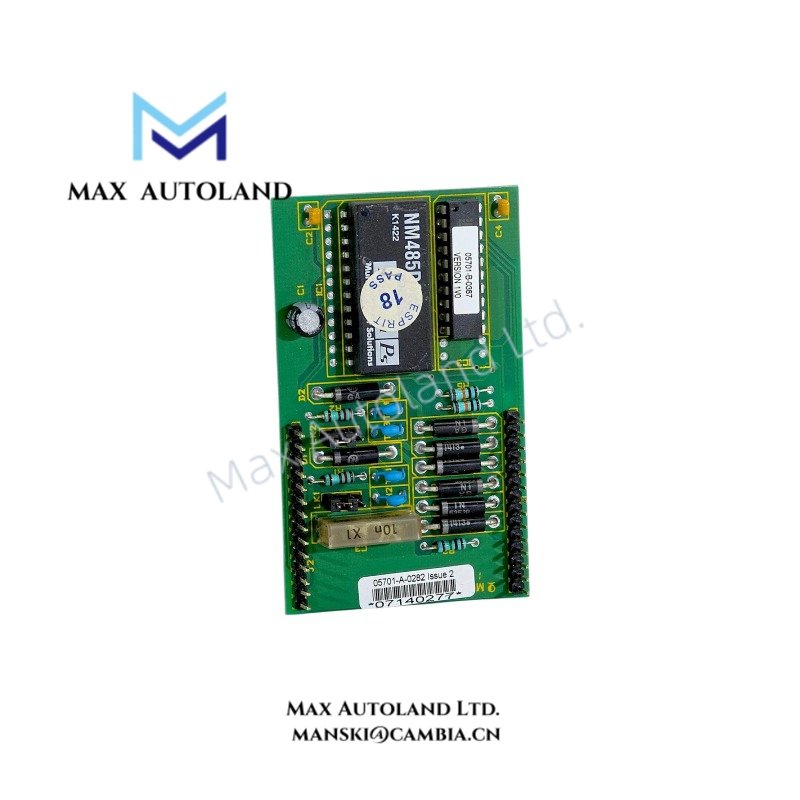

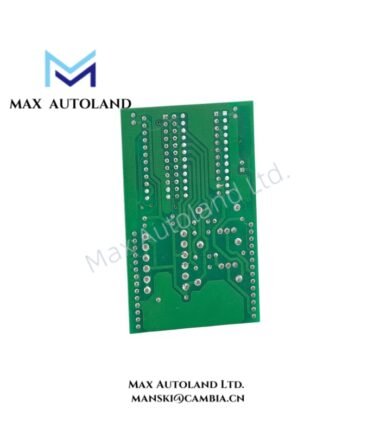

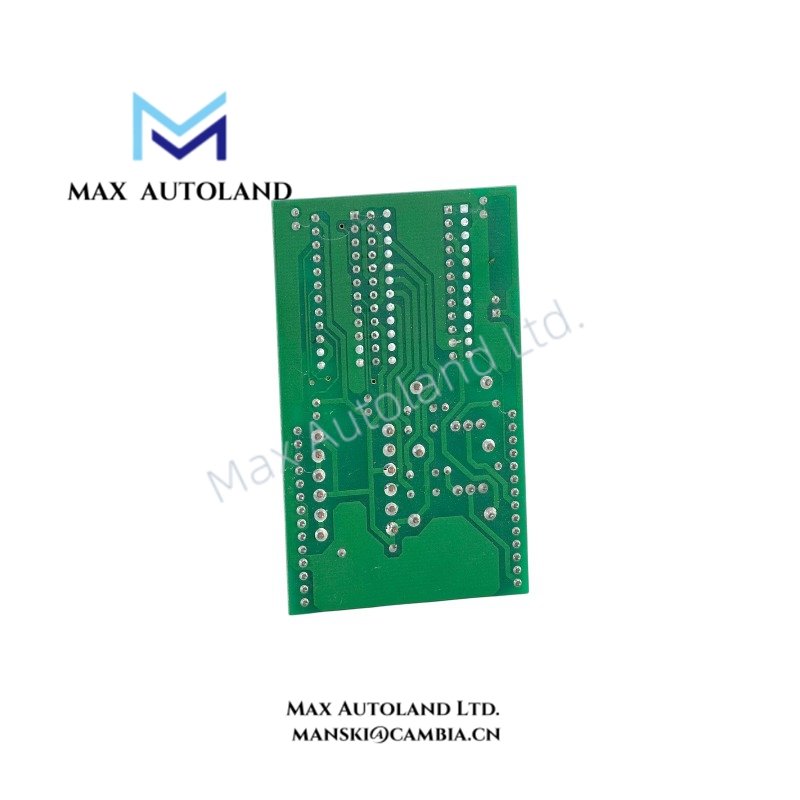

The Honeywell 05701-A-0282, also cataloged as the 05701-A-0282 MODBUS Interface Module, operates as a dedicated hardware component for serial data exchange between Honeywell System 57 control cards and external monitoring systems through MODBUS RTU communication.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 05701-A-0282 |
| Brand | Honeywell |
| Product Type | MODBUS Interface Modules |
| System Compatibility | Honeywell System 57, including 5701, 5704, and 5704F Control Cards |
| Communication Protocol | MODBUS RTU |
| Electrical Interface | RS485 / RS422 serial communication |
| Transmission Mode | Asynchronous serial link with configurable baud rate, parity, and stop bits |
| Multi-drop Capability | Up to 32 nodes on RS485 and up to 10 nodes on RS422 |
| Supported MODBUS Functions | Function codes 02, 03, 04, 06, and 16 |
| Field Wiring Capacity | Up to 2.5 mm2 via terminal block |
| Origin | Not specified in supplied data |
| Weight | 0.43 kg |
| Dimensions | 26.3 cm x 5.8 cm x 2.8 cm |
| Signal Isolation | Communication signals isolated from System 57 power supply |
Process Control Communication Interface
The Honeywell 05701-A-0282 provides direct serial communication between System 57 control cards and external supervisory equipment. Moreover, the module transfers real-time gas detection values, alarm conditions, and fault information to host systems such as PLC, DCS, or SCADA platforms.
The module supports RS485 and RS422 physical layers for industrial serial networks. Therefore, it allows multiple monitoring devices to exchange data through MODBUS RTU registers while maintaining electrical separation from the System 57 power supply.
In addition, the interface supports remote commands from the host system, including inhibit, reset, normalize, calibration, and alarm threshold configuration operations. The communication design separates field data exchange from the controller power circuits to reduce signal interference during operation.
Frequently Asked Questions
Q: What communication protocol does the Honeywell 05701-A-0282 support?
A: The module supports MODBUS RTU communication through RS485 and RS422 serial interfaces with configurable asynchronous communication parameters.
Q: Can the 05701-A-0282 communicate with external PLC or DCS systems?
A: Yes. The module transfers System 57 status data and measurement information to external PLC, DCS, and SCADA systems through MODBUS RTU registers.
Q: Does the module provide electrical isolation between communication and system power circuits?
A: Yes. The communication signals are isolated from the System 57 power supply to reduce ground loop effects and electrical interference.
Field Installation Guidelines
Install the Honeywell 05701-A-0282 module directly onto the designated Engineering Card interface within the System 57 configuration.
Use shielded communication cables for RS485 or RS422 wiring where required by the installation environment. Connect cable shields according to site grounding practices to minimize electromagnetic interference.
Maintain separation between serial communication wiring and high-voltage power cables. Verify terminal block wiring, communication parameters, and MODBUS addressing before connecting the module to external PLC, DCS, or SCADA equipment.
Confirm that the System 57 controller configuration matches the installed communication settings before placing the module into operational service.
