Overview

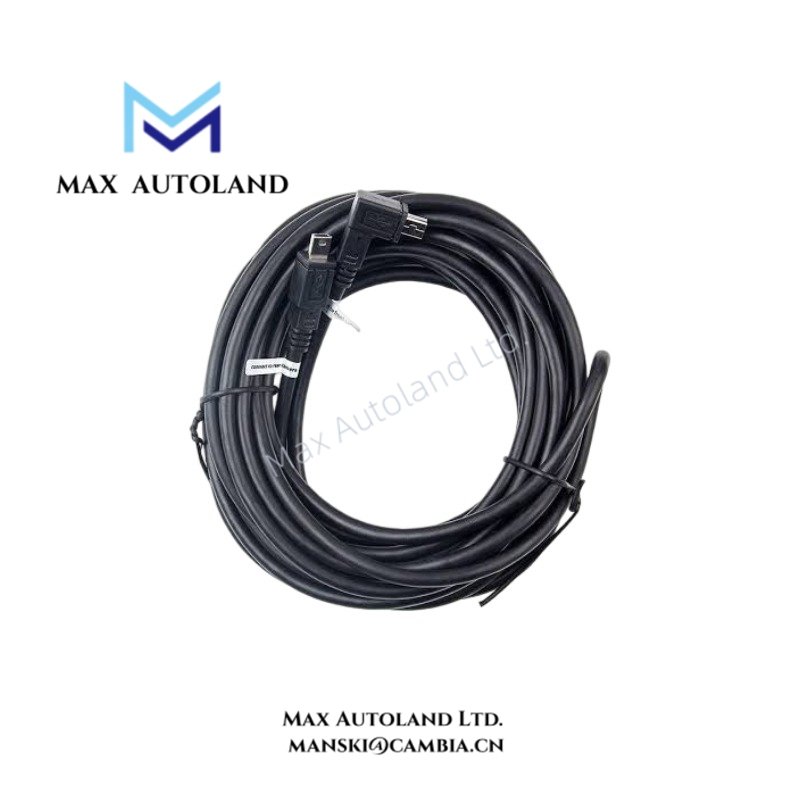

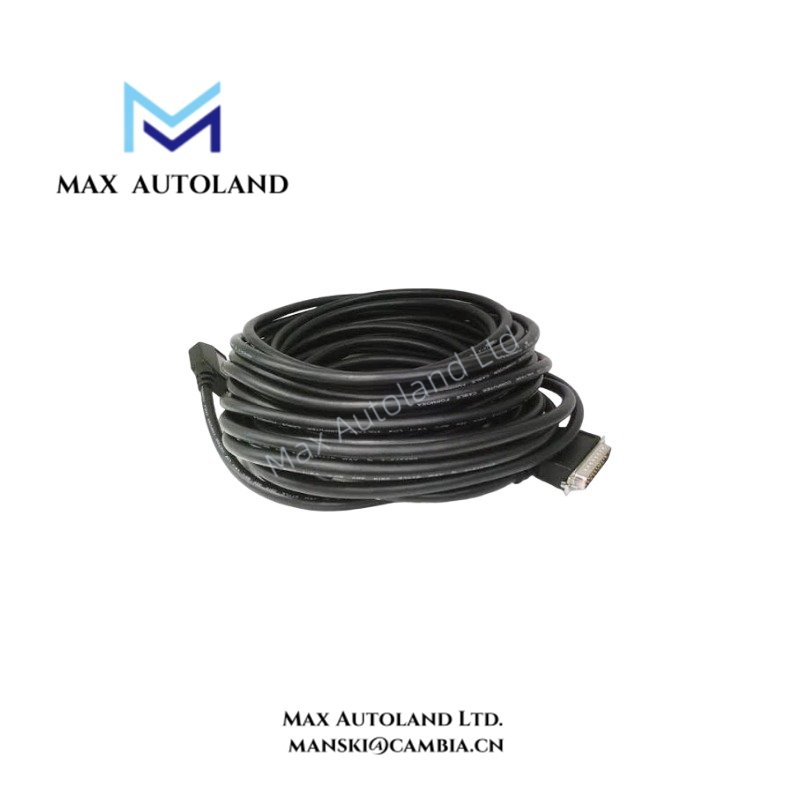

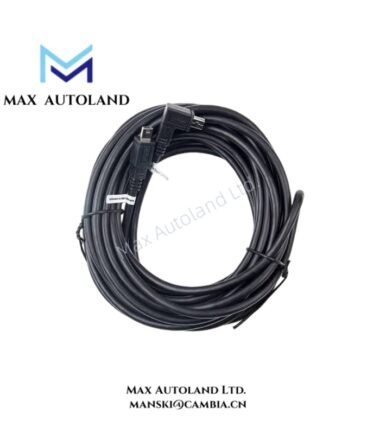

The GE Fanuc IC693CBL302 is a 15 m I/O bus expansion cable designed for use with Series 90-30 PLC systems. It connects compatible system components within an expansion link and is intended for use as the final cable in the link. Its continuous shield, Wye adapter configuration, and terminated end connector distinguish it from a standard extension cable. Confirm the required cable arrangement and termination before selecting it for a replacement.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC693CBL302 |
| Brand | GE Fanuc Emerson |
| Product Line | Series 90-30 |
| Product Type | I/O Bus Expansion Cable |
| Function | I/O bus expansion |
| Cable Length | 15 m |
| Shielding | Continuous shield |
| Adapter Configuration | Wye adapter |
| First-End Connector | Single male connector |
| Second-End Connector | Single male connector with terminated ends |
| End Termination | Resistors present on the end connector |
| Weight | 3.75 lb (1.70 kg) |
| Catalog Category | Accessories |
| Lifecycle Status | Discontinued / Obsolete |
Cable Termination and System Configuration
The IC693CBL302 serves as the final cable in an I/O expansion link. Its end termination helps establish the required bus termination arrangement. Therefore, verify the physical connector layout and termination requirements against the installed PLC configuration before replacing an existing cable.
The maximum number of expansion connections depends on the CPU and system configuration. Do not assume that every Series 90-30 CPU supports the same expansion arrangement or cable count.
Frequently Asked Questions
Q: What is the primary function of the IC693CBL302?
A: It connects compatible components in a Series 90-30 PLC I/O expansion link. The specified 15 m length supports the designated cable arrangement.
Q: Can the IC693CBL302 be used as an intermediate cable?
A: The supplied information identifies this model for use as the final cable in the link. Verify the required cable position before installation.
Q: Is the IC693CBL302 still in production?
A: The supplied product information lists it as discontinued or obsolete. Confirm the exact part number and connector configuration when sourcing a replacement.
