Overview

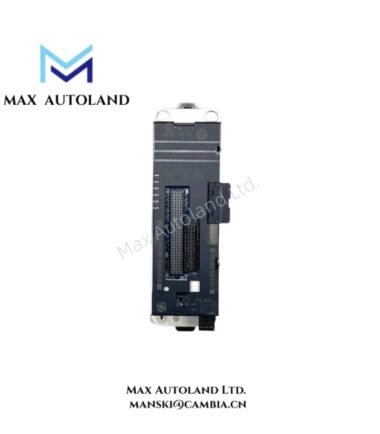

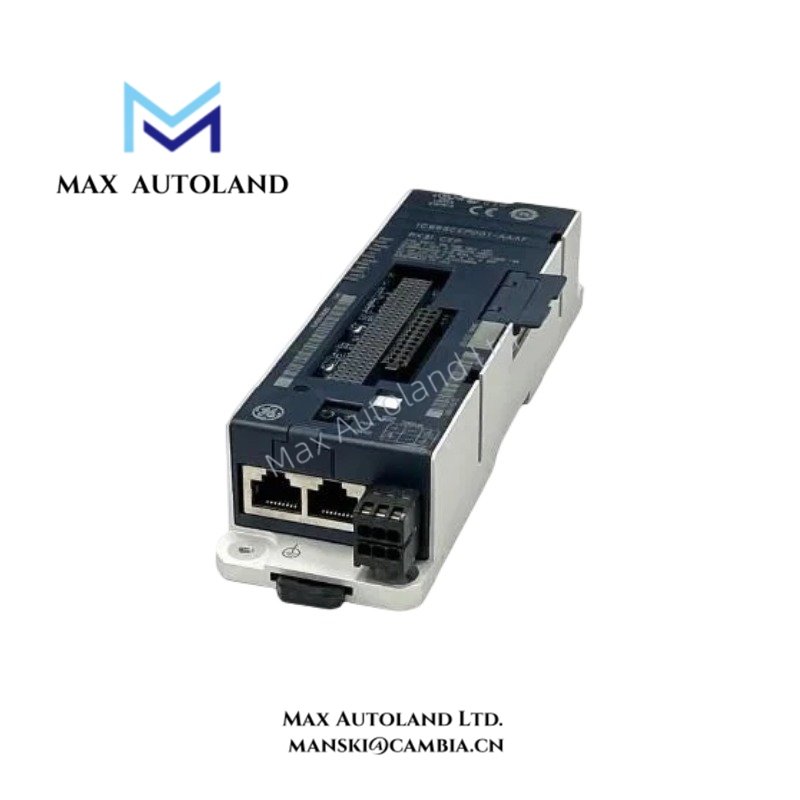

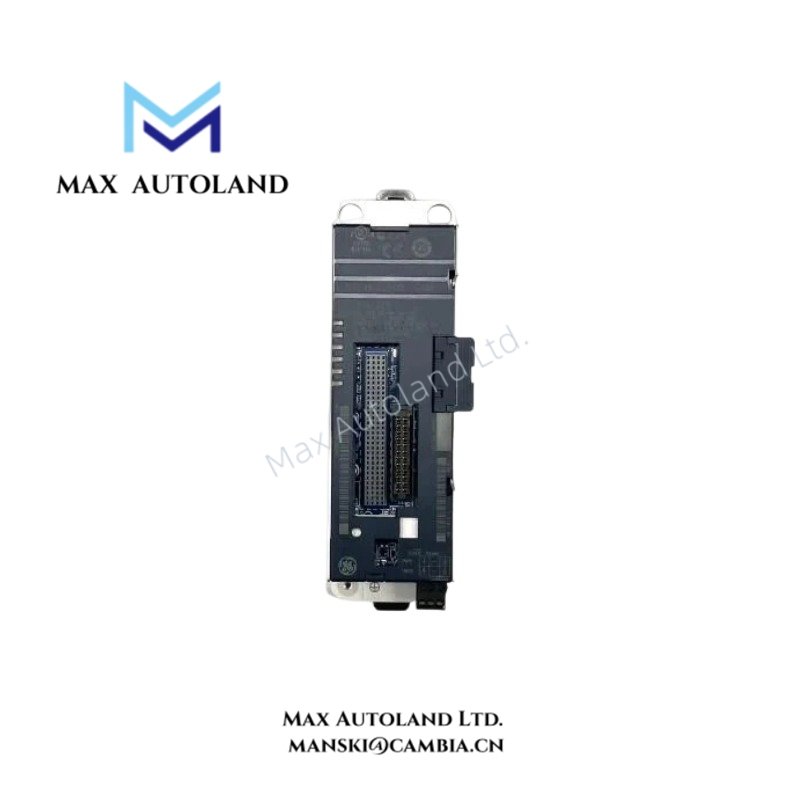

The IC695CEP001 is a GE Fanuc RX3i PACSystems CEP carrier designed for PROFINET communication between an RX3i control system and its associated I/O station. It provides two RJ-45 copper Ethernet ports for network connectivity and a Micro-B USB 2.0 port for firmware-related functions. The carrier operates from a 19.2 to 30 VDC supply and supports PROFINET version 2.3, Class A.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC695CEP001 |
| Brand | GE Fanuc |
| Product Line | RX3i PACSystems |
| Product Type | PROFINET CEP Carrier |
| Interface Type | RJ-45 Copper Ethernet |
| PROFINET Version | 2.3, Class A |
| Supply Voltage Range | 19.2-30 VDC |
| Power Consumption | 5.25 W at 24 VDC |
| Current Consumption | 0.22 A at 24 VDC |
| Ethernet Ports | 2 x RJ-45 |
| Ethernet Interface | 10/100BASE-TX |
| USB Port | 1 x Micro-B, USB 2.0 compliant |
| I/O Modules per Station | 1 |
| Total I/O Data per Station | 1024 bytes |
| Input Data Capacity | 512 bytes |
| Output Data Capacity | 512 bytes |
| Operating Temperature | 0 to 60 deg C (32 to 140 deg F) |
| Weight | 1.00 lb (0.45 kg) |
PROFINET Communication and I/O Data
The IC695CEP001 provides the network interface for a supported RX3i PROFINET I/O station. Its two Ethernet ports use copper cabling and support 10/100BASE-TX communication. The specified I/O data capacity is 1024 bytes per station, divided equally between 512 bytes of input data and 512 bytes of output data.
This capacity defines the process data available for cyclic exchange with the controller. When selecting the carrier, verify that the required input and output data sizes fit within these limits and that the intended controller configuration supports the carrier.
Power Supply and USB Interface
The carrier accepts a DC supply between 19.2 and 30 VDC. Its specified power consumption is 5.25 W at 24 VDC, equivalent to approximately 0.22 A at the stated operating voltage. Power supply selection should account for the carrier’s requirements alongside those of the other installed equipment.
The Micro-B USB 2.0 connector provides a separate interface for firmware-related functions. Its presence does not establish support for every programming, configuration, or diagnostic operation; confirm the required procedure against the applicable technical documentation.
Frequently Asked Questions
Q: What is the main function of the GE Fanuc IC695CEP001?
A: It serves as a CEP carrier with a copper Ethernet interface for PROFINET communication in a supported RX3i PACSystems configuration. It provides two RJ-45 ports and a Micro-B USB interface.
Q: How much I/O data can the IC695CEP001 support per station?
A: The specified capacity is 1024 bytes per station, comprising 512 bytes of input data and 512 bytes of output data.
Q: What power supply does the IC695CEP001 require?
A: It operates within a supply range of 19.2 to 30 VDC. The specified consumption is 5.25 W, or approximately 0.22 A, at 24 VDC.
