Overview

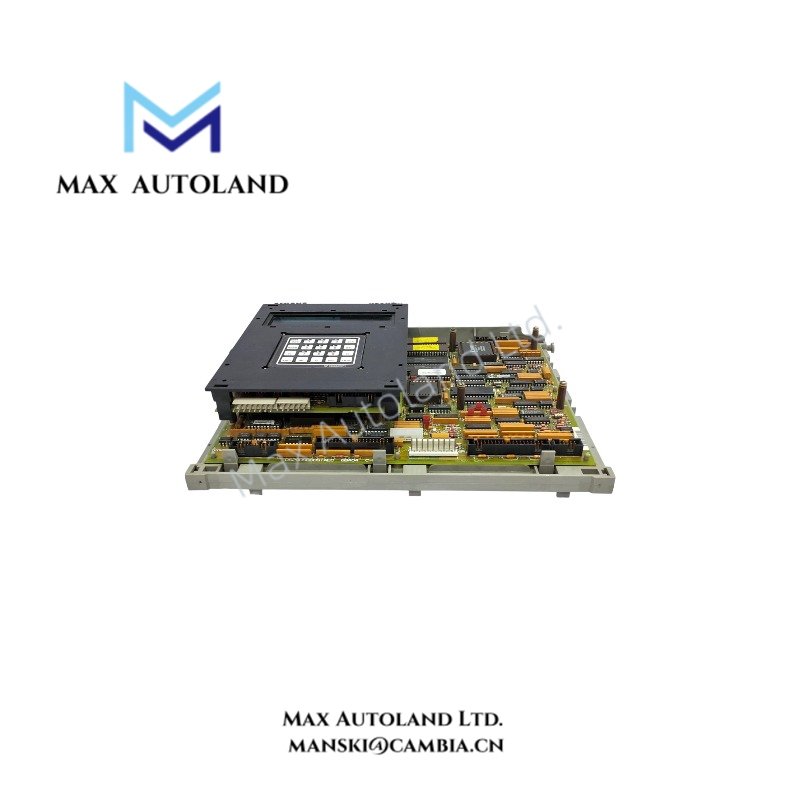

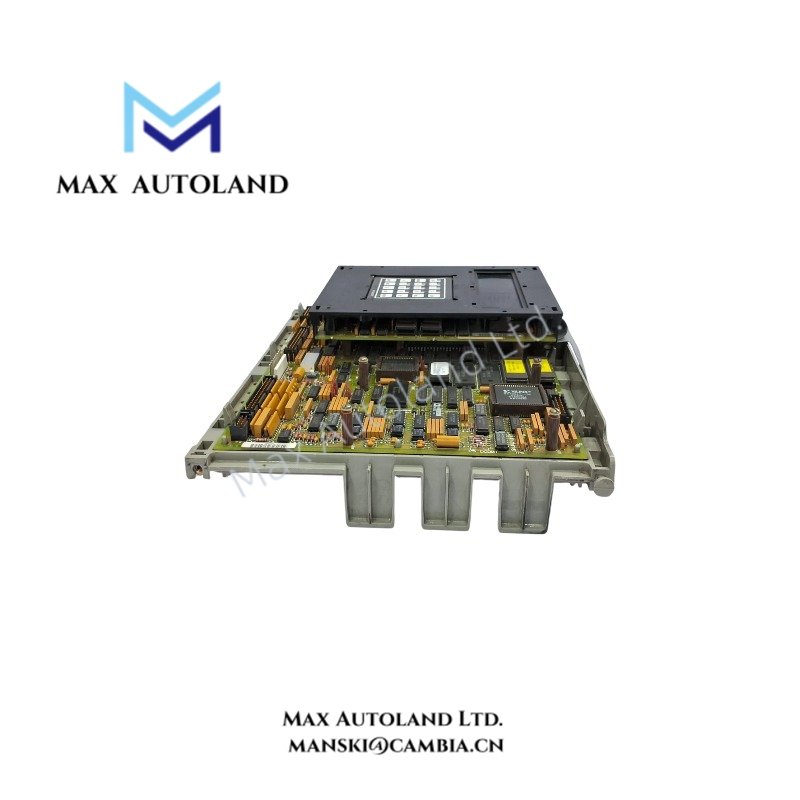

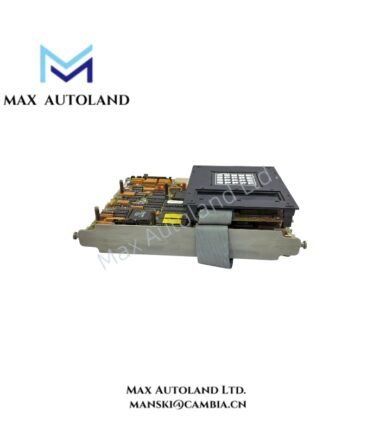

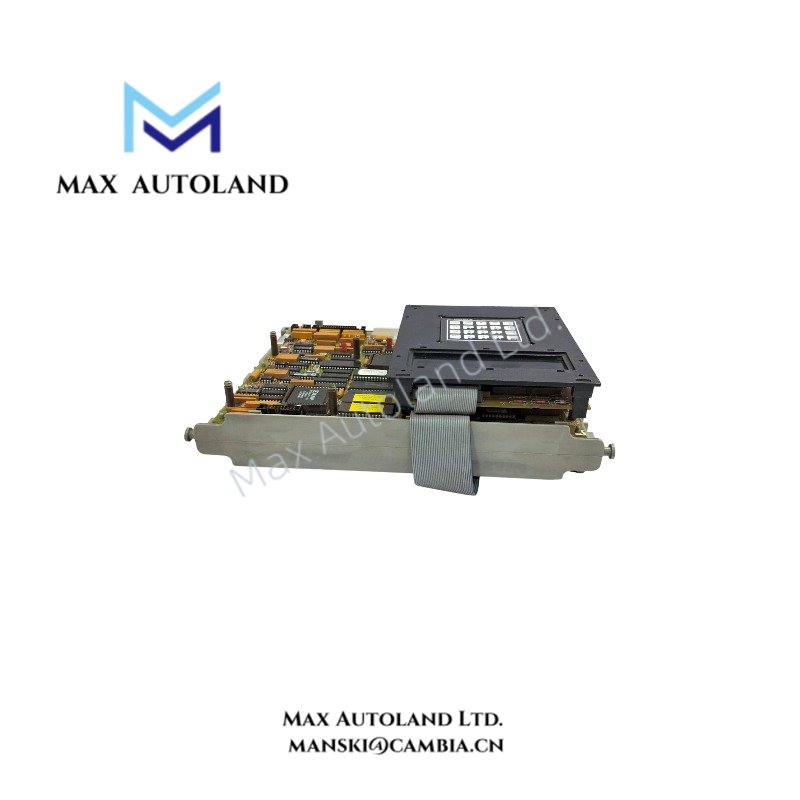

The GE DS200SIOCG1AEA, also cataloged under the DS200SIOCG1A base model family, is a printed circuit board associated with the GE Mark V control platform. The supplied description identifies it as a SIOC board for I/O interfacing and signal processing. Its exact electrical interfaces and channel-level functions require confirmation against the applicable GE documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200SIOCG1AEA |
| Base Model | DS200SIOCG1A |
| Brand | General Electric (GE) |
| Product Series | Mark V |
| Board Type | SIOC board |
| Product Parameters | I/O interfacing and signal processing |
| Origin | USA, as provided in the product information |
| Tariff Code | 8537101190 |
Backplane Communication and Hardware Compatibility
The DS200SIOCG1AEA belongs to the GE DS200 board family identified in the supplied description. Before installation, verify the board’s rack position, connector assignments, backplane interface, and applicable hardware revision against the Mark V system documentation.
The supplied information does not establish specific backplane communication rates, I/O channel counts, voltage ratings, or firmware compatibility. These parameters should not be inferred from the model suffix or the base model designation alone.
Frequently Asked Questions (FAQ)
Q: Is the DS200SIOCG1AEA compatible with every GE Mark V rack?
A: Universal rack compatibility is not established by the supplied information. Confirm the board location, connector configuration, hardware revision, and system configuration in the applicable GE documentation before replacement.
Q: What are the operating voltage and power consumption of the DS200SIOCG1AEA?
A: The available information does not specify its supply voltage or power consumption. Check the original hardware documentation and rack power specifications before energizing the board.
Q: Can the DS200SIOCG1AEA be replaced while the control system is energized?
A: Hot-swap support is not confirmed. Follow the approved shutdown and isolation procedure unless the system documentation explicitly permits live replacement for this board and installation.
Field Installation Guidelines
- Verify the part number: Compare the complete DS200SIOCG1AEA designation and board revision with the installed hardware and approved replacement documentation.
- Isolate the equipment: Follow the site lockout and electrical isolation procedure before removing or inserting the board, unless an approved procedure explicitly authorizes live replacement.
- Inspect the connectors: Check the board edge contacts, backplane connectors, retaining hardware, and surrounding components for physical damage or contamination.
- Control electrostatic discharge: Use an approved ESD wrist strap and grounded work surface when handling the circuit board.
- Check wiring and grounding: Preserve the documented cable routing, shielding, and grounding arrangements. Do not change signal connections based on assumed terminal assignments.
- Verify system configuration: Confirm the rack position, firmware requirements, and configuration compatibility using the applicable GE manuals.
- Perform functional checks: After installation, follow the approved commissioning procedure and verify system diagnostics, communication status, and relevant I/O functions before returning the equipment to service.
