Overview

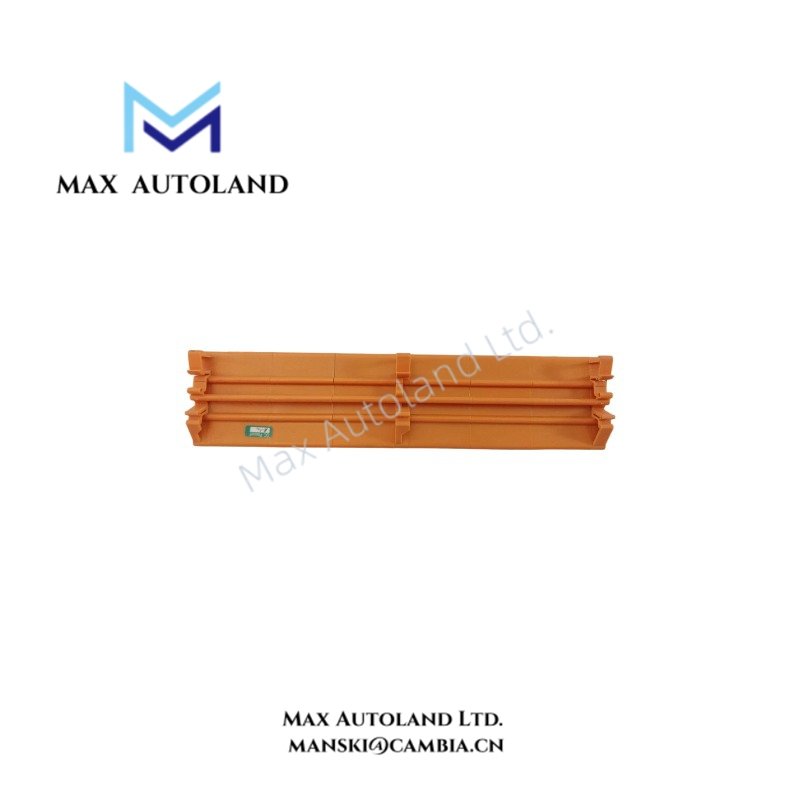

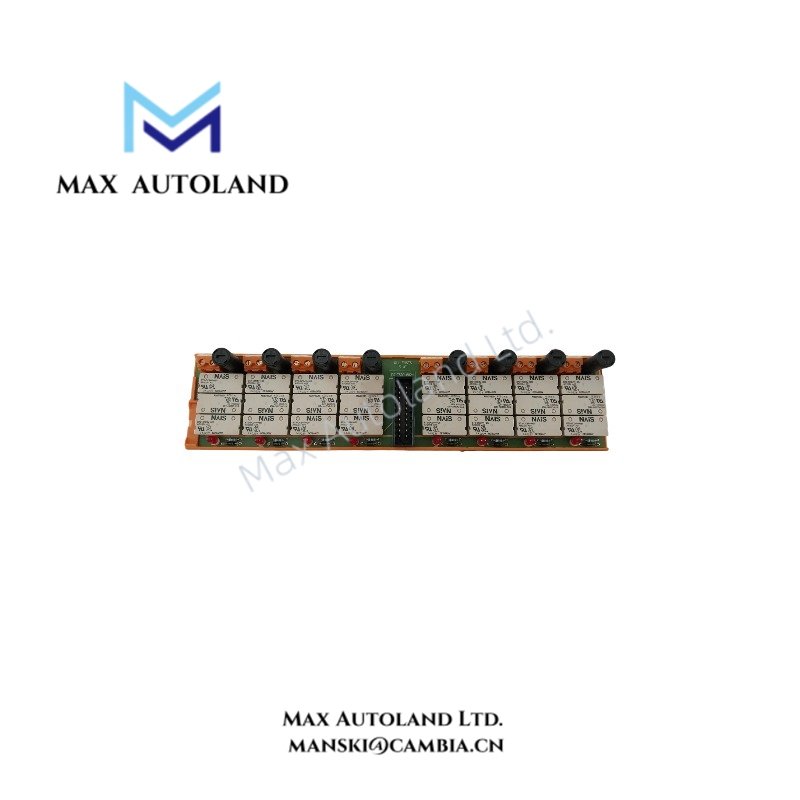

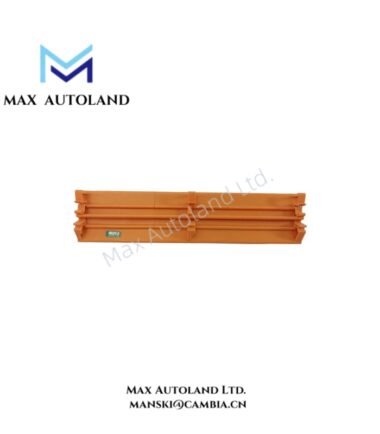

The Honeywell FS-TSRO-0824, also cataloged as the TSRO-0824 Safe Dry Digital Output Field Termination Assembly, provides eight relay-based output channels for Safety Manager safety instrumented systems. It interfaces the SICC-0001/Lx system interconnection cable with external field wiring. Each channel uses relay contacts to switch field circuits, with fused normally open contacts and individual LED status indicators.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FS-TSRO-0824 |
| Spare Model | TSRO-0824 |
| Brand | Honeywell |
| Product Type | Safe Dry Digital Output Field Termination Assembly |
| Origin | USA |
| Weight | 0.5 kg |
| Dimensions | 30 x 7 x 5.8 cm |
| Power Consumption | Typically 40 mA at 24 VDC input |
| Nominal Input Voltage | 24 VDC |
| Maximum Input Voltage | 36 VDC |
| Relay Pick-up Voltage | 19.2 VDC |
| Number of Output Channels | 8 |
| Output Contact Type | Floating, non-commoned, normally open |
| Maximum Output Current | 5 A per fused output, as specified |
| Maximum Output Voltage | 250 VAC / 250 VDC |
| Maximum Switched Load | 1250 VA AC / 150 W DC |
| Relay Architecture | Three relays per output channel |
| Channel Status | Individual LED indicators |
| Safety Class | Up to SIL 3, as specified |
| Approvals | CE, UL, TUV, CSA |
| Tariff Code | 8537101190 |
Relay Output Architecture and Safety Interface

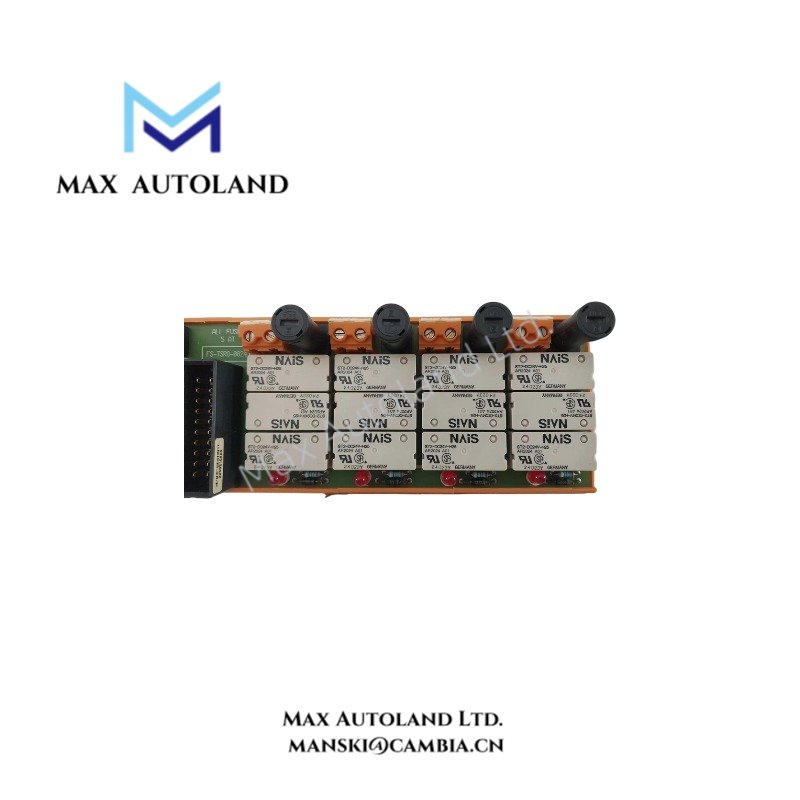

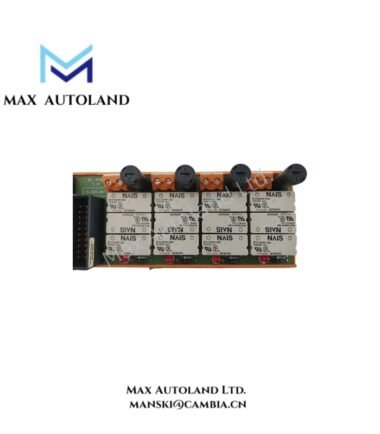

The FS-TSRO-0824 uses relay-based switching to provide eight separate field output circuits. Each channel incorporates three relays, a fused normally open field contact, and an LED status indicator. The floating, non-commoned contacts allow field circuits to be wired independently, subject to the applicable system wiring and electrical ratings.
The assembly connects to the SICC-0001/Lx system interconnection cable. Before integrating the module into a safety-related output circuit, verify the applicable Safety Manager hardware configuration, approved wiring diagrams, fuse ratings, and load characteristics. The stated SIL 3 classification must be confirmed against the manufacturer’s certification and the complete safety loop configuration.
Frequently Asked Questions (FAQ)
Q: How many output channels does the FS-TSRO-0824 provide?
A: The assembly provides eight relay-based output channels, each with a fused normally open field contact and an individual LED status indicator.
Q: What are the maximum specified output ratings?
A: The supplied specifications state a maximum output current of 5 A per fused output, a maximum switching voltage of 250 VAC or 250 VDC, and maximum switched loads of 1250 VA AC or 150 W DC. Confirm the manufacturer’s contact ratings and load-specific restrictions before connecting field equipment.
Q: Are the output contacts electrically commoned between channels?
A: The specified contacts are floating and non-commoned. Each field circuit can therefore be wired independently within the module’s approved electrical limits and system wiring requirements.
Field Installation Guidelines
- Verify the complete model number and hardware compatibility with the intended Honeywell Safety Manager configuration before installation.
- Confirm that the SICC-0001/Lx interconnection cable matches the applicable system wiring documentation.
- Isolate field power before connecting or disconnecting output wiring.
- Observe the specified voltage, current, fuse, and switching-load limits for each output circuit.
- Keep field wiring organized and separate from noise-sensitive signal wiring where required by the installation design.
- Apply grounding, shielding, and cable routing practices specified in the manufacturer’s installation documentation.
- Verify relay operation, LED status indication, and field load response during commissioning.
- Do not assume hot-swap capability or a particular de-energized output state without confirmation in the official hardware documentation.
