Overview

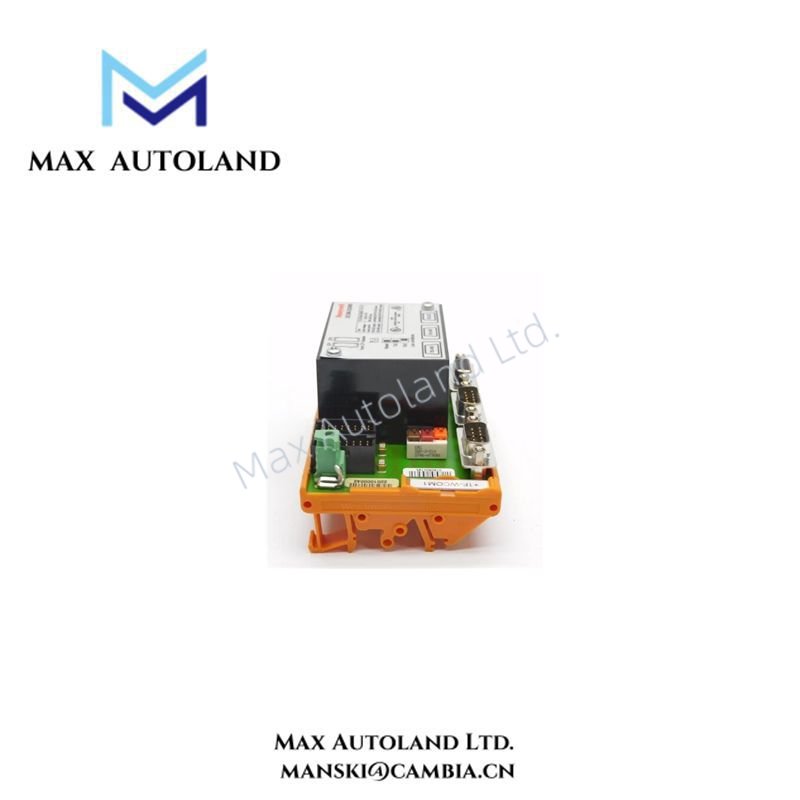

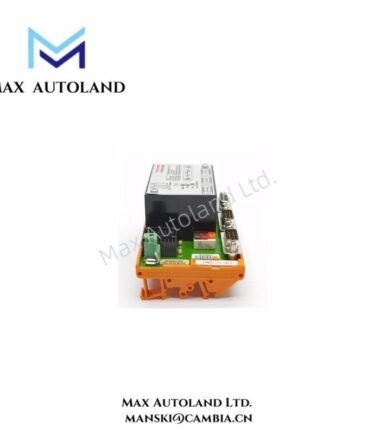

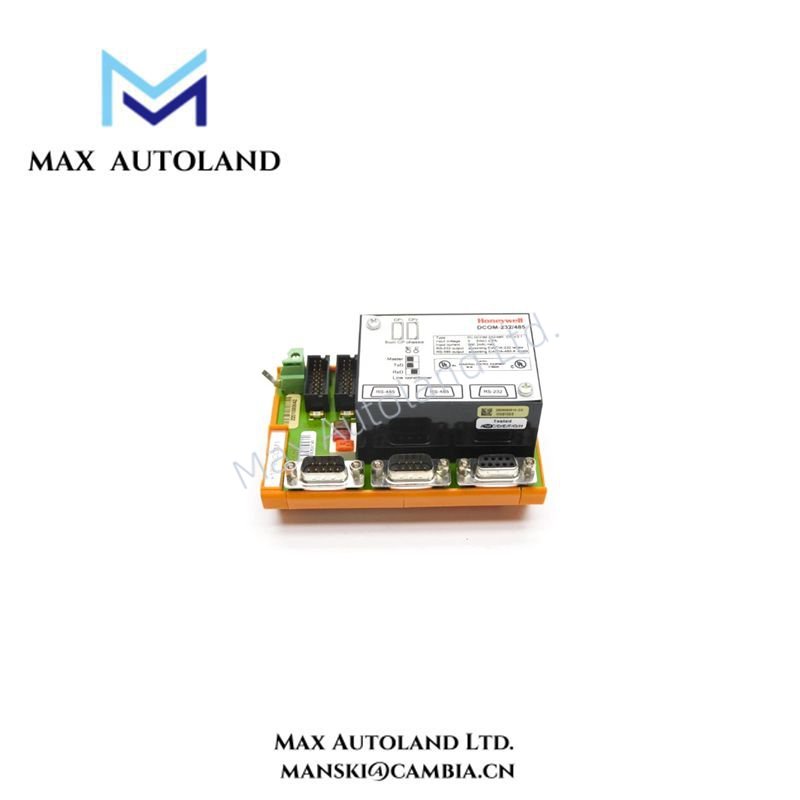

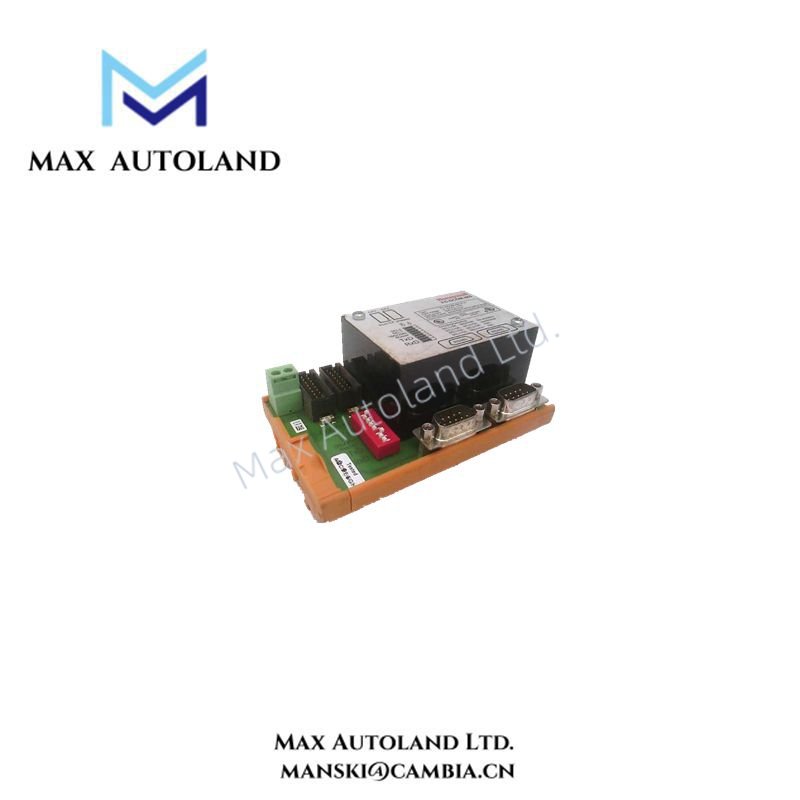

The Honeywell FC-DCOM-234/485 is a versatile communication interface module that connects industrial devices with speed and reliability. It actively manages protocol conversion between RS-232, RS-422, and RS-485, so engineers can maintain compatibility across diverse control systems without interruptions.
In addition, the communication FTA DCOM-485 serves as the dedicated RS-422/485 interface for Safety Manager. Through this module, Safety Manager gains direct access to RS-422/485 facilities, supporting Manchester, FM0, and FM1 modulation or demodulation. Moreover, it ensures smooth operation at both 1 Mb and 2 Mb, which makes it ideal for demanding safety-critical applications.
Specification
| General | Type number: | FC-DCOM-485 |
| Approvals: | CE,TUV,UL pending | |
| Physical | Module dimensions: | 110×70×61 mm(L×W×H) 4.33×2.76×2.40 in(L×W×H) |
| Earth Terminal dimensions: | 6×57×47 mm(L×W×H) 0.24×2.24×1.85 in(L×W×H) | |
| DIN EN rails: | TS32/TS35×7.5 | |
| Used ral length: | 117 mm(4.6 in) | |
| Power | Input voltage: | 5VDC±5% |
| Input current: | Max 500 mA,supplied by the Control Processor(s) | |
| Output | RS485/422 output: | According EIA/TIA-485-A levels |
| RS485/422 baud rate: | 0-2 MBaud (transparent,Manchester,FMO,FM1) |
