Overview

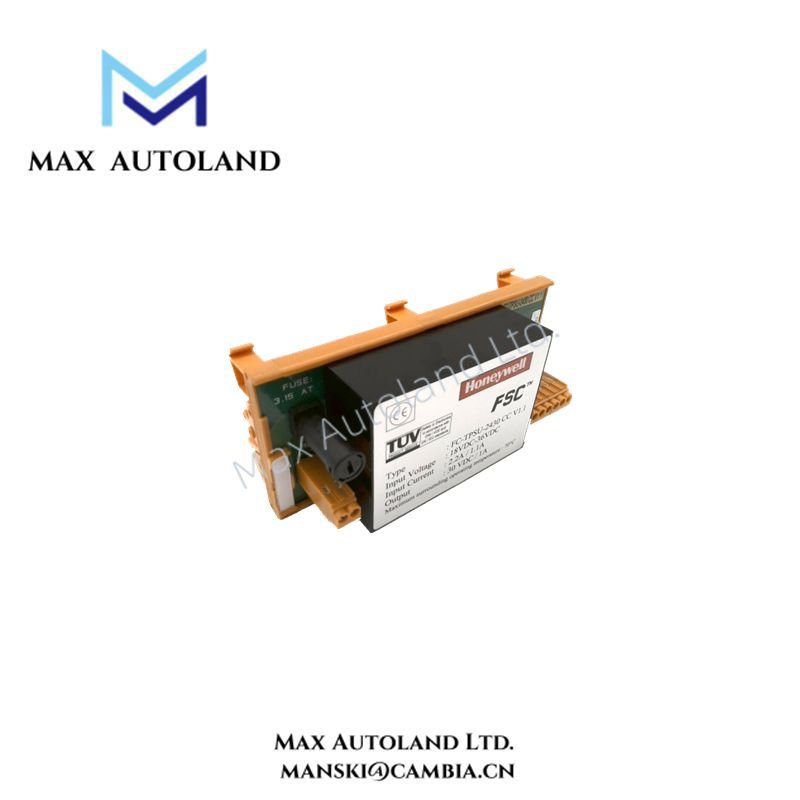

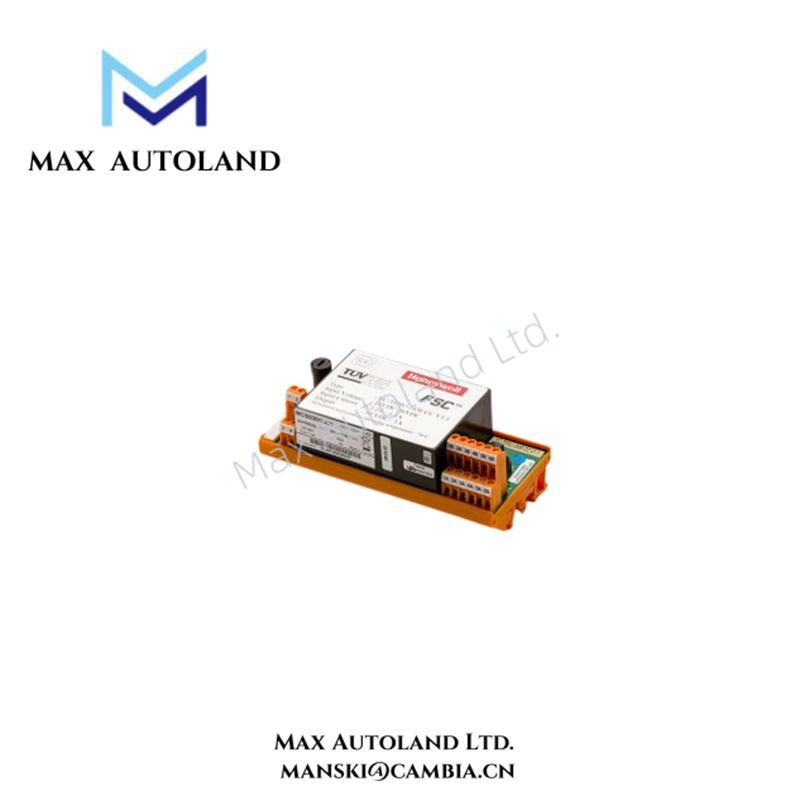

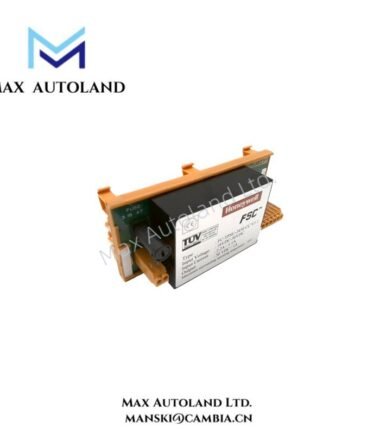

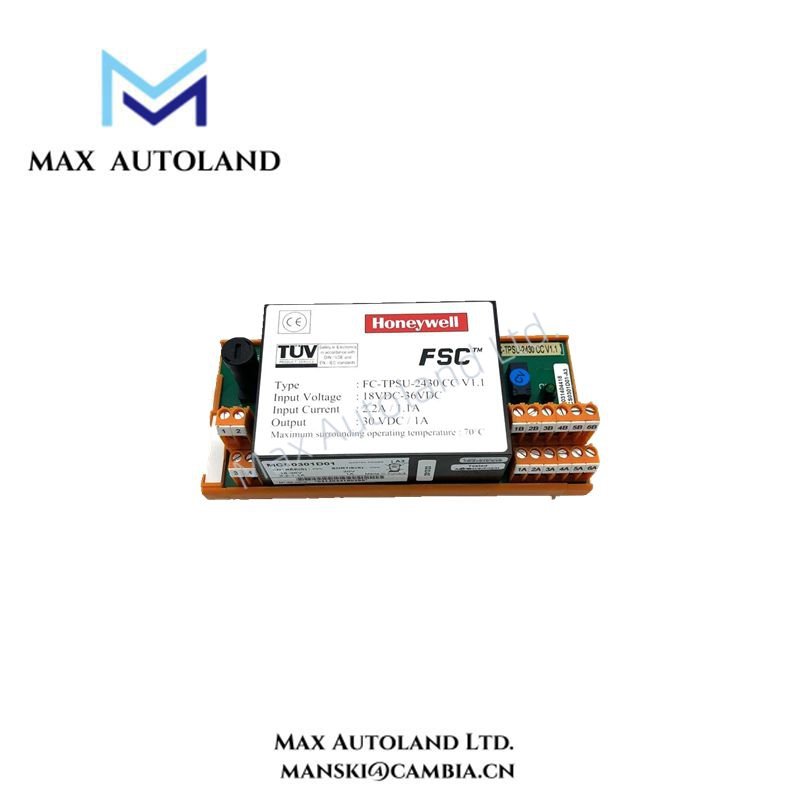

The Honeywell FC-TPSU-2430 is a robust DC-DC converter module designed to meet the demanding needs of industrial automation applications. It efficiently converts an 18–36 VDC input to a regulated 30 VDC output at 1 A, ensuring stable power delivery to connected devices. This module is particularly suitable for use with Honeywell’s Safety Manager system, providing reliable power conversion in safety-critical environments.
The TPSU-2430 module is a DC/DC converter, which provides an isolated 30 V DC / 1 A to other field termination assemblies (FTAs), such as the analog input FTA modules TSAI-1620m and TSHART-1620m.It has voltage monitoring capabilities with local LED indication and also provides alarm functions (read back relay contact). If the local DC/DC output voltage is OK, the LED is on and the read back relay contact is closed.
Specification
| General | Type numbers: | FS-TPSU-2430 |
| FC-TPSU-2430 | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Safety class: | up to and including SIL3 | |
| MTBF: | approx.400,000 hours | |
| Input | Nominal input voltage: | 24VDC |
| Input voltage range: | 18-36V DC | |
| Inrush current: | ≤4A(see note below) | |
| Output | Output voltage: | 30VDC,±0.25V |
| Output current: | 1A(short-circuit proof) | |
| Short-circuit current: | <3.3 A | |
| Ripple(0-30 MHz): | <0.1 Vrms | |
| Regulation: | <1%(load+line) | |
| Transient response: | class Caccording to NFC42801C | |
| Power-on overshoot | output<33V | |
| Overvoltage protection: | 33V | |
| Long-term stability(after 30 min.operation): | <0.3% | |
| Efficiency: | >75% | |
| Switching frequency: | >25 kHz | |
| Physical | Module dimensions: | 150×70×62.3 mm(L×W×H) 5.91×2.76×2.45 in(L×W×H) |
| DIN EN rails: | TS32/TS35×7.5 |
