Overview

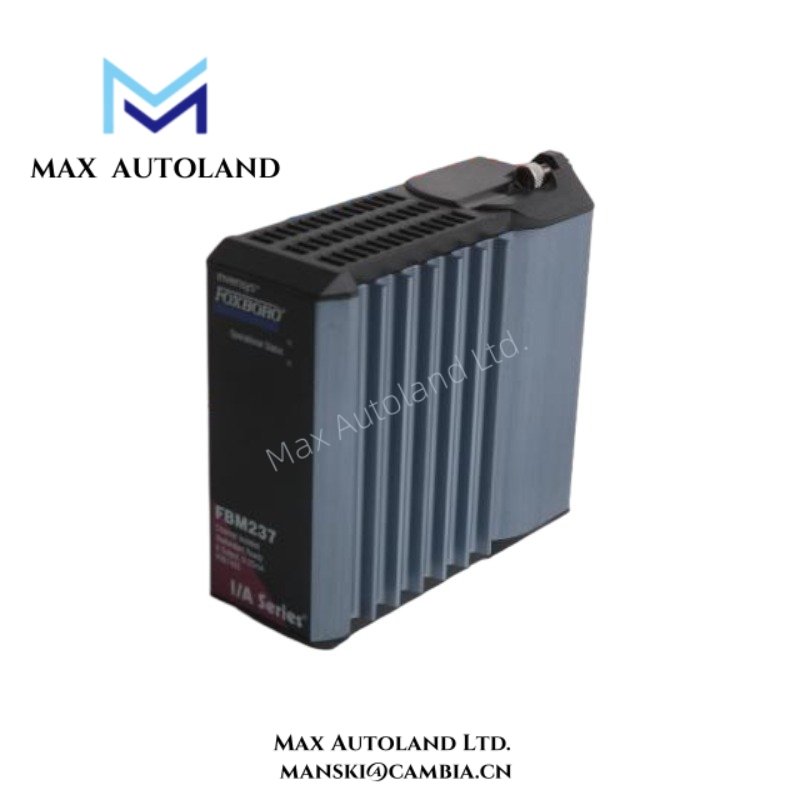

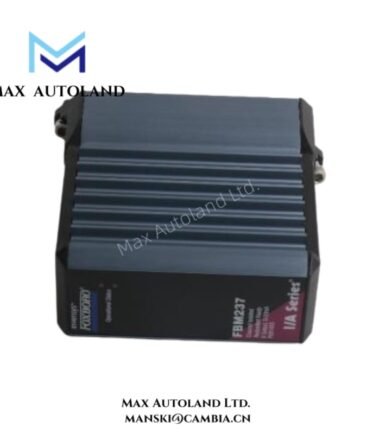

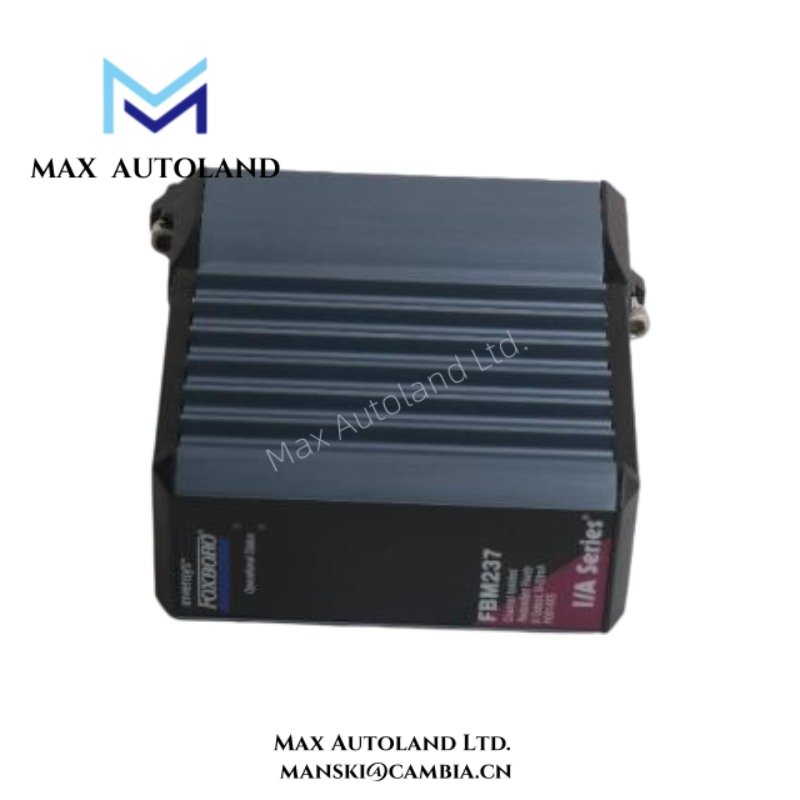

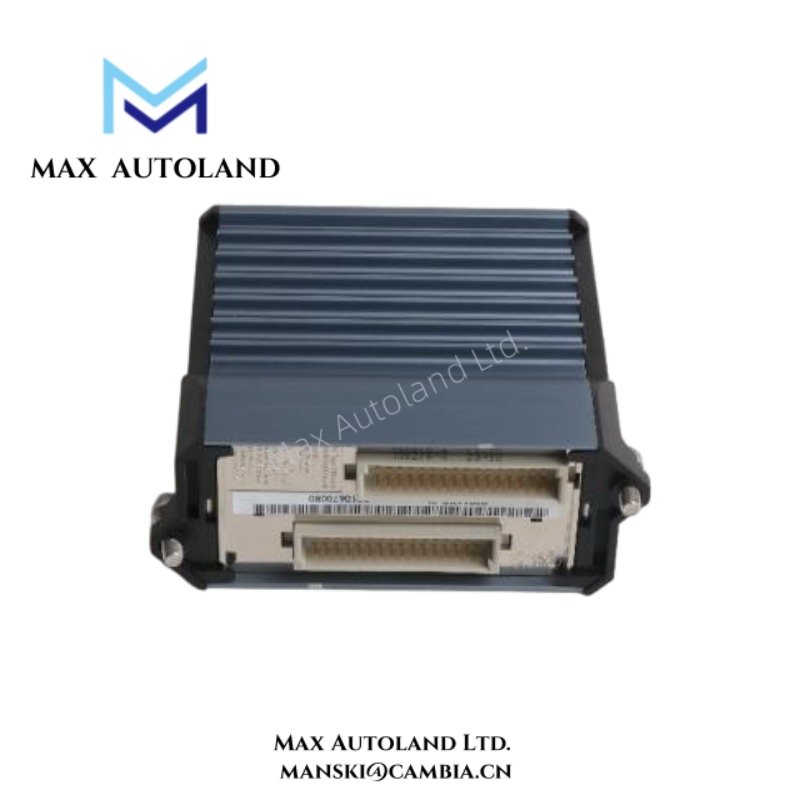

The FBM237 P0914XS from Foxboro delivers precise isolated output control for demanding industrial automation systems.
Moreover, the FBM237 P0914XS integrates seamlessly into the Foxboro I/A Series architecture and ensures stable signal transmission.
Additionally, the module supports multiple output channels and improves control accuracy across distributed control environments.
Therefore, engineers choose the FBM237 P0914XS for reliable signal isolation and consistent actuator control performance.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM237 P0914XS |
| Manufacturer | Foxboro (Schneider Electric) |
| Product Type | Isolated Output Module |
| Series | Foxboro I/A Series |
| Output Channels | 8 to 16 isolated output channels (configuration dependent) |
| Output Type | Discrete digital output |
| Output Voltage | 24 V DC nominal |
| Output Voltage Range | 20–32 V DC |
| Output Current | Up to 0.5 A per channel |
| Load Compatibility | Supports resistive and inductive loads |
| Channel Isolation | Optical isolation between channels and system |
| Isolation Voltage | Up to 1500 V AC isolation capability |
| Switching Type | Solid-state switching |
| Response Time | Fast switching response (<10 ms typical) |
| Power Supply | Powered via system backplane |
| Power Consumption | Typically less than 6 W |
| Energy Dissipation | Low thermal output for compact cabinet installations |
| Connector Type | Backplane connector with terminal assembly interface |
| Dimensions (H × W × D) | Approx. 200 mm × 120 mm × 60 mm |
| Weight | Approx. 0.9 kg |
| Mounting Method | DIN rail or panel mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| EMC Compliance | Meets IEC/EN 61000 industrial EMC standards |
| Vibration Resistance | Suitable for industrial vibration environments |
| Status Indicators | LED indicators for each output channel |
| Installation Environment | Industrial automation cabinets and distributed control systems |
FAQ
A1: Yes, the FBM237 P0914XS is brand new and original from the manufacturer.
Q2: Do you have the FBM237 P0914XS in stock?
A2: Yes, we keep the FBM237 P0914XS in stock and ready for immediate order processing.
Q3: How fast can you ship the FBM237 P0914XS?
A3: We ship the FBM237 P0914XS within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics carriers do you use?
A4: We usually ship the FBM237 P0914XS via DHL and other major international logistics providers.
Q5: What output current does the FBM237 P0914XS support?
A5: The FBM237 P0914XS supports up to 0.5 A per channel for industrial output control applications.
Q6: Do you support returns if there is a quality issue?
A6: Yes, we support returns of the FBM237 P0914XS within 30 days if any quality problem occurs.
